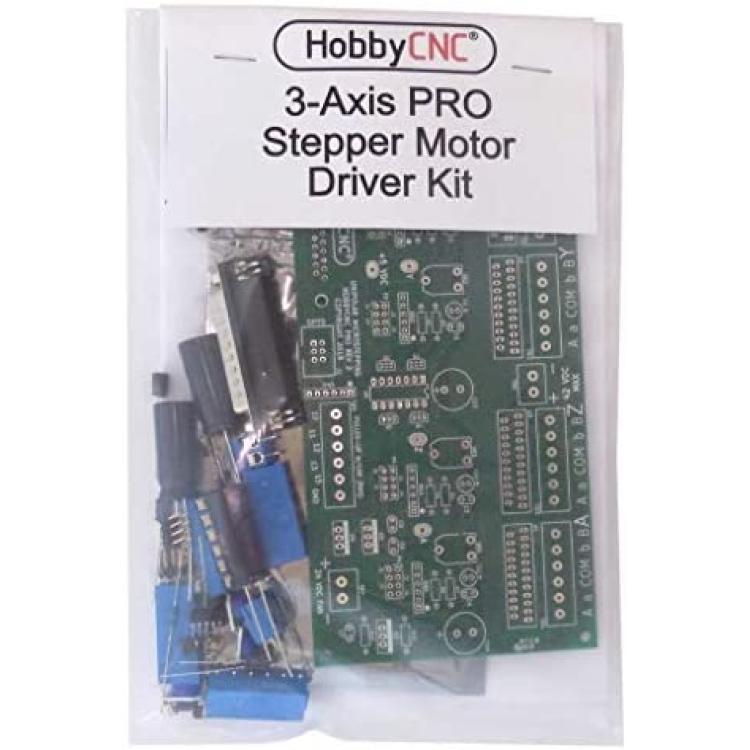

HobbyCNC PRO 3-Axis Stepper Motor Driver Kit
About this product
*3 Axis Unipolar Chopper control.
*42VDC maximum input voltage
*3.0 Amps Maximum per Phase, 500ma (.5A) minimum. Each axis individually adjustable throughout this range.
*3 Axis Unipolar Chopper control.
*42VDC maximum input voltage
Description

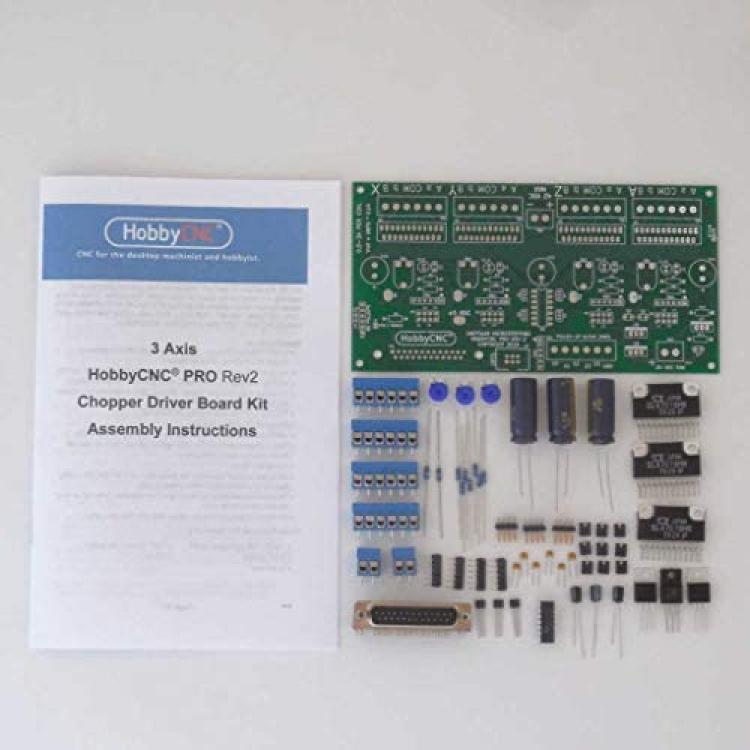

HobbyCNC PRO 3-Axis Stepper Motor Driver Kit

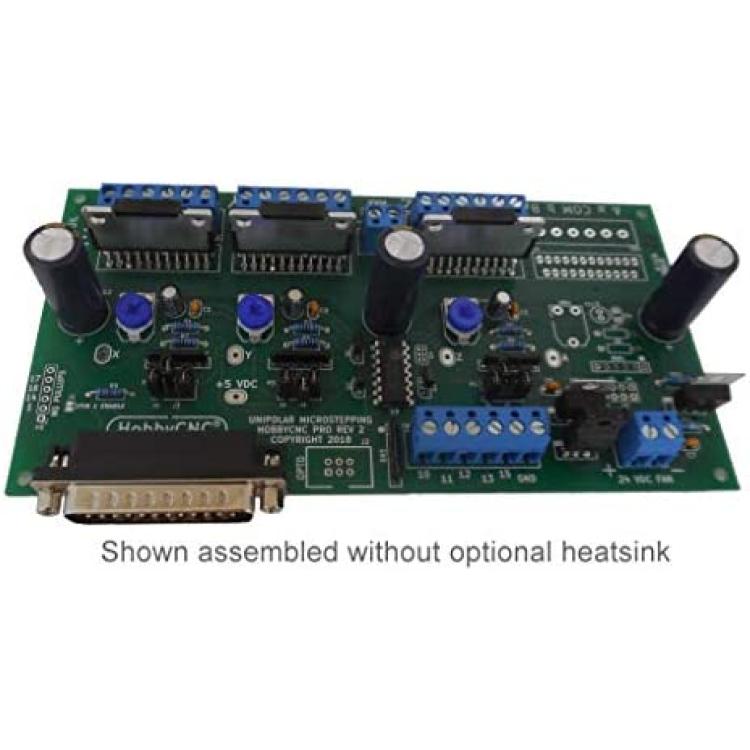

3 Axis Unipolar Chopper control.Individual OR simultaneous control of 2/4 Phase Stepper Motors.Accepts 5, 6, or 8 wire stepper motors only. 4 wire types are not usable.42VDC maximum input voltage, 12VDC minimum input voltage. 24VDC Minimum Recommended Voltage. Â Power supplies above 42VDC are not recommended.3.0 Amps Maximum per Phase, 500ma (.5A) minimum. Each axis adjustable throughout this range.1/1, 1/2, 1/4, 1/8, and 1/16 Microstepping.Step and Direction Control.Idle Current Reduction (option) via pin 1 enableBuilt In Protection Circuit to help against blown chips on stepper motor short or open connections.3.7" by 6.8" double sided with top silkscreen and thru plated holes and lead free solder PCB. (RoHS compliant).Power On Reset.On board voltage regulation for 5-volt logic with 24VDC cooling fan from motor power supply (fan not included)On board connections for home and limit switches with 10K pullup resistor provided to each. No need for a separate "break out" board.Minimum of components to make assembly fast and easy!Works with Step and Direction software such as LinuxCNC, DeskNC, TurboCNC, Mach3, etcRoHS CompliantHeatsink recommended for motor current over 2 amps (not included).Frequency Asked Questions
