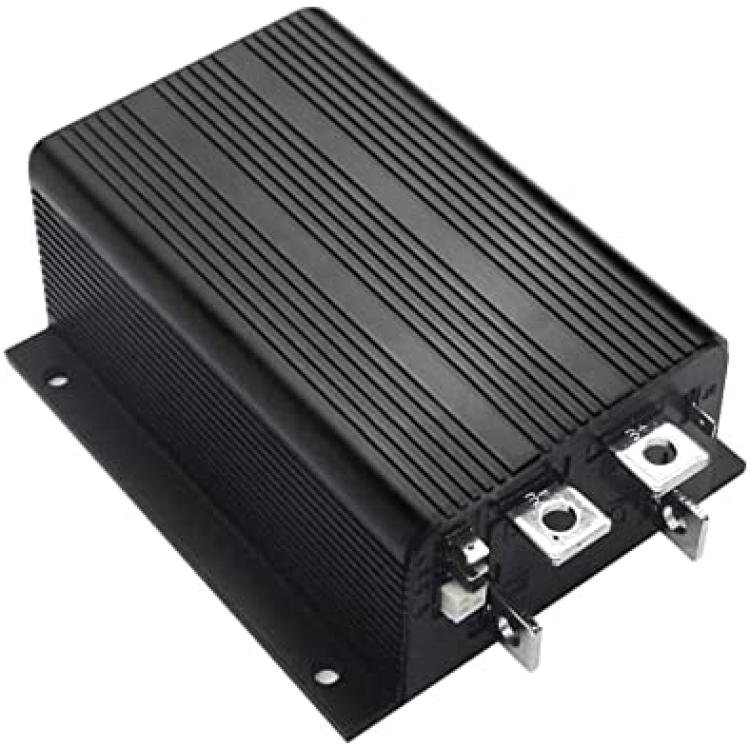

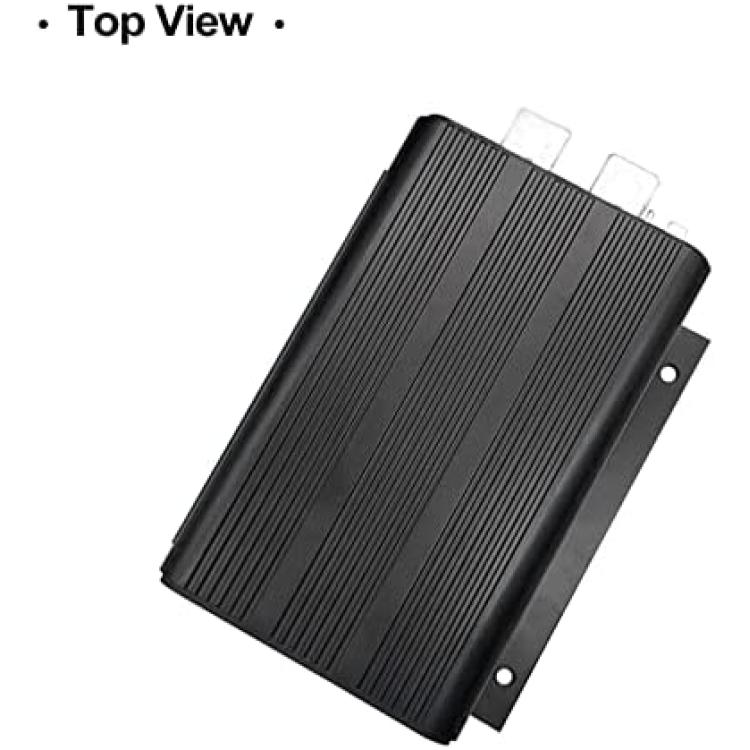

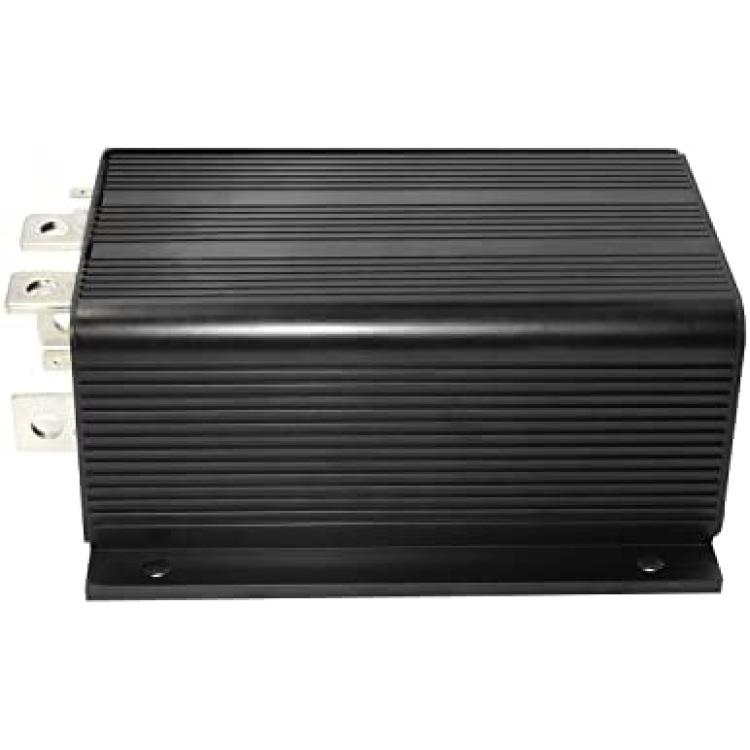

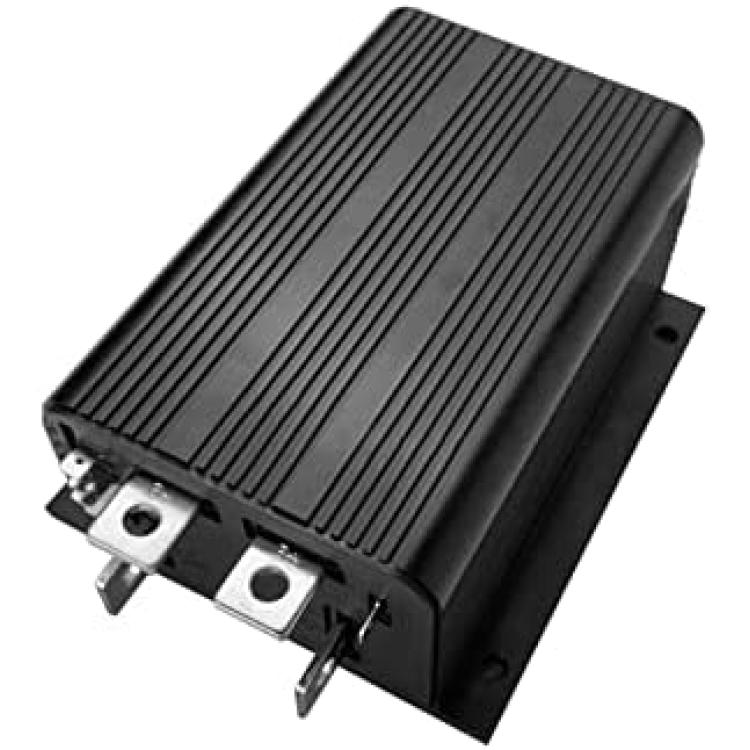

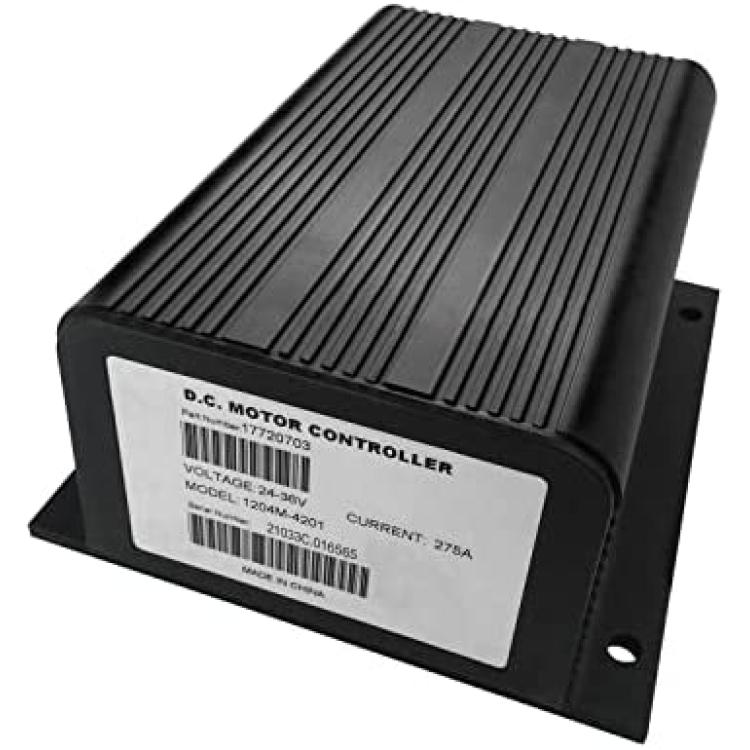

1204-027 Programmable DC Series Motor Controller, 1204M-4201 24V-36V 275Amp Compatible with EZGO Golf Cart Replace Curtis

Key Features:

High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.

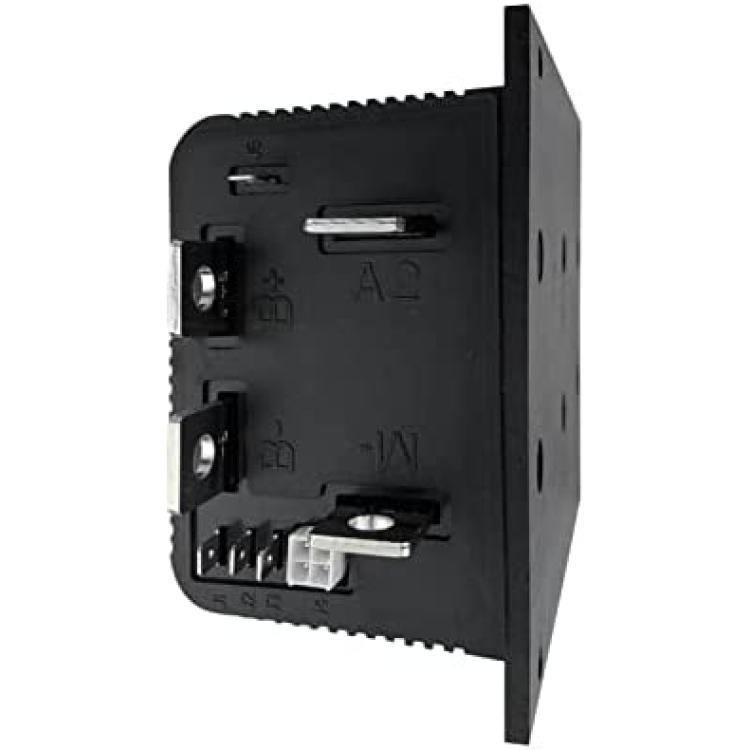

Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.

Compatible with either a two-wire potentiometer or a voltage throttle.

Throttle fault protection circuitry disables controller if throttle wires become open.

High pedal disable feature prevents controller operation if key is turned on while throttle is applied.

Plug braking diode internal to controller.

Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback;

no sudden loss of power under any thermal conditions.

Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.

Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.



Technical Parameters:

Golf: G432H

replace 1204-027 Controller. 36V / 275A / 0-5k?

By default, we will the controller of setting of 36V / 275A / 0-5k?.

Norminal Battery Voltage (Volts): 36V

2 Minute Current Rating (amps): 275

Operating ambient temperature range: -40°C to 50°C

Storage ambient temperature range: -40°C to 85°C

Package environmental rating: ISTA 2A; electronics sealed to IP54



Package Includes:

1 x 1204-027 Programmable DC Series Motor Controller
