36V 500A 0-5KΩ Golf Carts Controller Replace Curtis 1205 1204 Motor Controller Compatible with EZGO Club Car 1205-117

36V 500A 0-5KΩ Golf Carts Controller Replace Curtis 1205 1204 Motor Controller Compatible with EZGO Club Car 1205-117

Name: 36V 500A 0-5KΩ Golf Carts Controller Replace Curtis 1205 1204 Motor Controller Compatible with EZGO Club Car 1205-117
Brand: Partayoza
SKU: MM29891
Availability: InStock

Brand: Partayoza
Product Code: MM29891
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Replaces Part Number : For Curtis 1205 / For Curtis 1204 / 1205-117 / 1205-101 / 1205-112 / 1205-113 / 1205-121 / 1205-103, Made According to Original Products, Quality is Guaranteed, 100% Tested Before Shipping.

*Applicable Models : For use with Club Car DS (Years 1991-Up)

*Please Refer to Your Own Part and Make Sure Your Part is 36V, 500A, 0-5KΩ , By default, we will the controller of setting of 36V , 500A , 0-5KΩ

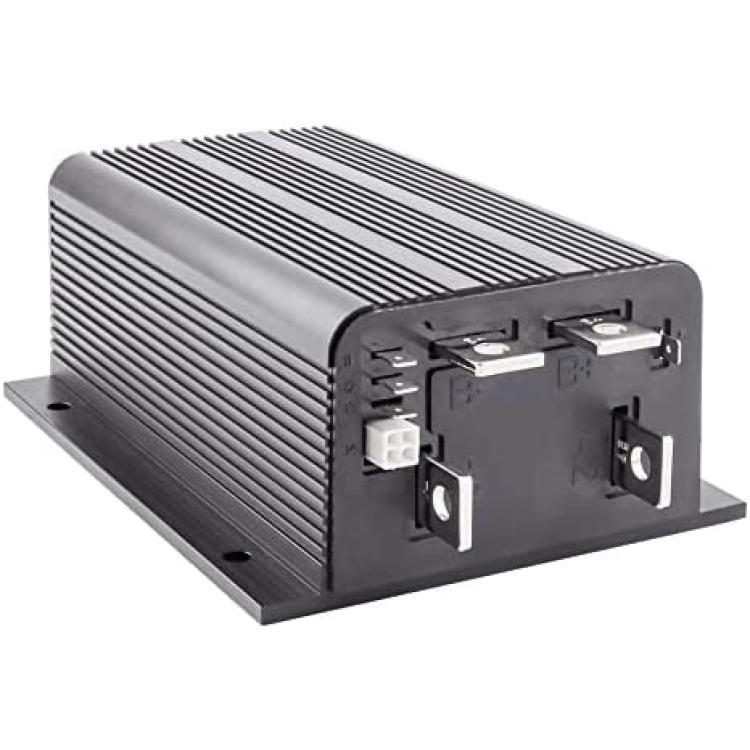

*Replace Curtis (1205) 500 amp, 36-48 volt long body controller with four buss bars is pre-set for 5K-0 throttle. It can be adjusted with a hand held Curtis programmer #1313-3301 for use with 8 other throttle inputs. Many other parameters such as acceleration, HPD, voltage, plugging and more are also adjustable.

*1 Year Warranty : We Test Each Item and 100% Ensure That Before We Ship, Before and After Sales, We Will Provide Warranty Service For Damaged Products, True Worry-Free Shopping Experience.

Description

Norminal Battery Voltage (Volts): 36V (default setting) or 48V1 Minute Current Rating (amps): 5005 Minute Current Rating (amps): 3501 Hour Current Rating (amps): 200Plug Braking (A2 Busbar): YesPWM operating frequency: 15.6 kHzLogic input current: < 2 mAStatus LED output current (max.): < 2 mATen throttle types can be used with these controllers:Type 0: 2-wire potentiometer, 0–5k? Type 1: 2-wire potentiometer, 5k?–0 Type 2: single-ended 0–5V input Type 3: 2-wire potentiometer, 4.6k?–0 Type 4: 2-wire potentiometer, 5.5k?–0 Type 5: 2-wire potentiometer, 1k?–0 Type 6: ITS input Type 7: single-ended 6.3–10.6 V input Type 8: single-ended 6–12 V input Type 9: single-ended 3-wire potentiometer, 0–5k?

Tags: golf cart controller, Curtis 1205 controller, 36V 500A controller, EZGO Club Car controller, Club Car DS controller, motor controller, golf cart parts, 0-5KΩ, 1205-117, 1205-101, 1205-112, 1205-113, 1205-121, 36V motor controller, 500A motor controller
