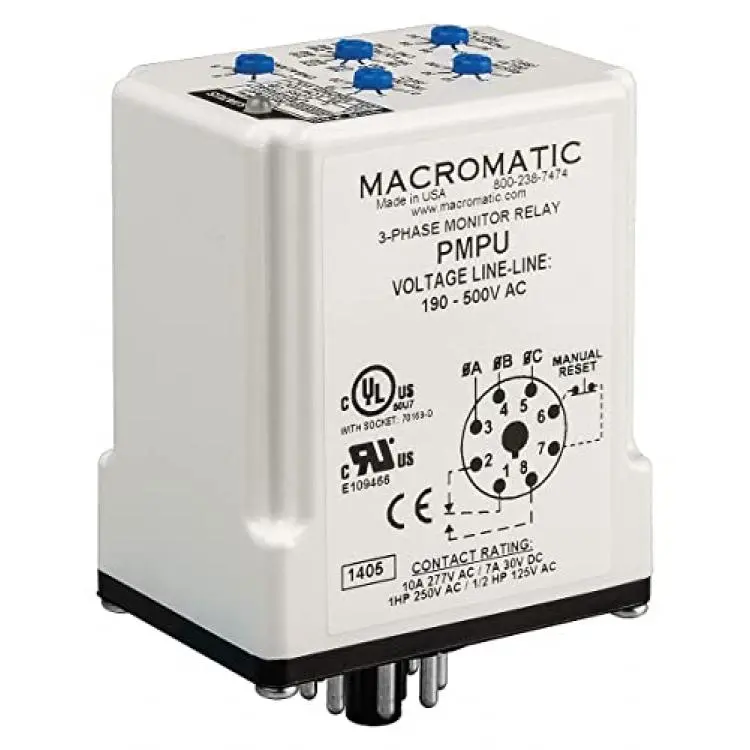

Macromatic PMPU 3 Phase Monitor Relay, Spdt, 500Vac, 8 Pin
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Contact Form: SPDT Number of Contacts: 1 Trip Delay: Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec. Power Rating: 3 Pins: 8 Input Voltage: 190 to 500VAC Drop-Out Range: 75% to 95% Base Type: Octal Pick Up Range: 190 to 500VAC
*Phase: 3 Item: Phase Monitor Relay Voltage Unbalance: 2 to 10 Contact Amp Rating (Resistive): 10 Socket: 5X852 Country of Origin (subject to change): United States
*Price For: Each Contact Form: SPDT Number of Contacts: 1 Trip Delay: Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec. Power Rating: 3 Pins: 8 Input Voltage: 190 to 500VAC Drop-Out Range: 75% to 95% Base Type: Octal Pick Up Range: 190 to 500VAC
*Phase: 3 Item: Phase Monitor Relay Voltage Unbalance: 2 to 10 Contact Amp Rating (Resistive): 10 Socket: 5X852 Country of Origin (subject to change): United States
*Product Dimensions : 2.6 x 2 x 4.2 inches; 1.02 Pounds
Description
' Phase Monitor Relay, Input Voltage 190 to 500VAC, Contact Amp Rating (Resistive) 10, Contact Form SPDT, 3 Phase, Pick Up Range 190 to 500VAC, Drop-Out Range 75 Percent to 95 Percent, Trip Delay Power Up 1-300 Sec, Phase Loss & Reversal 100ms, Phase Unbalance 2 Sec, Undervoltage 0.1-20 Sec, Voltage Unbalance 2 to 10, Base Type Octal, Number of Contacts 1, Pins 8, Power Rating 3, Socket G1753902 '
