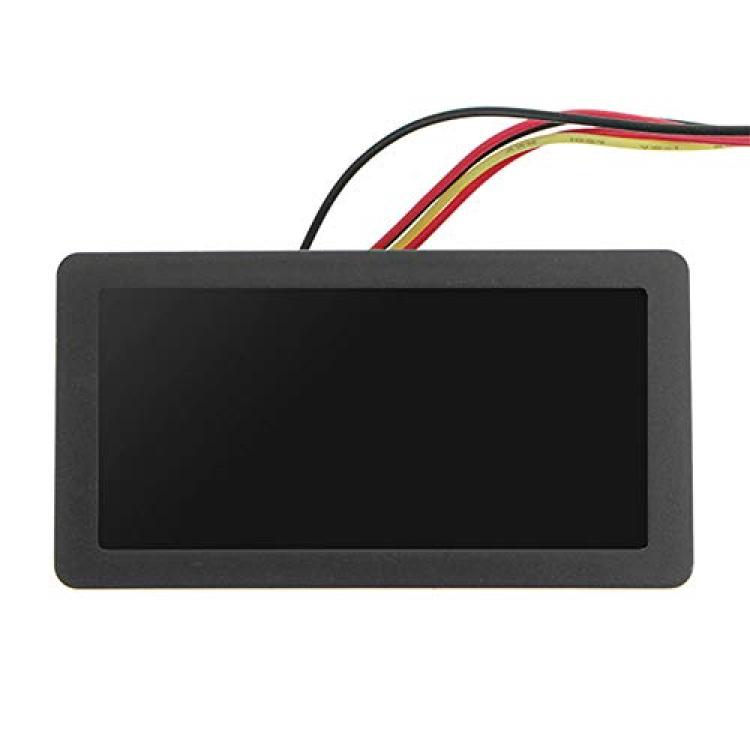

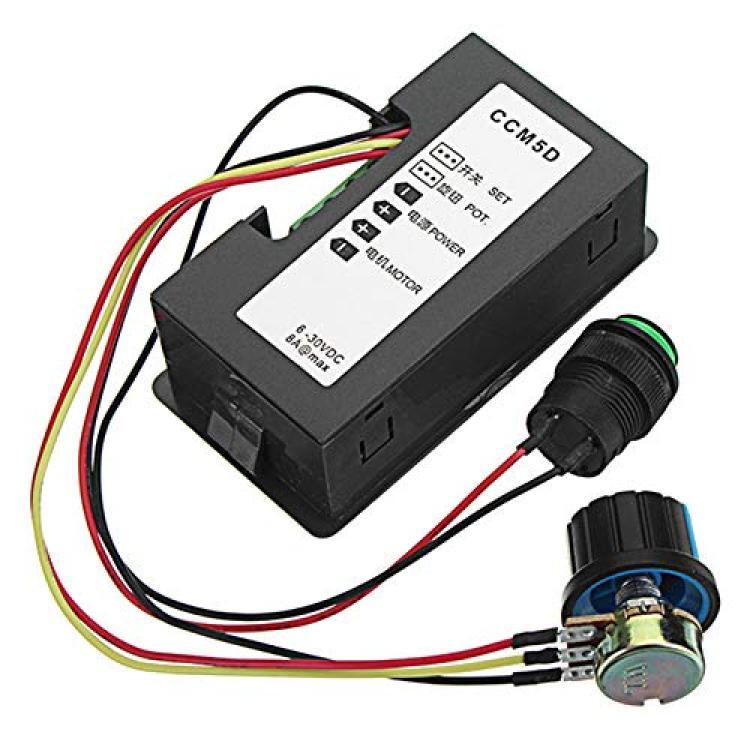

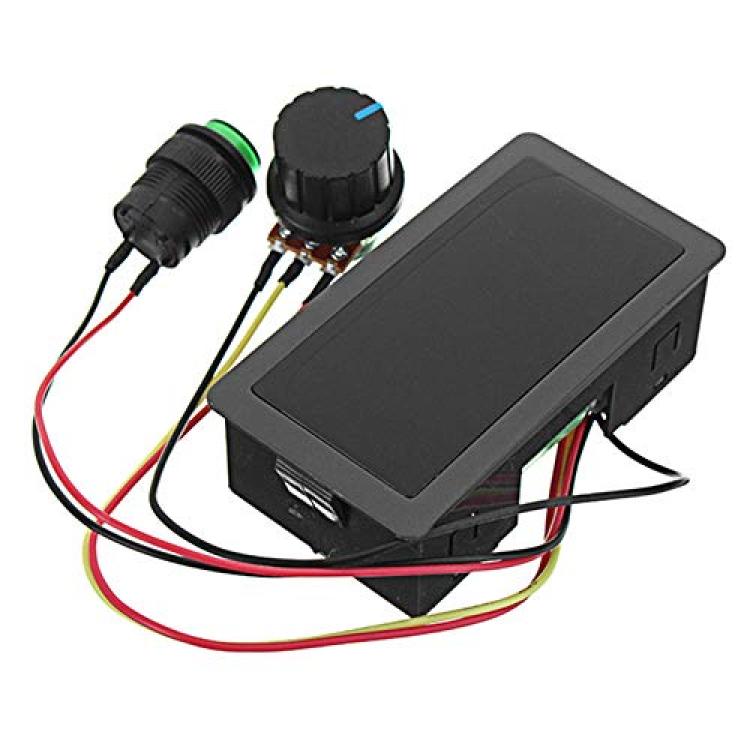

1pc New CCM5D DC 6V-30V 6A DC Motor Speed Controller LED Display PWM Variable Speed Regulator with Shell
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
*Test before shipping.
*USA and Canada Estimated Delivery Time: 6-24 days(trackable),----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $150, we will use Expedited Shipping service for free.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*We are a professional Electronic Components and module manufacturer. You can search keywords in our store. I believe you can find the modules you need.
Description
Features:
• CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
• Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
• The display range of 3-digit LED display is “000”-“100”. ( For example, displayed “60”, it means that the PWM output cycle is 60% )
• Input supply voltage range: DC 6V-30V
• Rated current: 6A, Max 8A
• PWM frequency: 16kHz
• Adjustable speed range: 0%-100%.

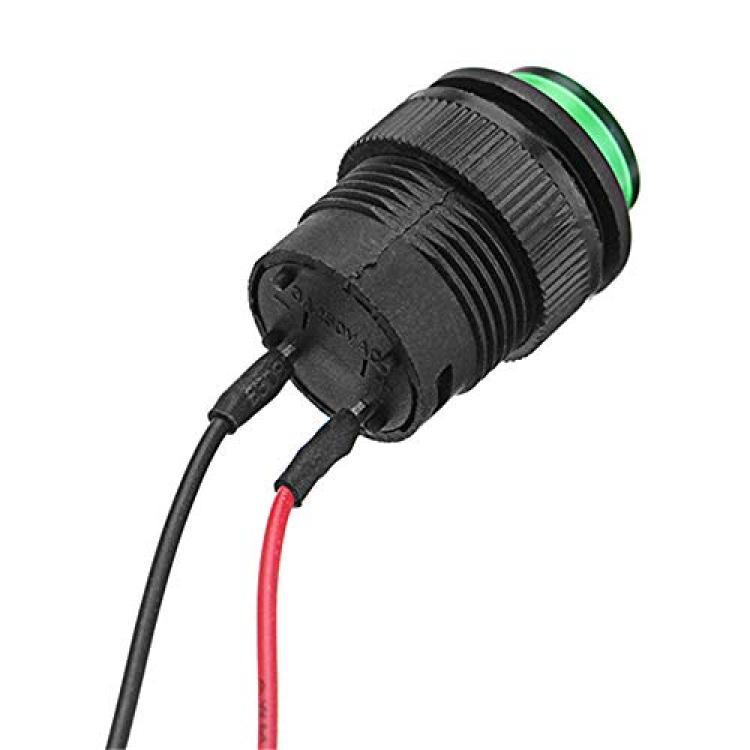

• Incorporate a push key. Push closed, and then push open.
• Item size: 79 x 42 x 24mm
• Potentiometer: resistance B100K; cable length 20cm; open hole distance 8mm
Operating instruction:
WARNING:
Before you attempting to wire the controller, make sure power is off.
DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILLDAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.

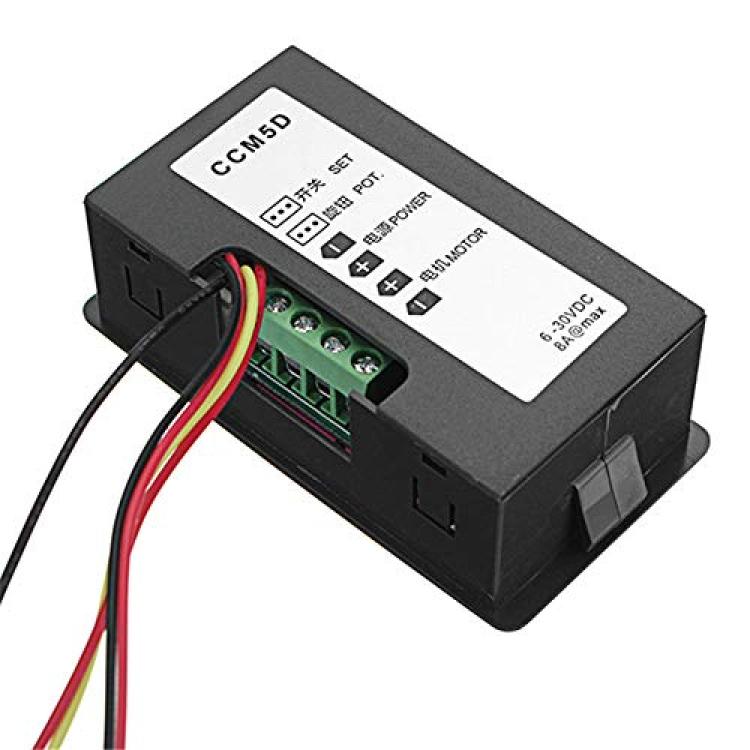

1. Connect wires refer to the “wiring diagram”.
2. Turn on the power, and adjust the potentiometer.
3. The LED display displays the PWM output cycle.
4. Push the key, the controller closed, push it again, the controller open.
Package included:
1 x DC motor speed controller
