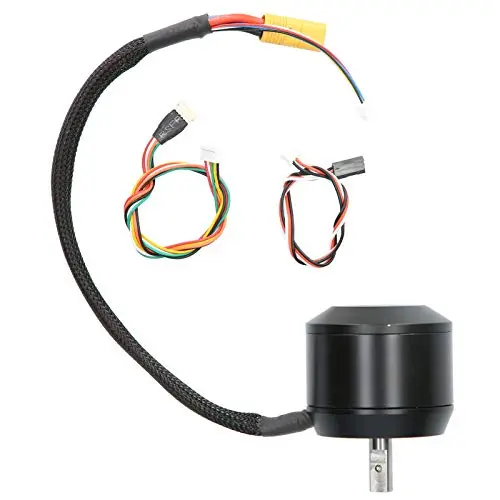

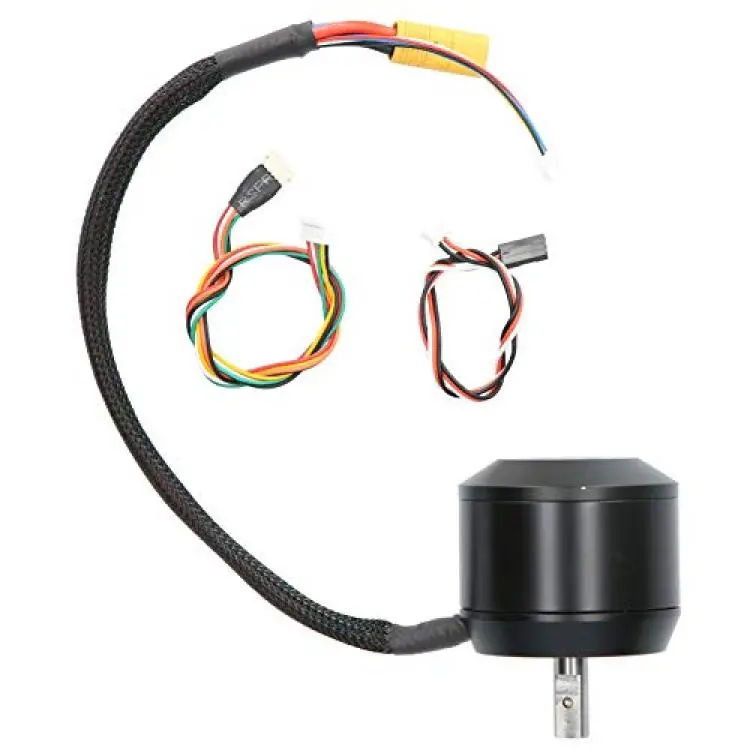

3-Phase Motor Brushless DC Motor Speed Controller for DIY Remote Control Car DC36V H6355 160KV 1620W
Availability: Pre-Order, Inquiry Price
About this product
*Strong power, long endurance, high speed operation, high temperature resistance, high power, high torsion.
*The use of multistrand windings has better heat dissipation and avoids skin effect. Singlestrand winding will cause skin effect and generate heat, which is easy to be inefficient.
*It drives super smooth, almost no noise, safe to use.

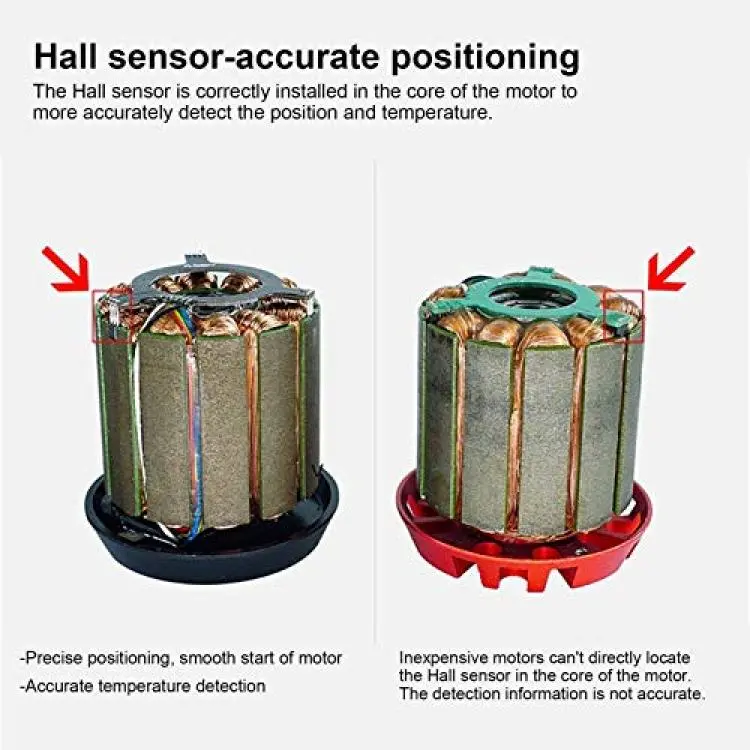

*Hall plate tightly fixed on the stator, it is more firm and not easy to fall off, it helps the motor to run more stably.Super long Hall wire, more heatresistant, with knitted sleeves, more refined details.
*We strive to provide you with high quality and convenient service. You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply
Description
Specification:
Condition: 100% Brand New
Item Type: Motor
Material: Silicone Wire + Japanese Steel + Red Copper
Color: As shown in the picture
Model: H6355
Maximum Power: 1620W
Maximum Current: 45A
Maximum Voltage: 12S
Maximum Torsion: 1.9N.m
Recommended ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

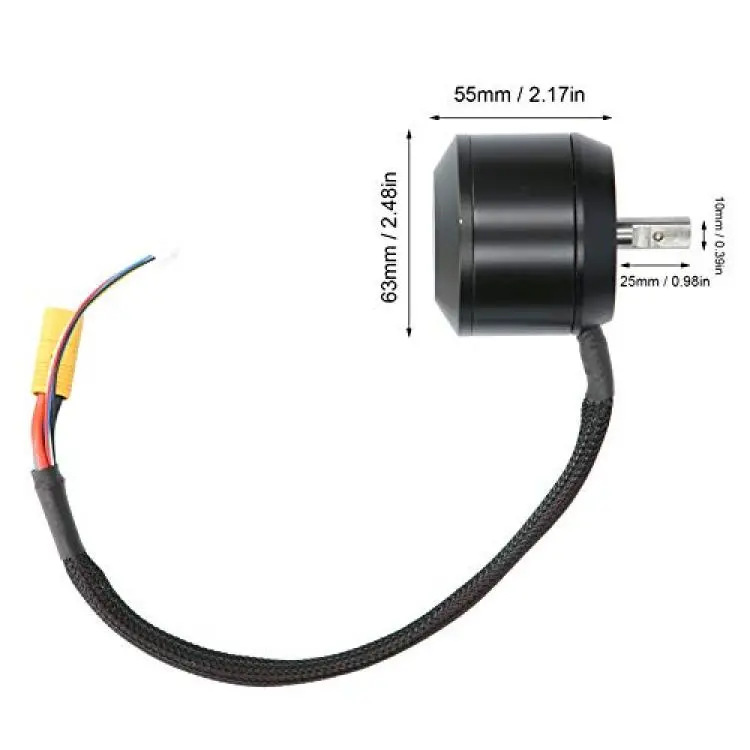

Motor Length: Approx. 55mm / 2.17in
Motor Diameter: Approx.63mm / 2.48in
Shaft: Approx.10x25mm / 0.39x0.98in(D x L)
Motor Wire: 300mm / 11.81in silicone 14AWG wire with MT60 male connector.
Wire Configuration:
Blue = U
White = V
Yellow = W
Brushless DC motor
Number of Poles: 14

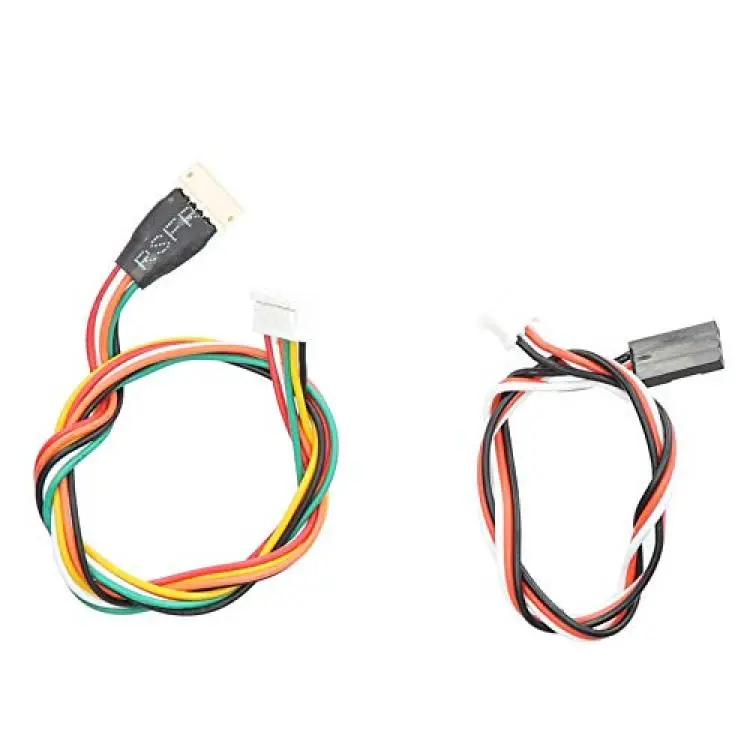

Sensor Line: Standard RC sensor line HY2.0-5P connector
Package List:
1 x Motor
1 x Wire
Note:
1. Please allow 1-2cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
