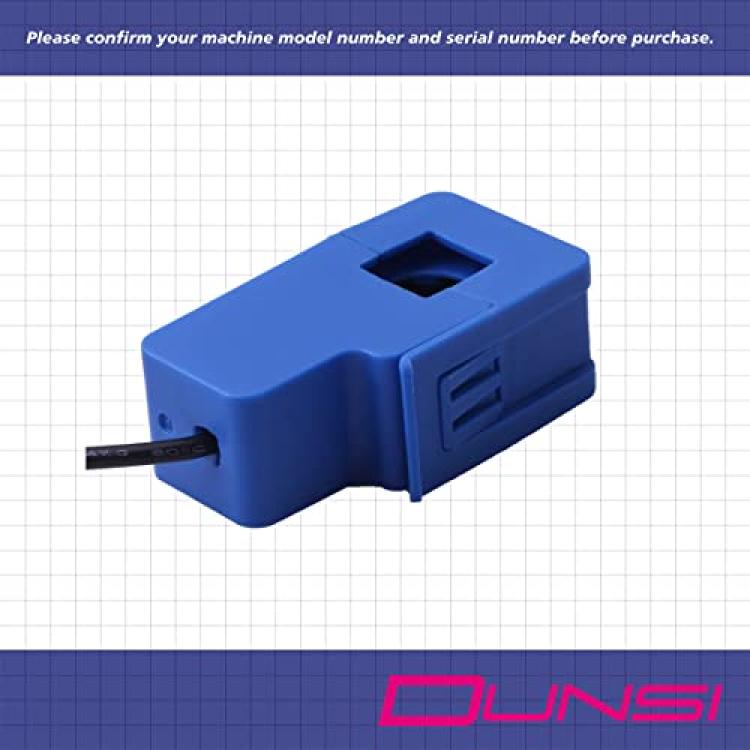

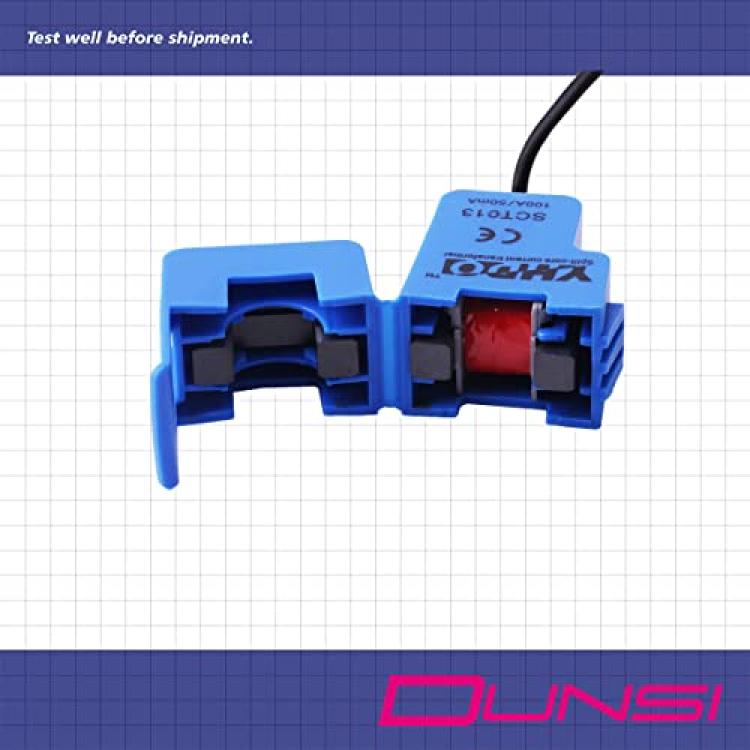

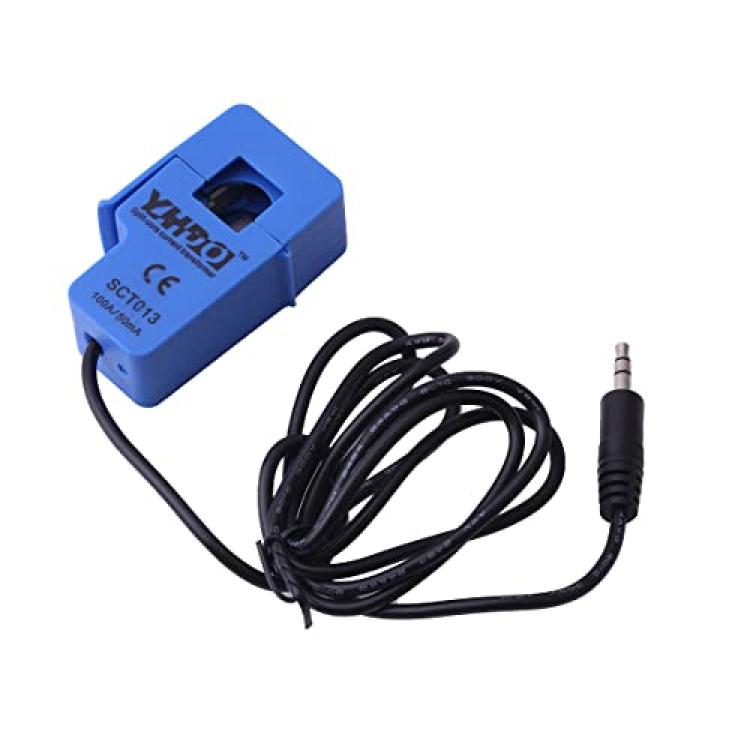

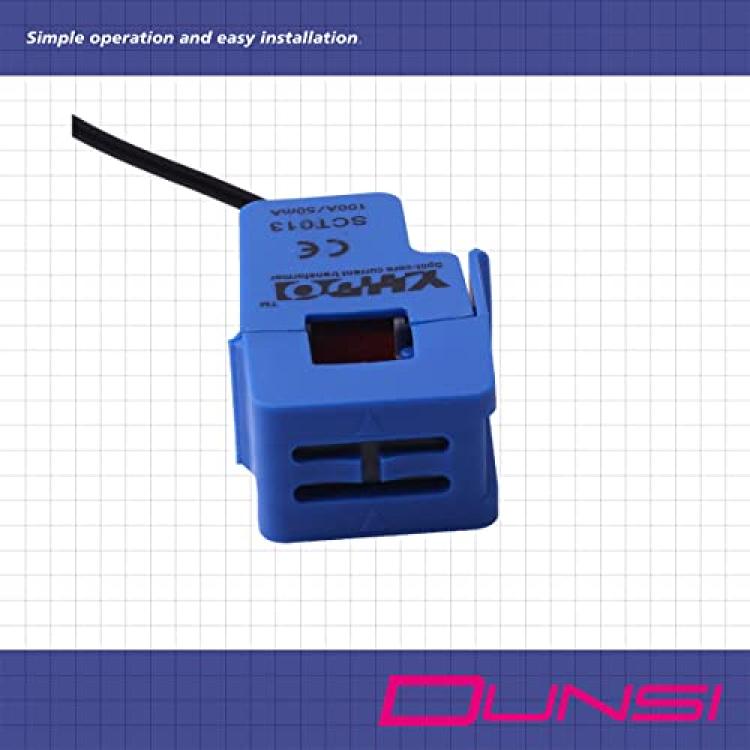

DUNSI SCT-013-000 Split Core Current Transformer Sensor Non-invasive SCT013000 AC Current Split Core Transformer Sensor SCT-013-000 100A/50mA
Availability: Pre-Order, Inquiry Price
About this product
*【HIGH QUALITY】DUNSI premium SCT-013-000 AC Current Transformer Sensor is made of high quality Ferrite material which can use for a long time.This split core current transformer is particularly suitable for DIY use and it works well with arduino and raspberry pi.
*【MAIN SPECIFICATION】Opening size: 13mm×13mm, fully compatible with most similar products; working temperature: -25℃～+70℃;The lead length is 1.5 meters, the standard Φ3.5 three-core plug output.
*【OPTIMAL PERFORMANCE】DUNSI premium upgrade SCT-013-000 Current Transformer Sensor is used for current measuring, monitoring and protection of AC motors, lighting equipment, air compressors, etc.
*【OPTIMAL RELIABILITY】DUNSI SCT-013-000 AC Current Transformer Sensor has two forms of output current, voltage (voltage output built-in the sampling resistor).Non-linearity ±3% (10%～120% rated input current).
*【PACKAGE & SERVICE】Package Include: 1Pcs x SCT-013-000 Split Core Current Transformer Sensor .Any question Pls fell free to contact us, we will reply you within 24H.And we offer a 12 month warranty.
Description
Features?
100% brand new
Model: SCT-013-000
Type: Non-invasive current transformer
Core Material: Ferrite
Input Current: 0~100A AC
Output Mode: 0~50mA
Opening size:13mmx13mm
Non-linearity 3%(10%-120% rated input current)
1.5m leading wire,
?3.5 3 core plug standard output.
Two form of output current, voltage (voltage output built-in the sampling resistor).
Mechanical strength: opening and closing times, no less than 1000 times (20 C
Safety indicators: Dielectric strength 6000V AC/1min.
Meet UL94-V0 flame retardant properties
Operating Temperature: -25 C ~ +70 C
Applications:
for AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection.
Package Include:
1Pcs X SCT-013-000 Split Core AC Current Transformer Sensor.
