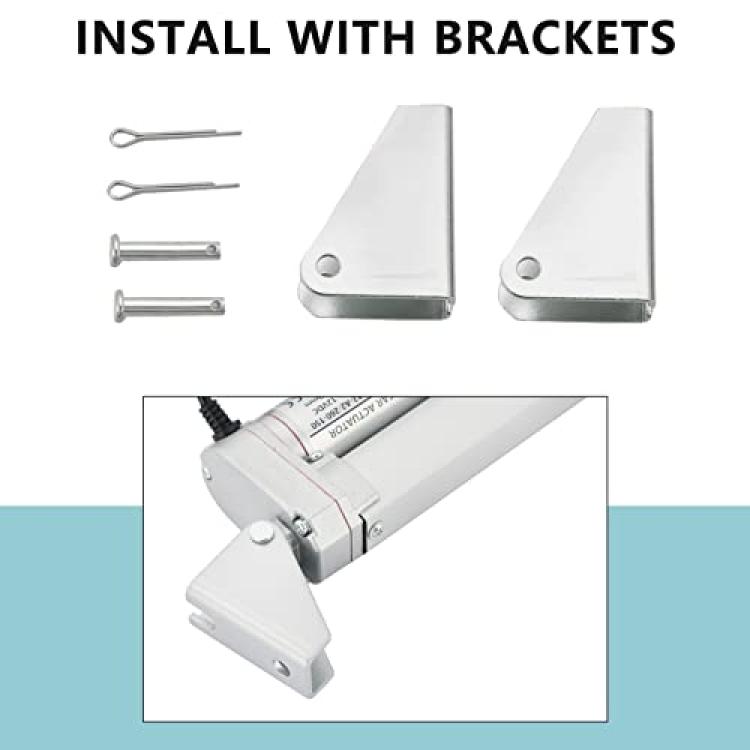

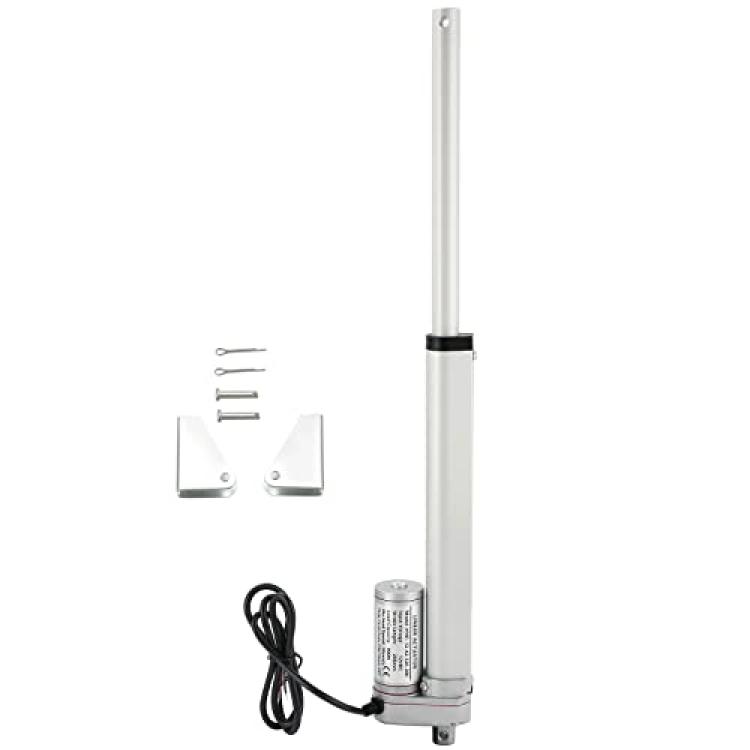

NATGAI DC12V 8inch Stroke Linear Actuator with Mounting Bracket 900N(225lbs) Maximum Lift 10mm/s for Recliner TV Table Lift Massage Bed Electric Sofa Linear Actuator
Availability: Pre-Order, Inquiry Price
About this product
*【Specifications】 Stroke length = 320mm(8"); Retracted length = 320mm(12.8"); Extended Length= 520mm(20.8); Travel speed = 0.39 inches/sec (10 mm/s);DC12V; Maximum current draw = 3Amps; Maximum Load = 225lbs(900N).

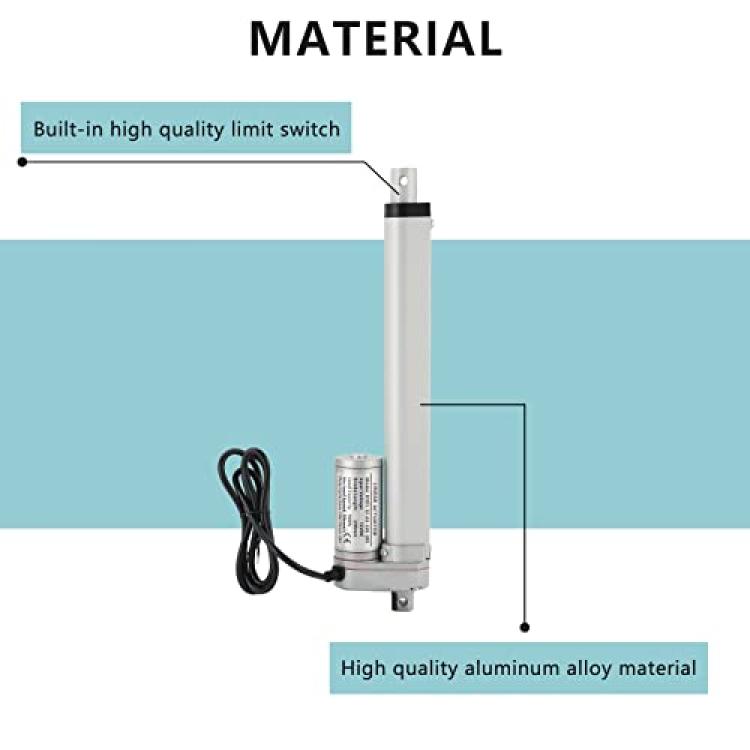

*【Material】 - The alloy-steel shaft accompanied by metal gears allows it to push and pull up to 225lbs(900N).

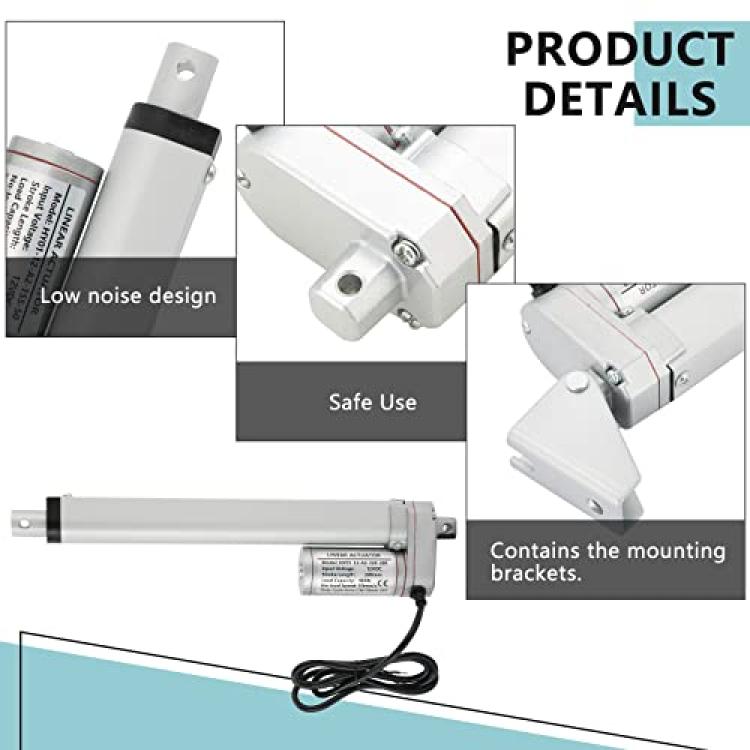

*【Feature】 - Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
*【Low Noise】 - Move at 10mm/s, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke.
*【Applicable】Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
