Erfo DC 12V 10inch Stroke Linear Actuator with Mounting Bracket,Heavy Duty Linear Electric Actuator,Stroke Electric Actuators for Recliner TV Table Lift
Availability: Pre-Order, Inquiry Price
About this product

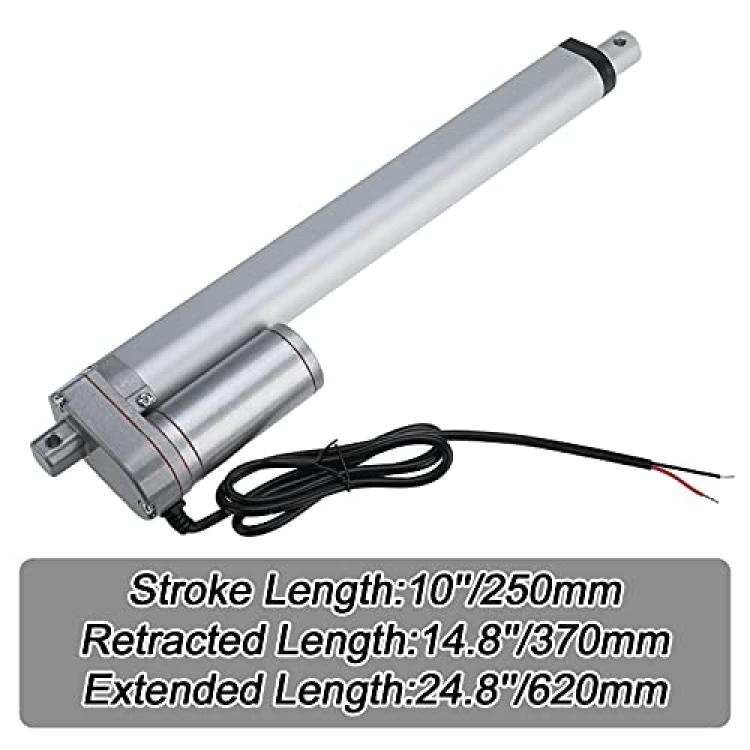

*【Specification】: Stroke length = 250mm(10"); Retracted length = 370mm(14.8"); Extended Length= 620mm(24.8"); Travel speed = 10 mm/s; Maximum Load = 225lbs(900N).
*【Quiet and comfortable】:Linear actuator moves at a speed of 10mm/s, and the sound of the actuator is lower than 50db when it is working, which is suitable for hospitals and massages.

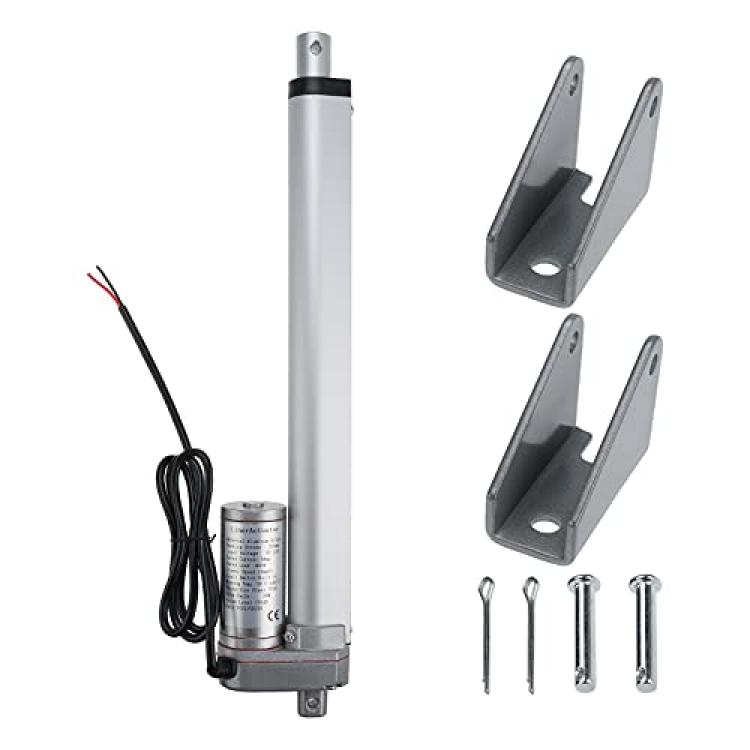

*【Protection】:IP54 level protection design. Stroke electric actuators built-in limit switch. Easy to install, including all accessories.
*【High-quality material】:Linear electric actuator is made of high-quality aluminum alloy material, which has good carrying capacity and durability.
*【Wide range of applications】: Linear actuators can be applied to TV lifting tables, massage tables, electric beds, medical chairs, electric equipment, micro equipment, electric sofas, camera stands, cameras, etc.
Description

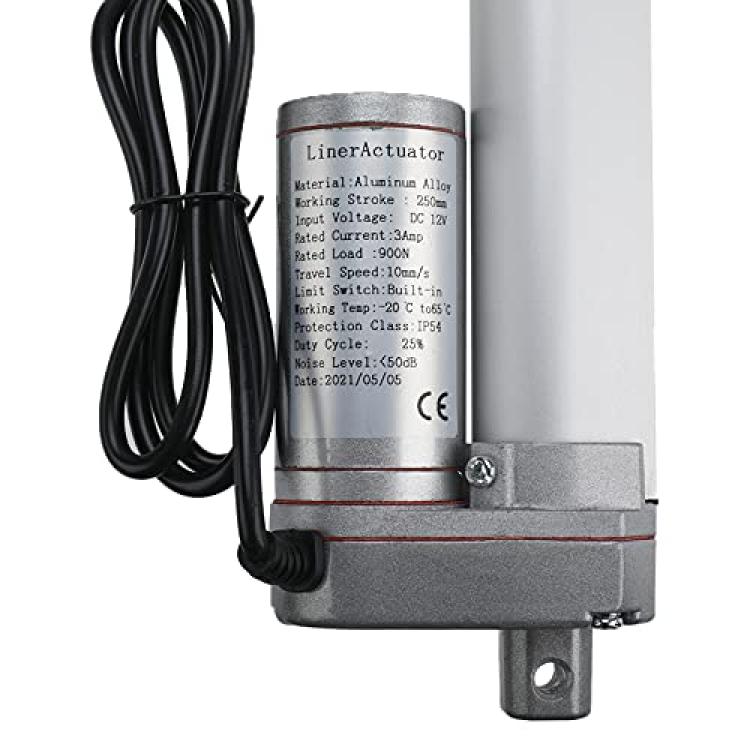

Features: There is a protection switch at both ends of the product. When the telescopic rod moves to the bottom of either end, it will automatically protect and disconnect the power supply. The expansion and contraction of the product is controlled by the positive and negative poles of the motor (that is, the positive pole is extended or the negative pole is retracted), and the direction of expansion and contraction can be changed when the positive and negative connections are switched. The product is linearly extended and retracted by a motor, and the rod handle will only extend and not rotate. The inside of the product is designed by high-precision metal gears, with low noise and long service life.The product has a wide range of applications such as: TV lifting tables, lifting frames, massage chairs, medical beds or chairs, automobiles, automation equipment, electric sofas, smart homes, etc. Specifications: Color: Silver Material: Aluminum Alloy Input Voltage: DC 12V Stroke length: 250mm(10) Retracted length: 370mm(14.8) Extended Length: 620mm(24.8) Rated Load: 900N Travel Speed:10mm/s IP Rating: IP54 Noise Level: Current: 3Amp Limit Switch: Built-in Working Temperature: -20 Degree C to 65 Degree C How To Install: 1. Prepare to connect the two wires of the actuator to the 12 volt battery. 2.Connect the blue wire to the positive pole and the gray wire to the negative pole to extend the actuator. To retract it, simply reverse the terminal connection. 3. Or you can prepare a reverse polarity relay or switch for the actuator (not included). When you want the actuator to extend and retract, just press the switch. 4. When the power is turned off, your actuator will maintain its position. It will stop automatically when it reaches the end point. 5. The limit switch is pre-installed in the actuator and cannot be adjusted.
