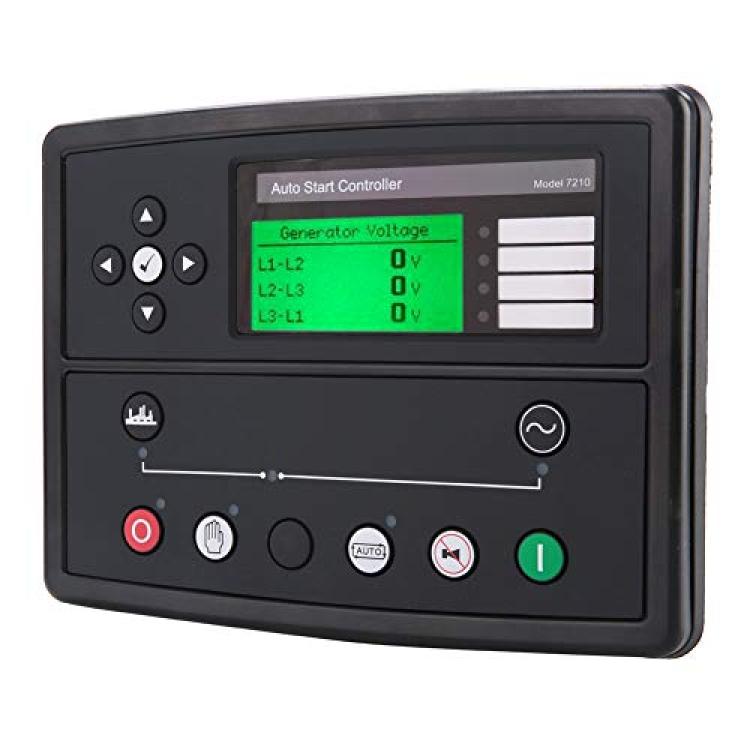

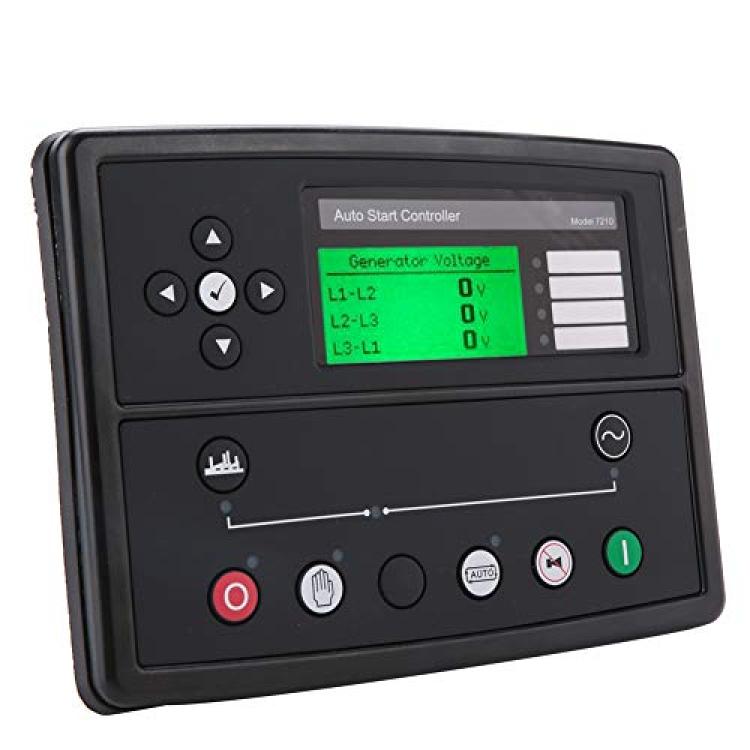

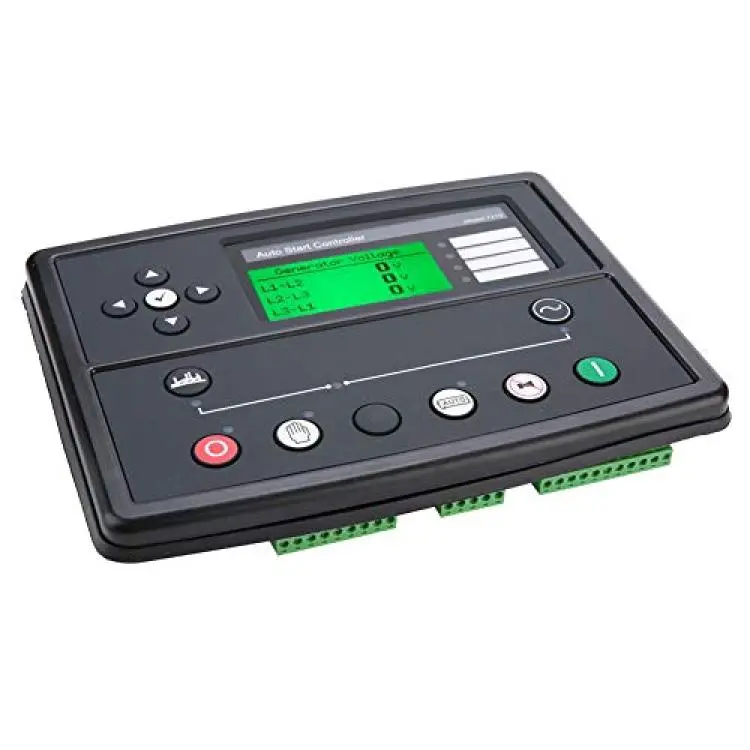

Generator Controller, DSE7210 Plastic Deep Sea Electronic Generator Control Panel Controller with LCD Display - 3 Phase Generator Sensing, Power Monitoring
Availability: Pre-Order, Inquiry Price
About this product
*【EXCELLENT GENERATOR CONTROLLER】- Level 4 CAN engine support. True double standby reciprocal with load balancing timer.
*【FUNCTION】- Power monitoring (kW h, kV Ar, kV Ah, kV Ar h); Configurable inputs/outputs (6/8); CAN and magnetic pick-up detection; Monitoring fuel consumption and low-level alarms.
*【LCD DISPLAY】- With large backlit LCD display, detection of the triphase generator.
*【LANGUAGE SETTINGS】- Configurable display languages.
*【SERVICE】 - If you have any questions or need any suggestions about the products we have sold, please feel free to contact us, we will provide you with quality after-sales service.
Description
Features:

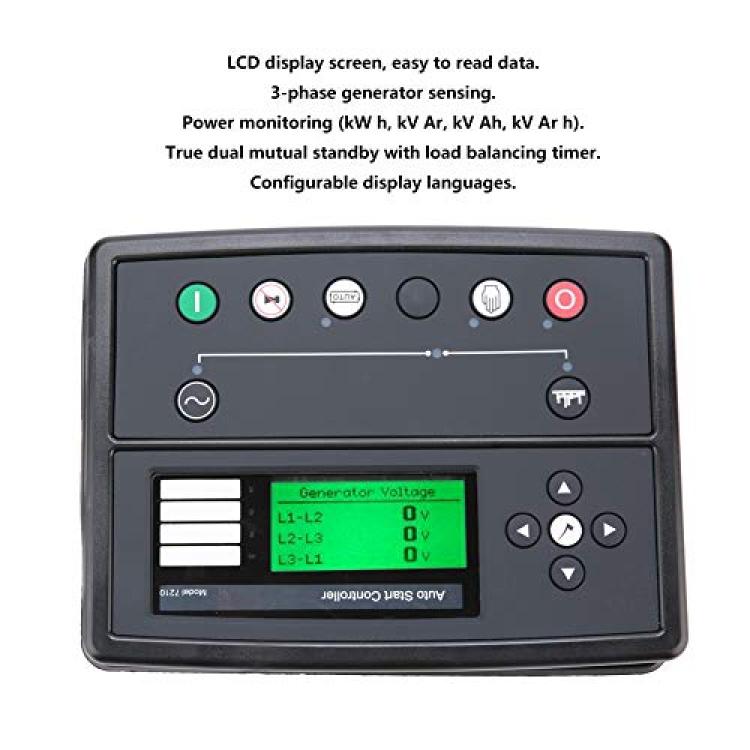

Large back-lit text LCD display. 3-phase generator sensing. Power monitoring (kW h, kV Ar, kV Ah, kV Ar h). Configurable inputs/outputs (6/8).CAN and magnetic pick-up sensing. Fuel usage monitor and low level alarms. Tier 4 CAN engine support.True dual mutual standby with load balancing timer. Configurable display languages.
Specification:
Material: Plastic
Weight: 926g/32.7oz
Model: DSE7210
Output:
Power supply voltage output A (fuel) : 15 A DC
Power supply voltage output B (start) : 15 A DC
Output C&D: 8 A 250 V (no voltage)
Auxiliary output under the power supply voltage: E, F, G, H 2 A direct current
Generator:
Voltage range: 15 V-333 V AC (L-N)
Frequency range: 3.5 Hz to 75 Hz
Magnetic pickup:
Voltage range: +/- 0.5V to 70V
Frequency range: 10000 Hz (maximum)
Package List:

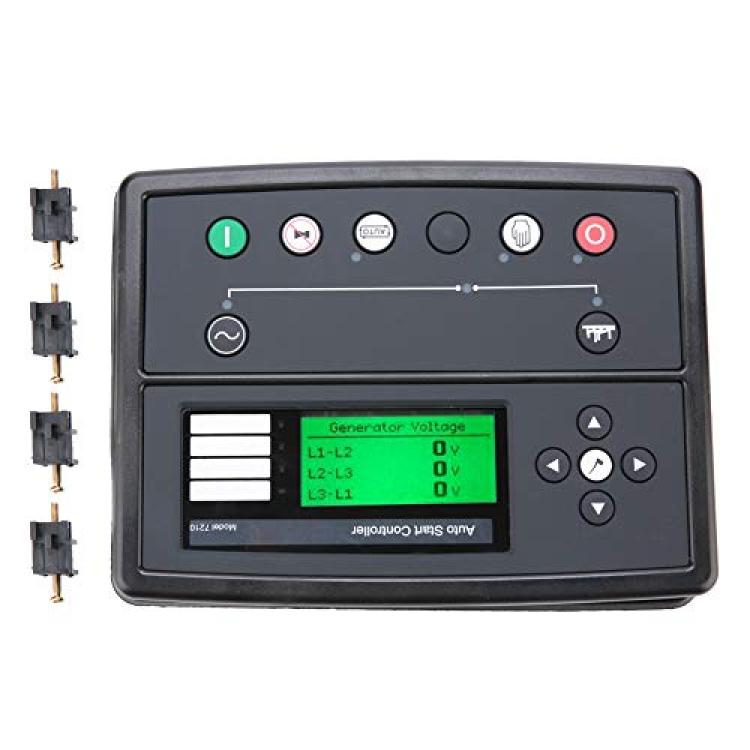

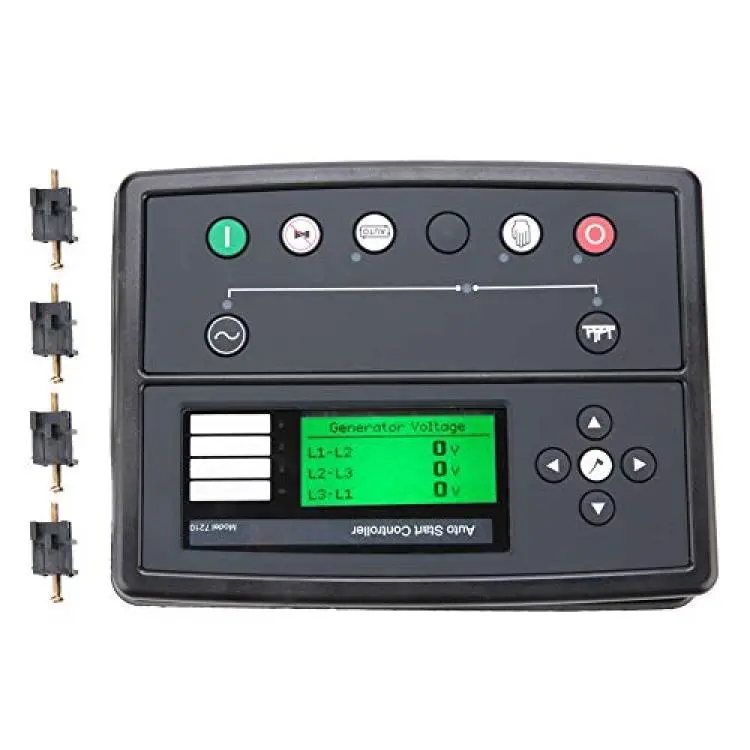

1 x Generator Controller
1 x Black Gasket
4 x Set Screws
