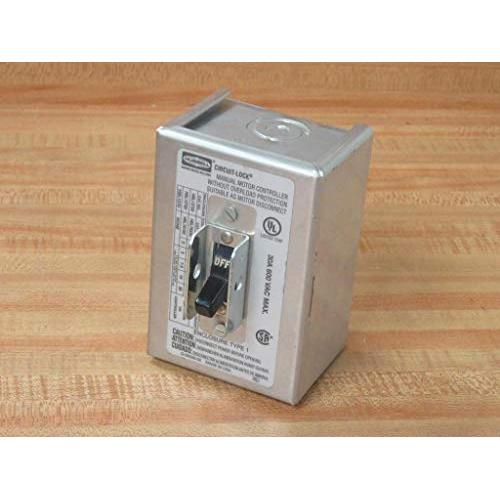

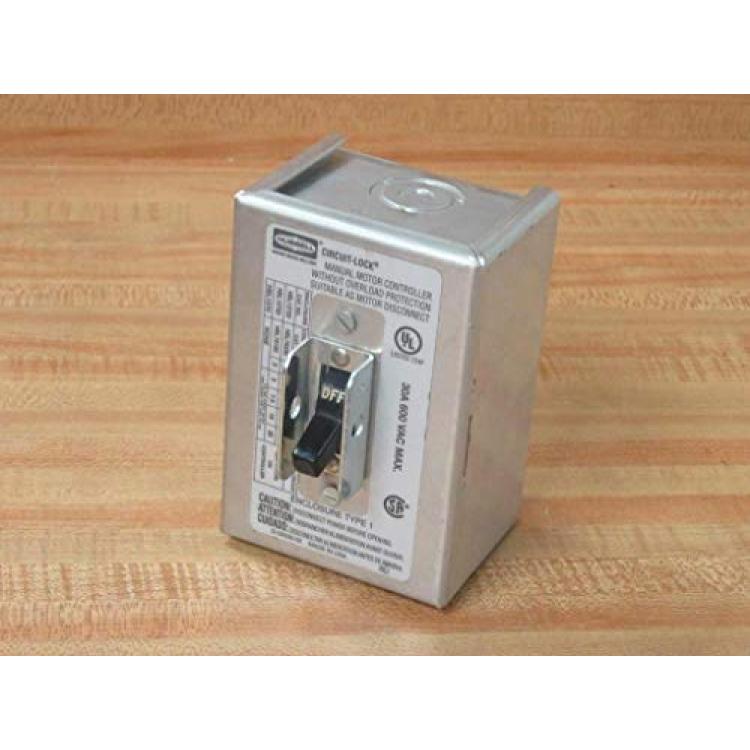

KELLEMS HBL1379D NEMA 1, Without Overload Protection, 600 VAC, 30 AMP, 3 Pole, Disconnect Switch, Manual Motor Controller, Circuit Lock
Product Code: MM28650
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*3 POLE
*30 AMP
*600 VAC
*CIRCUIT LOCK
*DISCONNECT SWITCH
Description
' Manual Motor Switch, Toggle Operator, Enclosure NEMA Rating 1, Amps AC 30, Starter Type NEMA Style, Number of Poles 3, Description/Special Features Back and Side Wired, Max. Voltage 600VAC, HP @ 3 Phase - 240V 7-1/2, Height 4.70 In., Width 3.20 In., Depth 3.10 In., HP @ 1 Phase - 120V 2, HP @ 1 Phase - 230V 5, HP @ 3 Phase - 460-575V 15, Standards UL, CSA, Pilot Light No, Phase Loss Sensitivity No '
