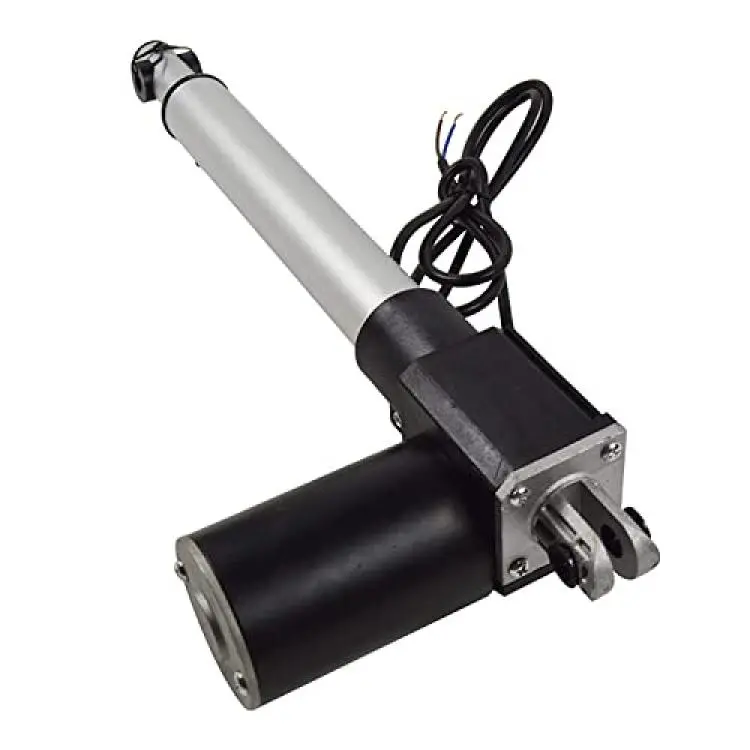

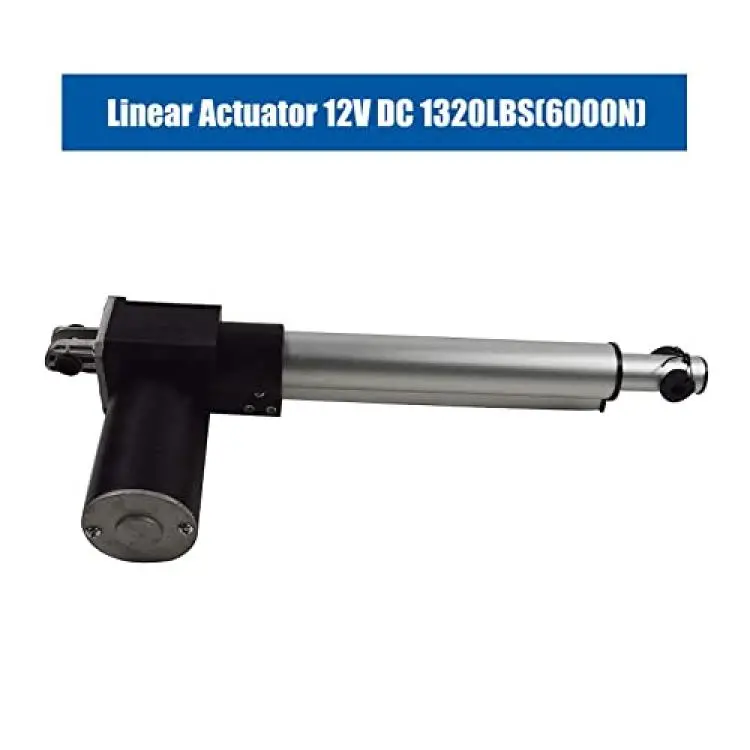

INTBUYING Electric Linear Actuator 100mm（3.94inch）12V DC with Mounting Bracket Heavy Duty 6000N/1320LB Actuators Controller
Availability: Pre-Order, Inquiry Price
About this product

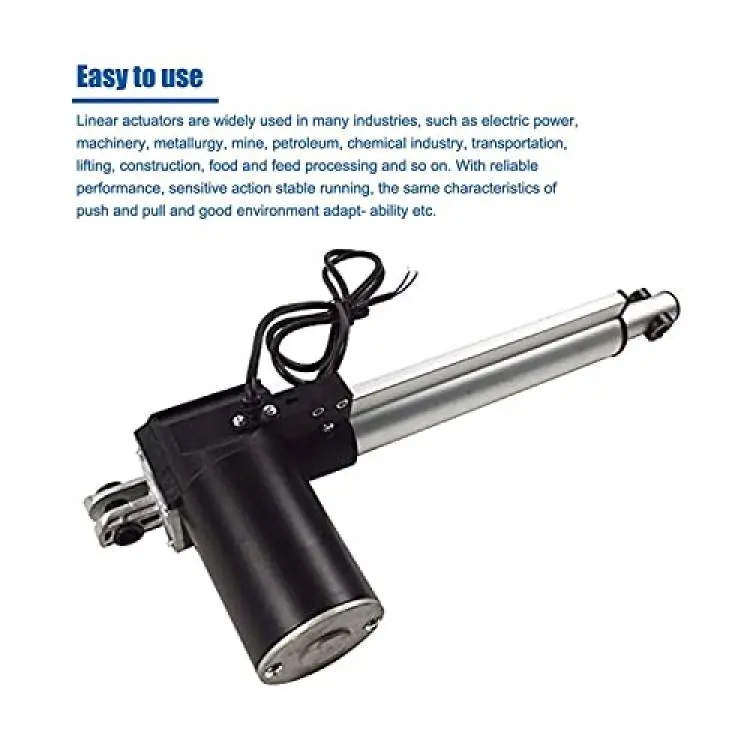

*【WIDE APPLICATION】The linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

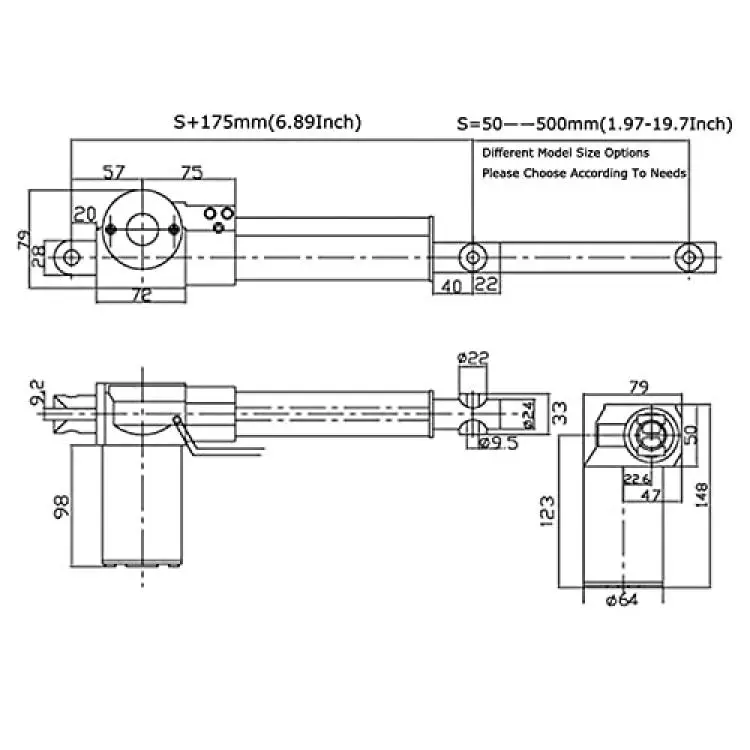

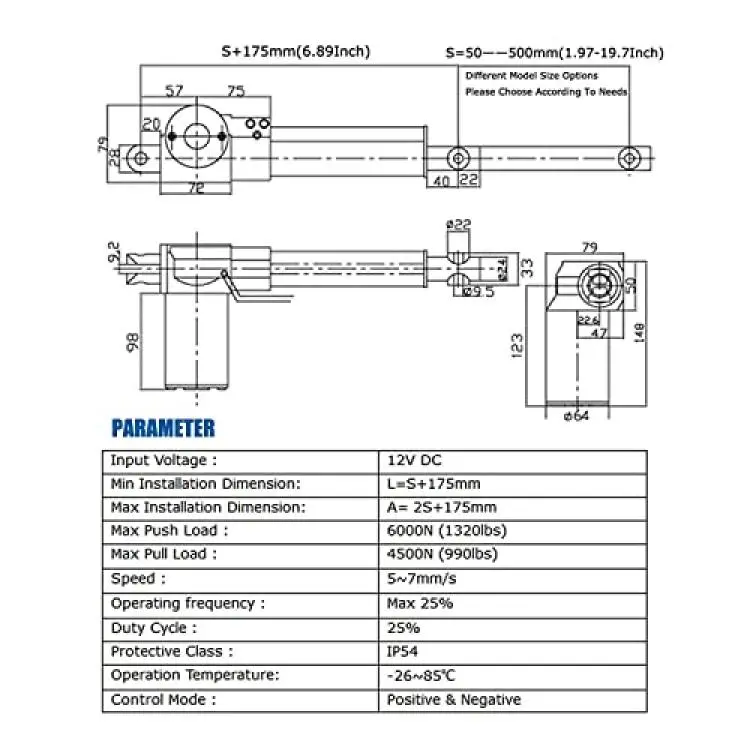

*【PARAMETER】Input voltage: 12V DC, Stroke length: S=100mm(3.94inch);Min installation Dimension: L=S+175mm, Max Installation Dimension: A= 2S+175mm;Max Push Load: 6000N(1320lbs), Max Pull Load :4500N (990lbs);Speed: 5~7mm/s, Operating frequency: max 25%, Duty Cycle: 25%;Protective Class: IP54, Operation Temperature: -26~85℃, Control Mode: Positive & Negative
*【HIGH QUALITY】Linear Motion Actuators With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc. High quality metal material, high performance motor, built-in stroke switch. All metal gear: smooth transmission, wear - resistant, high transmission torque.Pure copper core: low heating, long service life and more stable performance.
*【QUIET & COMFORTABLE】This linear actuator works with Max. 48db sound, quiet on working, not to create annoying sound. Built-in limit switch, stop at any position in the stroke.Maximum push/pull is up to 6000N, and stroke speed is up to 30mm/s when under no-load

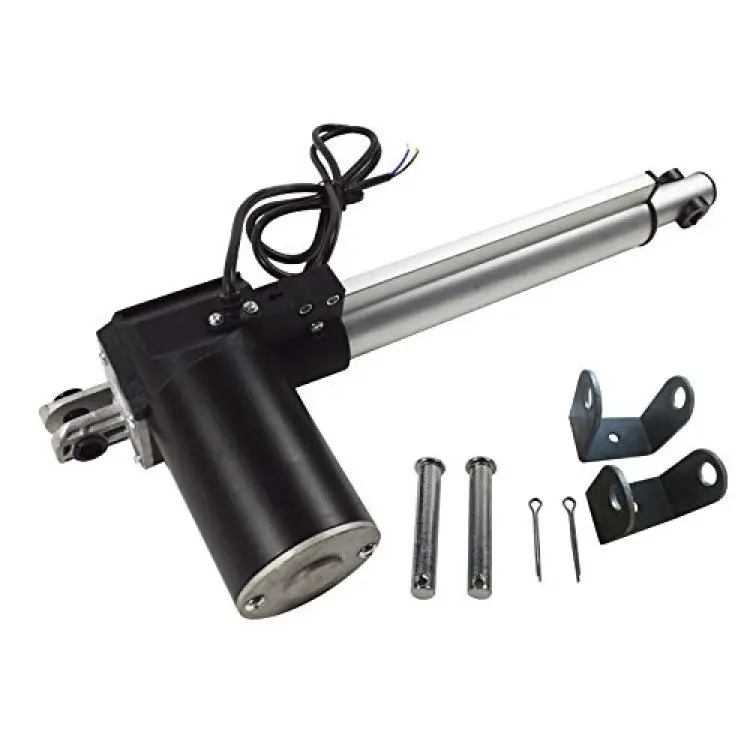

*【QUICK & EASY ASSEMBLY】Easy to install, all accessories included.Screw washer design, specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safety.
