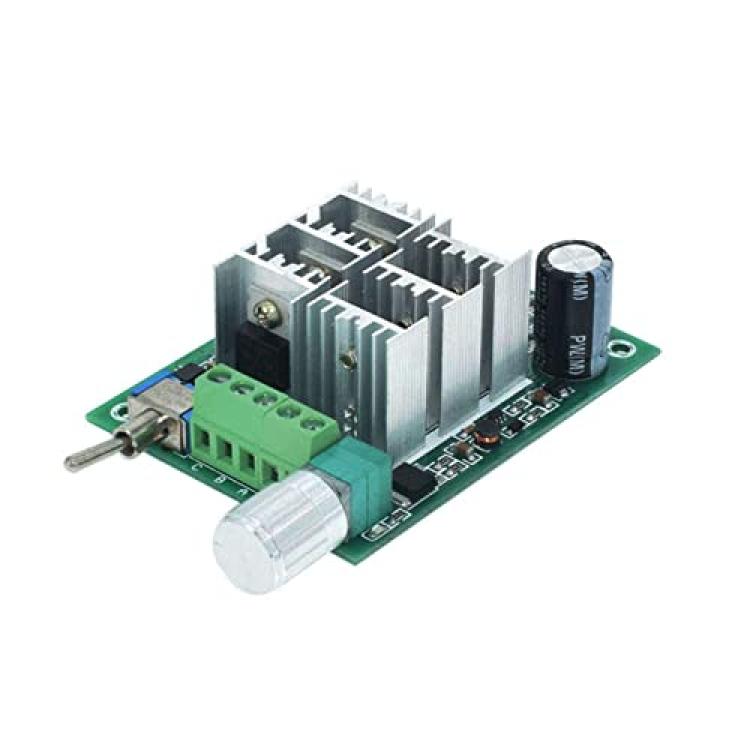

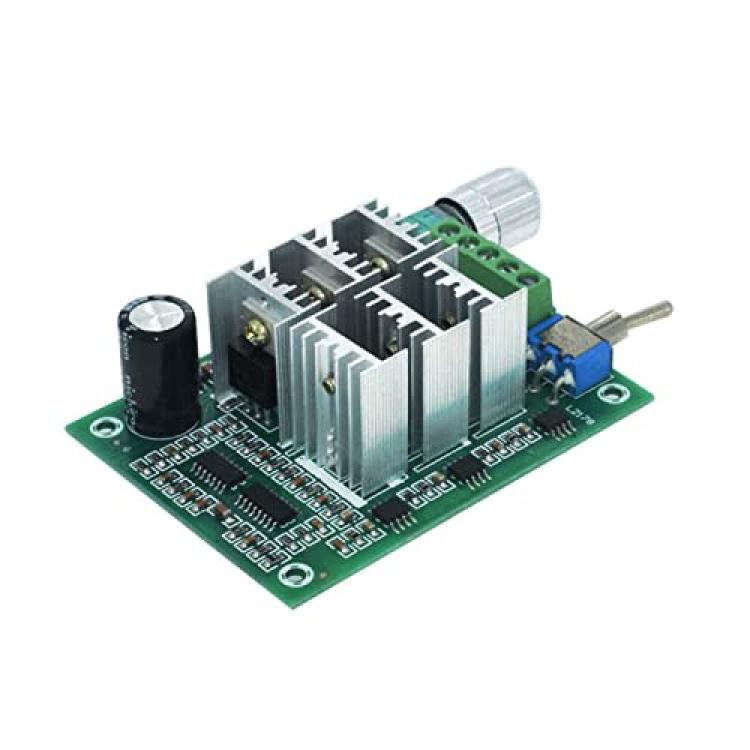

BLDC Three Phase brushless sensorless Motor Controller BL02 15A Violent Fan Modulation DC5V6V9V12V36V Forward and Reverse

Be careful:
 1.The input must be divided into
positive negative poles
(do not reverse it)
 2.The input voltage should be equal to the rated voltage of the motor (
DC5 to 36V
).
 3.
DO NOT
INPUT AC220V or burn down directly
4.The PWM controller must be loaded with equipment in order to work properly. Please
do not test without load.
---------------------------------------------------------------------
Parameter:
Input vol: DC5-36V (Equal to the rated voltage of the motor
)
Speed adjust range:  0-100%
overload protection
:15A
Forward reverse: YES
Speed regulation mode
:
270 degrees of linear potentiometers
(with switch)
 Applicable motor
:DC three-phase brushless motor
OutPut current:15A
MAX POWER=12V*15A=180W
