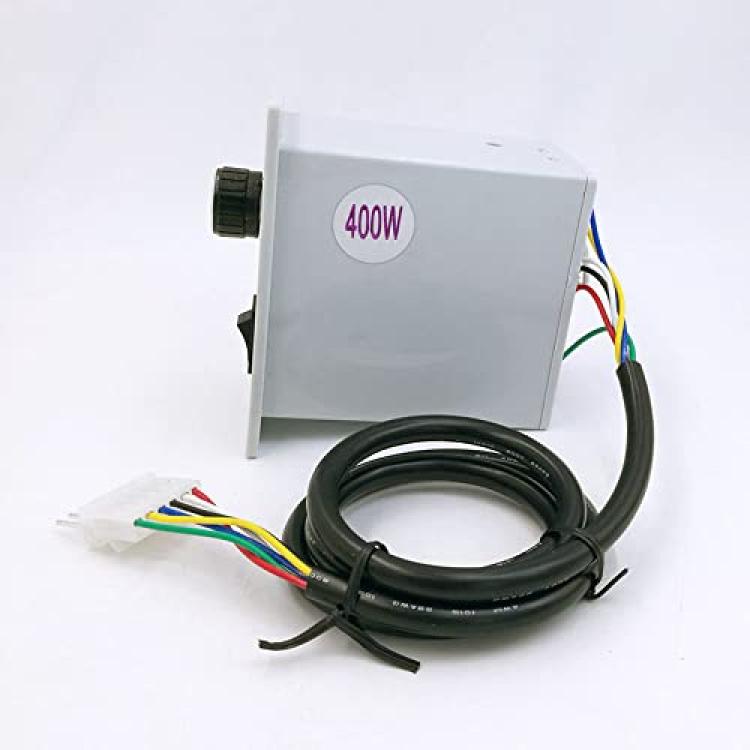

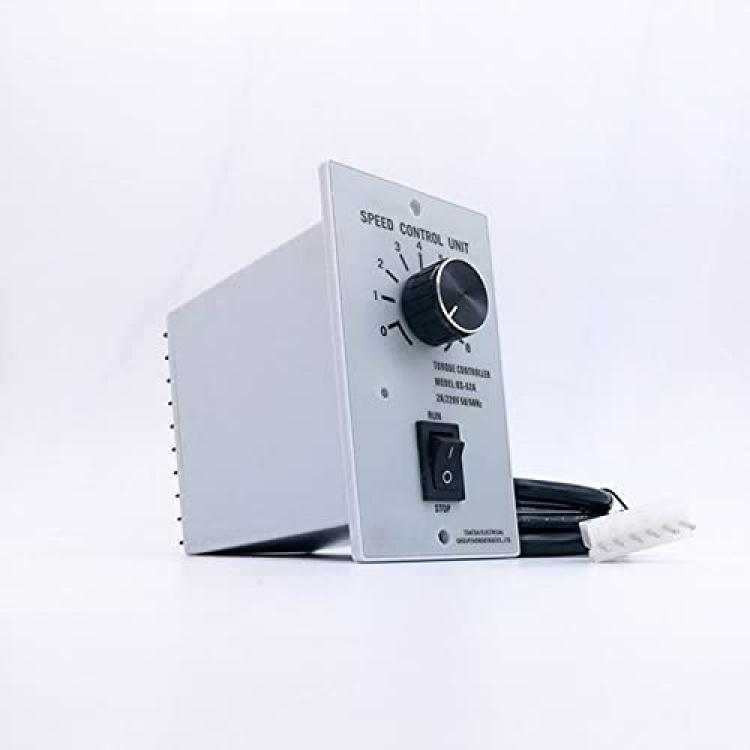

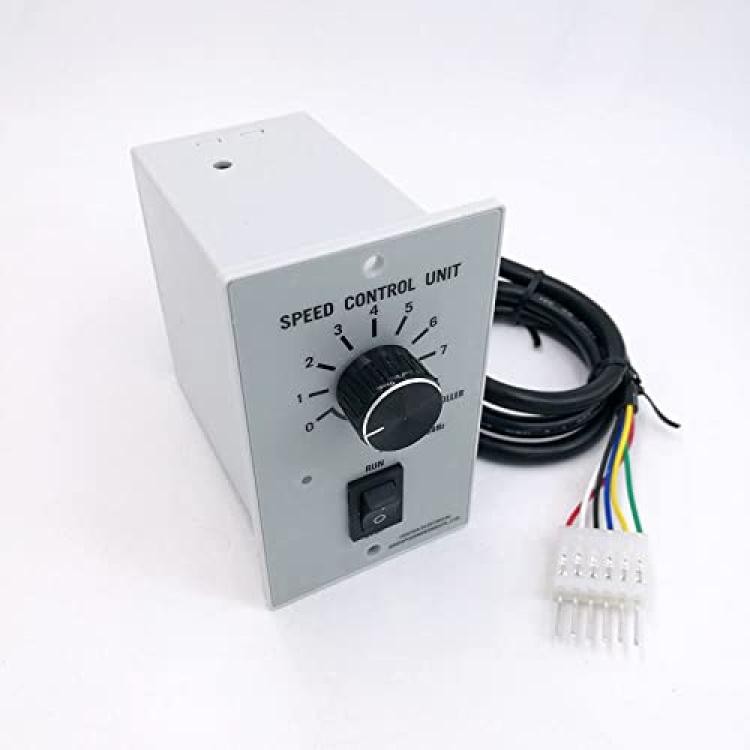

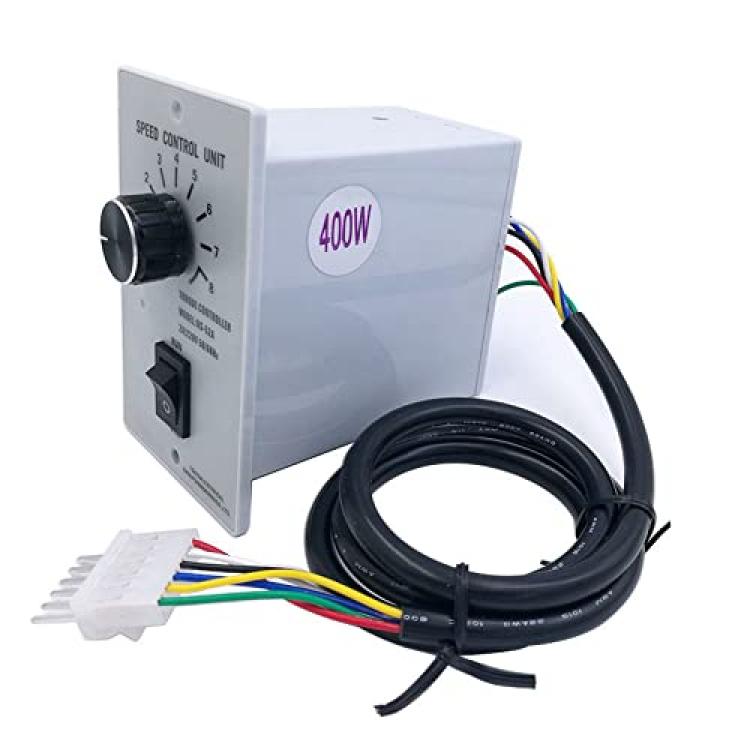

US-52 AC Speed Motor Controller Regulated Speed forword backword Controller 400W Frequency Conversion

The PWM controller must be loaded with equipment in order to work properly. Please do not test without load.
Model : US-52;
Material : PVC
Rated Value : AC 220V
Connector Type : 6 Pins
Speed range :9 - 1400r/ min 50hz
9 - 1600r/min 60Hz
Power : 400W
Cable Length : 60cm
Corotation/ Reverse Option, connect CW and COM is corotation, Connect CW and CCW is option.
Red  LED indicator, 6 terminals,on/ off switch for controlling, the knob switch for adjust the speed.
Used forMachine Tools, Textile Machinery, Conveying Machine, Printing Mechanism,Food Machinery,
Vending Machine, Packing Machinery, Gumming Machine, etc
For this speed controller, the applicable motor must be 5 wires, 2 of which are speed feedback.
Without these two lines is unable to adjust the speed, and the speed is not stable
.
US-52 is suitable for adjustable AC induction motor.Other motors are not recommended to use it.
.
