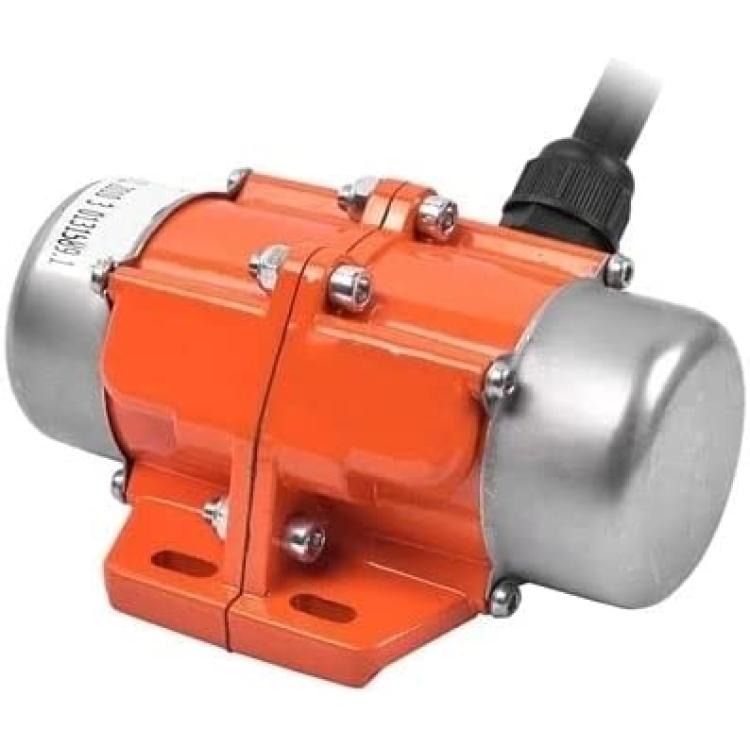

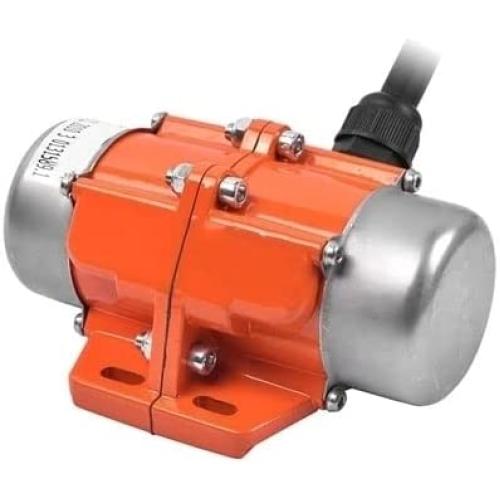

ATO 60W AC Vibration Motor, With Speed Controller
Description
ATO 1 phase 60W vibrator asynchronous motor, with small size and high power, 110VAC,60Hz, 3600rpm. IP 65 protection rank, waterproof, oil proof and oxidation resistant.
Specification:
Model: ATO-AVB-TB602S2
Power: 60W
Voltage: AC110V
Current: 0.495A
Frequency: 60Hz
Rated Speed: 3600rpm
Force: 63 kg (Test at no load)
Note: In practical application, the seismic force may be reduced by about 30%.
Phase: Single Phase
Pole: 2 Pole
Material : Aluminum Alloy
Protection Rank: IP 65
Weight: 5.5 lbs
Accessories: Speed controller
Frame No: 2
Certificate: CE
