BEMONOC DC Planetary Gear Motor 24V Brushless Motor 110 RPM High Torque 3 Phase Reduction Ration 1:56
About this product
*✔Product Name: Brushless DC Motor;Type: TS-GB-42BLS-03;
*✔Rated voltage: 24V DC; No-load speed: 110RPM;Rated Torque:102kg.cm;Rated Power: 77.5Watts;

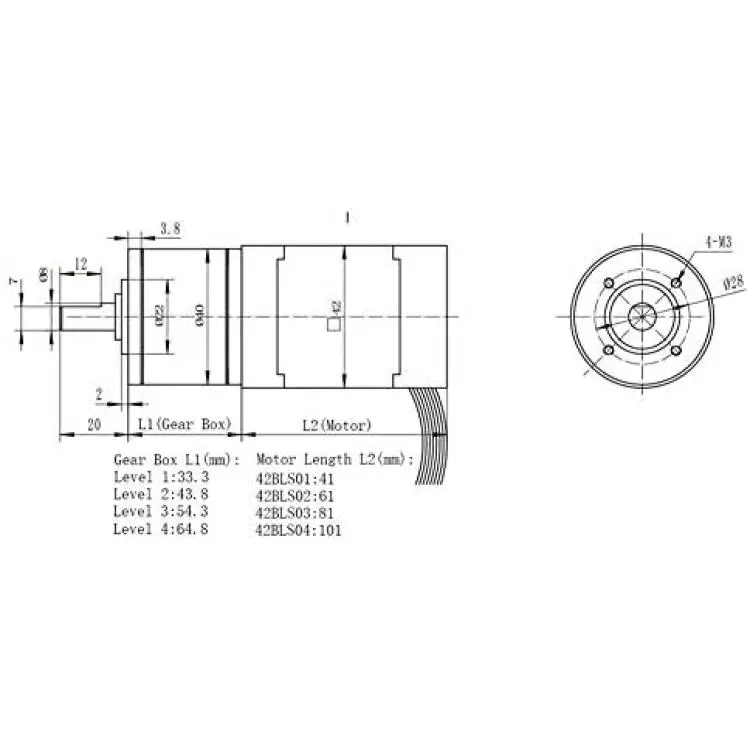

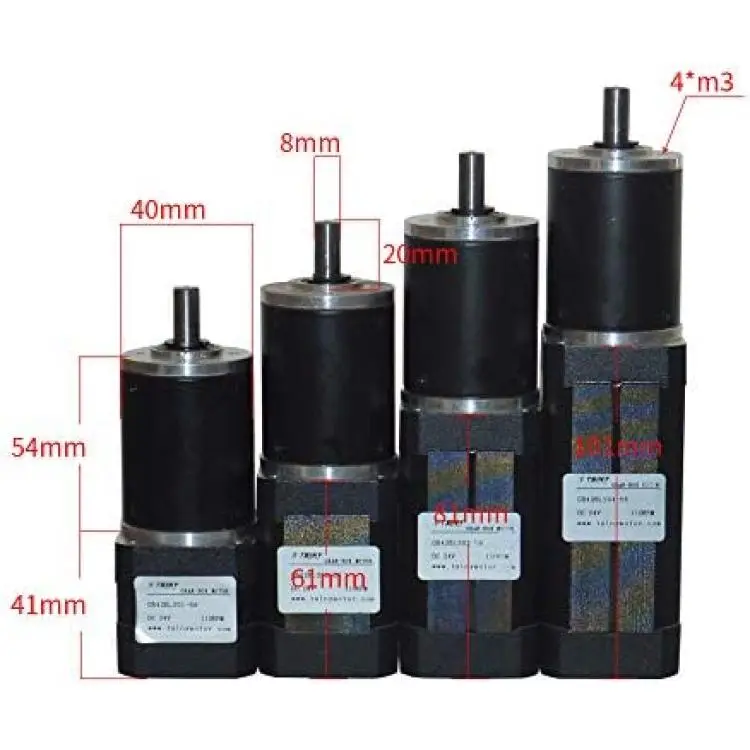

*✔ Motor Dimension reference picture; Shaft Dimensions: 8 x 16mm/0.31" x 0.63"(D*L);
*✔Number of Poles:8; Number of Phase:3;Cable:Orange:U; Grey:V; Brown: W; Red:+5V; Black:GND; Yellow:H1; Green:H2; White: H3;
Description
Product Features:
Product Name : Brushless DC Motor;
Rated Voltage : DC 24V;
Shaft : D8mm , L16mm .
Number of Poles : 8
Number of Phase : 3;
Reduction Ration : 1:56;
No-load Speed : 110rpm;
Cable:
Orange : U
Grey : V
Brown : W
Red : +5V
Black : GND
Yellow : H1
Green:H2
White : H3
