6DUSHOP AM25 DC 24V Mechanical Limit Tubular Roller Blind Motor, Build in Limit Switch and Adjust by Allen Wrench, Wired for Motorized RV Shade, Electric Powered Roller Shades
About this product
*AM25 DC tubular motor mainly applied to indoor small roller blinds, pleated screens, honeycomb screens and shading blinds for car, bus

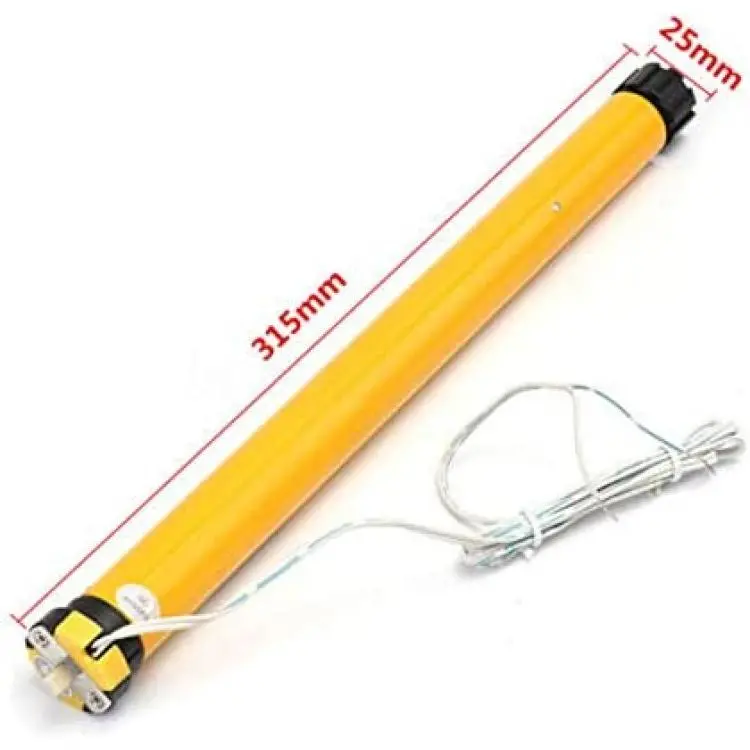

*Motor is 24 volt and 1" in diameter with Existing control is switched, limit switches built in and adjustable by Allen wrench
*Compatible with Auto Motion Shades RV day night roller shades
*No radio. Often used for RV blind and shade replacement or retrofit. For use with manual switches or home automation controllers
*The motors run on 24 volts DC (safe for kids and adults) and can be used as replacement motors for motorized blinds, shades and flagpoles in any RV motorhomes, travel trailers, etc.
Description

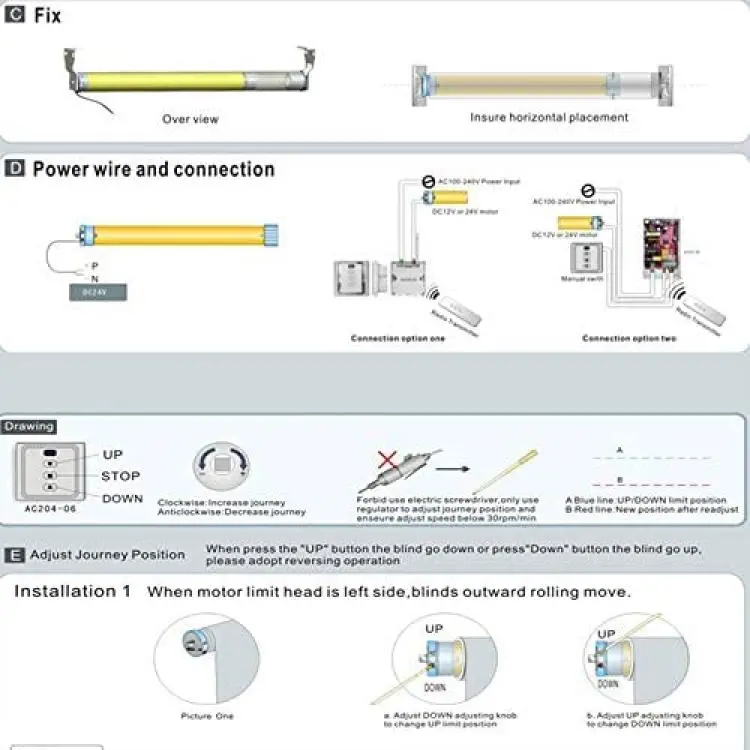

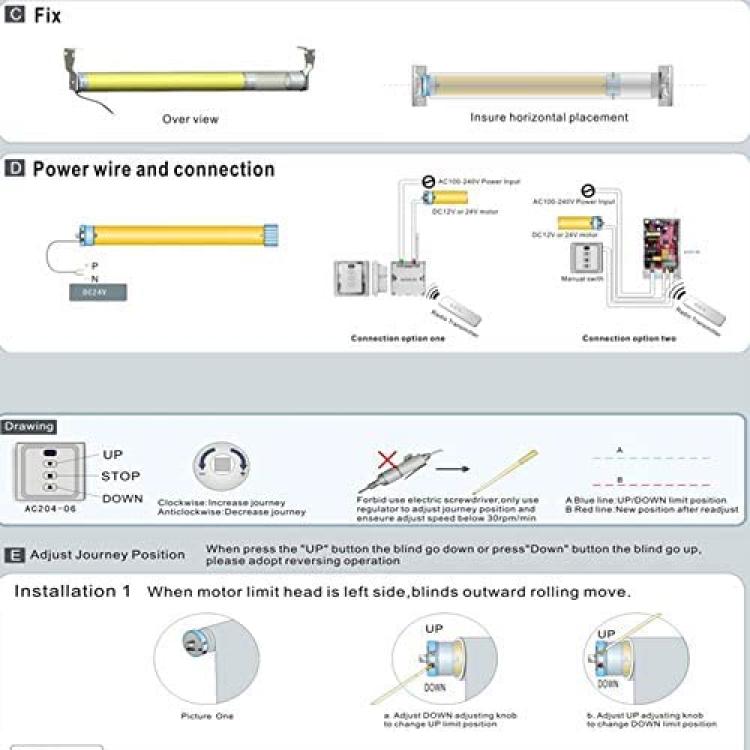

How to Program a Motorized RV Shade with a Mechanical Set Motor
1. The first step to make sure motorized shades is installed properly and mounted correctly, to male the electrical connection
2. The electrical connecntion requires 24 volts and a dual position rocker
3. The motor to the switch the blue striped wire is a positive connection and the white wire is the negative connection
4. With the shade mounted in the wiring completed we can program the shades upper and lower limits with the plstic limit setting tool or use an 8 inch allen wrench to do the job
Note: the motor has two set point adjustment holes that are used to set the upper and lower stop points of the shade
Product Specifications

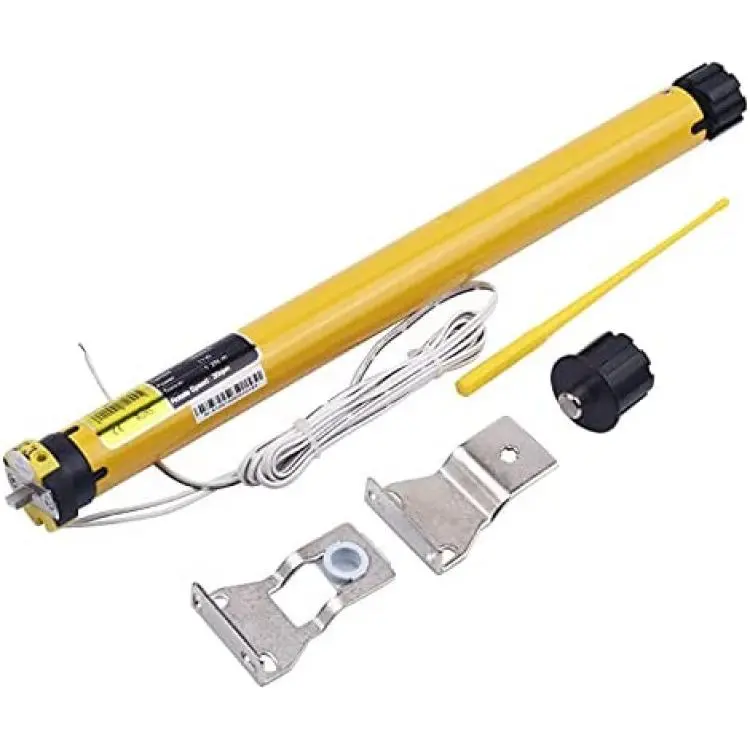

Includes motor, tube adapters (1 1/8" - 28mm ID) and hanging brackets
often used as RV shade and blind replacement motor
control type: no radio, can use any brand controller, or rocker switch
torque: 1Nm
speed: 30 rpm
nominal voltage: 24V DC (safe for children and adults)
minimum voltage: 9.5V DC
max turns in one direction: unlimited
upper/lower limits: 'learning type', set by controller positioning
current consumption: 900 mA
noise level: 39db
accepts any round tubing: YES
