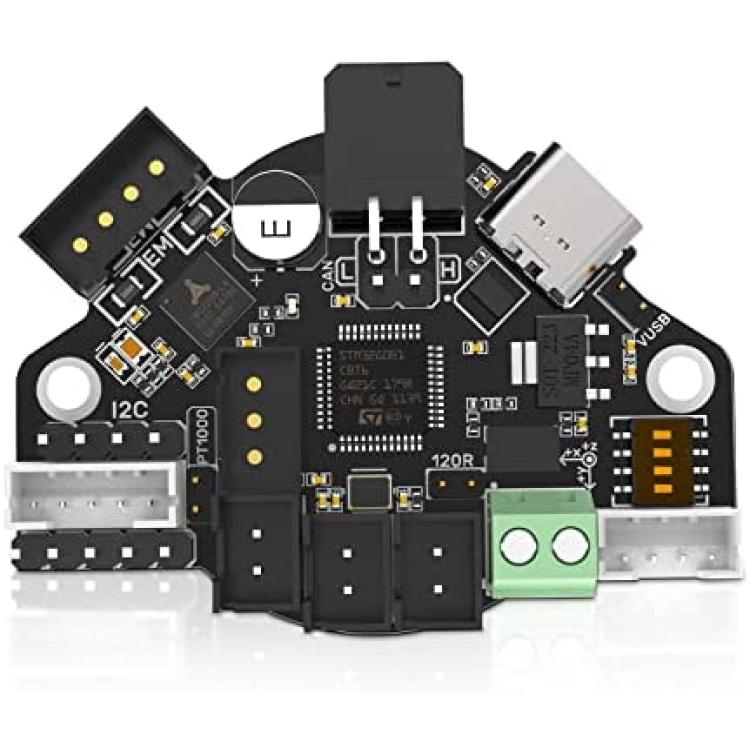

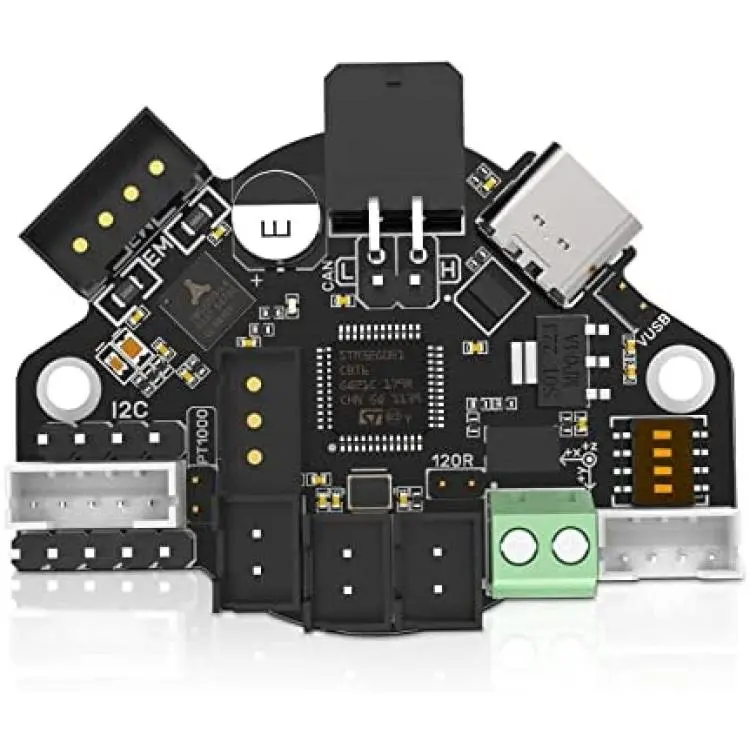

BIQU EBB36 CAN Bus Adapter Board with MAX31865 Hot End PCB Board Filament Break Blockage Detection for 36 Stepper Motor Extruder Nozzle Head Tool for Blv Ender 3

Product parameters

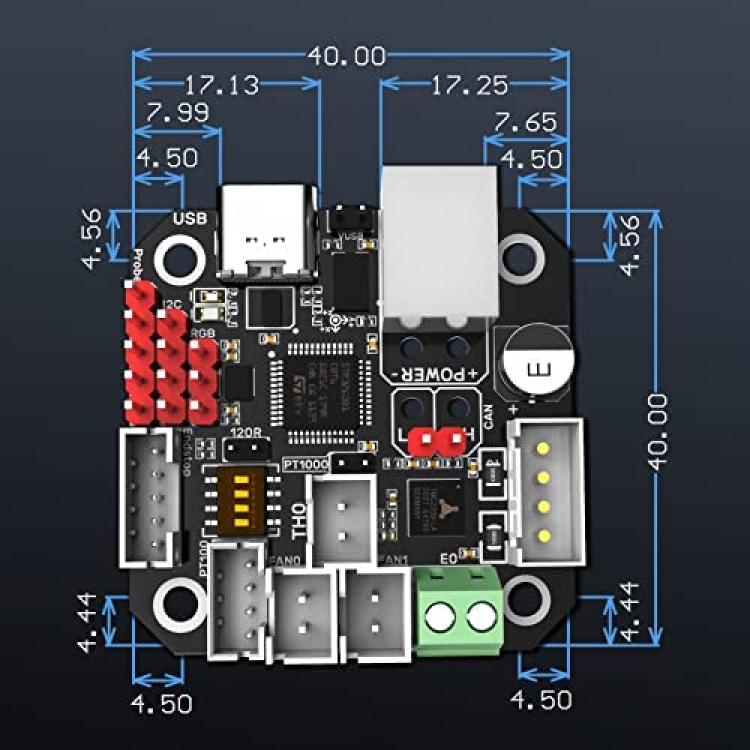

1. Appearance size: 51.5mm*37mm

2. Installation size: hole spacing 43.85mm, M3 screw hole*2

3. Microprocessor: ARM Cortex-M0 STM32G0B1CBT6

4. Input voltage: DC12V-DC24V 6A

5. Logic voltage: DC 3.3V

6. Heating interface: heating rod (E0), maximum output current: 5A

7. Onboard sensor: ADXL345

8. Fan interface: two CNC fans (FAN0, FAN1)

9. Maximum output current of fan interface: 1A, peak value 1.5A

10. Expansion interface: EndStop, I2C, Probe, RGB, PT100/PT1000, USB interface, CAN interface

11. Motor drive: onboard TMC2209

12. Drive working mode: UART

13. Stepper motor interface: EM

14. Temperature sensor interface: 1 channel 100K NTC or PT1000 (TH0), 1 channel PT100/PT1000 optional

15. USB communication interface: USB-Type-C

16.DC 5V output maximum current: 1A

Precautions

1. When the PT1000 is not used for the TH0 interface, the jumper cap cannot be inserted on it, otherwise the 100K NTC cannot be used normally

2. When using CAN communication, you need to see if it is used as a terminal. If it is a terminal, you must plug the jumper cap at the 120R position;

3. When DIY crimping, you need to pay attention to the line sequence, and do DIY according to the Pin diagram to avoid the power line being reversed or connected to the CAN signal, which will cause the module to burn;

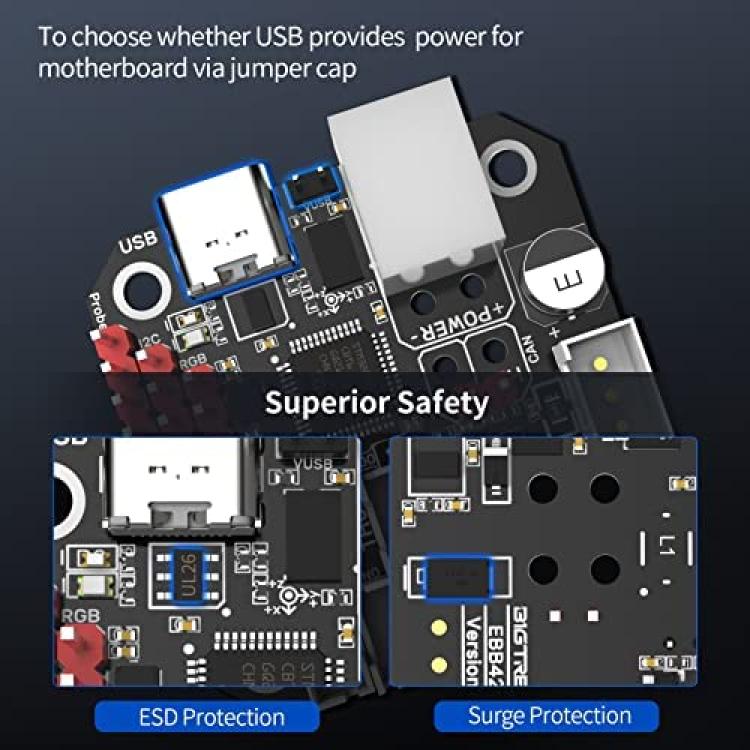

4. When programming the program through the USB port, if there is no external power supply, you need to short the VUSB jumper cap to provide the module with working voltage;

5. The load current of the heating rod and the fan interface should not be greater than the maximum withstand current to prevent the MOS tube from being burned out.
