DC 24V 6Inch 150mm Stroke Linear Actuator, Maxmium Lift 750N 165lbs Heavy Duty, for Electric Medical Bed Lifting Rod Vehicles Vessels Window Door
Availability: Pre-Order, Inquiry Price
About this product
*ELECTRIC LINEAR ACTUATOR: telescopic actuator, permanent magnet DC motor drive, industrial grade lift actuator.
*GEAR DRIVE: electric drive that converts the rotation of the motor into the linear reciprocating motion of the actuator, which can transmit a large thrust, with a maximum push/pull force of 750N, strong and powerful.
*MAXIMUM STROKE: The standard stroke is 50mm, the installation size after contraction is 255mm, and the extension size after full extension is 405mm.

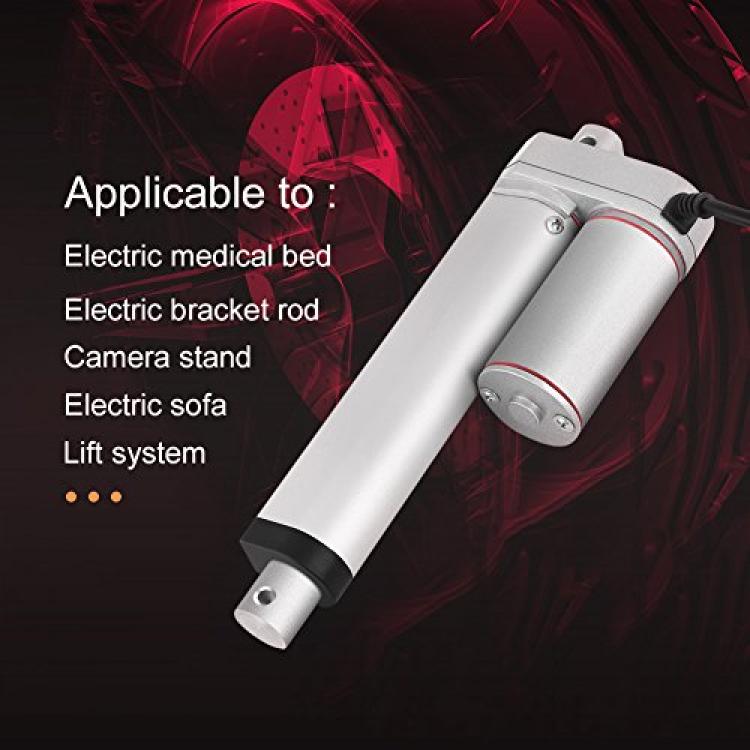

*MULTI-PURPOSE: electric medical bed, electric sofa, electric cabin lift bar, industrial electric lift system, camera mount, PTZ camera, wedding system.
*PERFORMANCE: DC 24V power supply, no-load expansion speed of 10mm/sec, load speed of 5mm/sec (kg)-50sec (50kg), can be wired separately for remote control.
Description
Features:
1. The linear actuator is an electric drive device that converts the rotary motion of the motor into a linear reciprocating motion of the push rod.
2. Can be used in various simple or complex processes as a mechanical machine for remote control, centralized control or automatic control.
3. Permanent magnet DC motor drive
4. Built-in stroke switch with wired or remote control and low noise.
5. You can increase or increase the stroke by changing the length of the lever arm.
Specification:
Condition: 100% Brand New
Model: JS-TGZ-U1
Voltage: 24V
Maximum Push / Pull: 750N
Standard Stroke: S=150mm
Minimum installation size (the distance between the front and rear holes when the push rod is fully retracted): L=S (stroke) + 105mm The distance between the front and rear holes when the push rod is fully extended = 2XS (stroke) + 105mm
No-load Speed: 10/s
Environment Temperature: -26?-50?
Standard Protection Level: IP54
Noise Level: Less Than 42dB
Weight: Approx. 1261g / 39.7oz

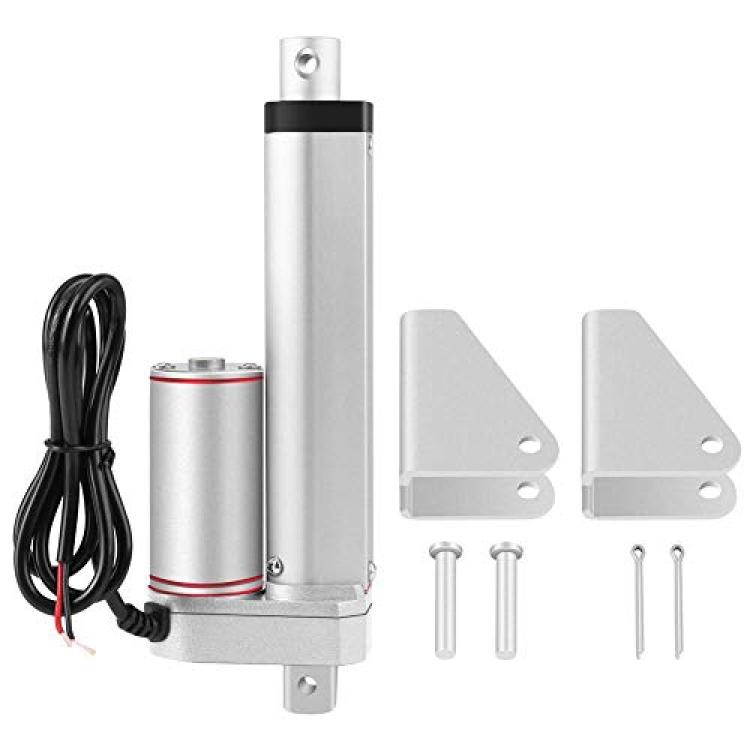

Package List:
1 * Linear Actuator
2 * Holder
4 * Retaining Pin
