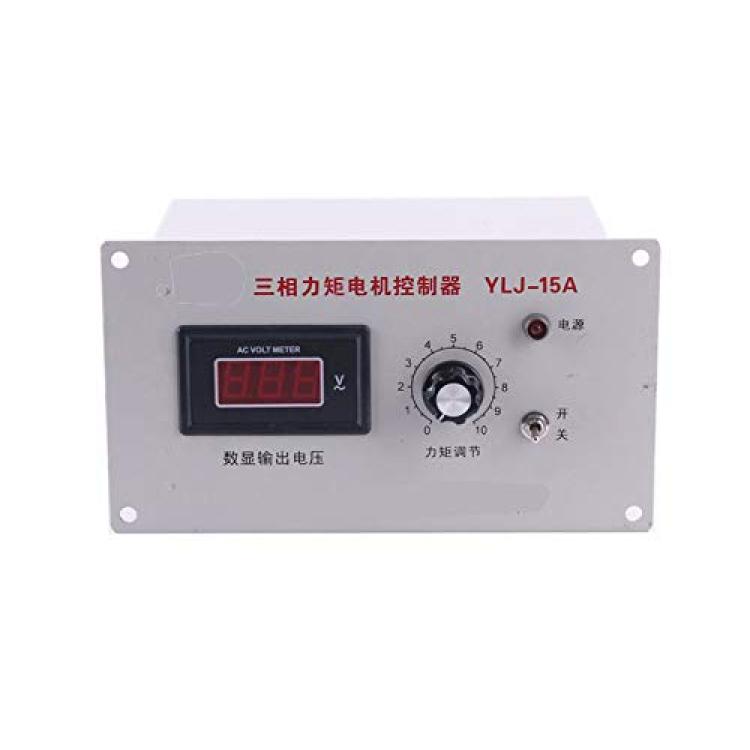

Huanyu 3 Phase Torque Motor Controller Thyristor Speed Regulator with Open-Phase Protection 0 to 1500 RPM Control Range Supported YLJ (15A)
Availability: Pre-Order, Inquiry Price
About this product
*【Operation Method】：The main circuit of the three-phase torque motor controller adopts the imported two-way thyristor. By changing the open angle of the controllable silicon, the working voltage of the motor or other load can be continuously adjusted from 0 to 365V (the motor starting voltage is 60V). A balanced process of regulating the regulator speed is achieved to meet the process requirements of different production processes. The work is stable and reliable.
*【Electronic Features】: Three-phase electric 380V, phase-loss protection, single potentiometer, single chip control.
*【Applications】: Widely used in winding machinery in hardware, machinery, plastics, wire, cable, rope, printing, paper, boiler, lifting, machine tools, general machinery, etc.

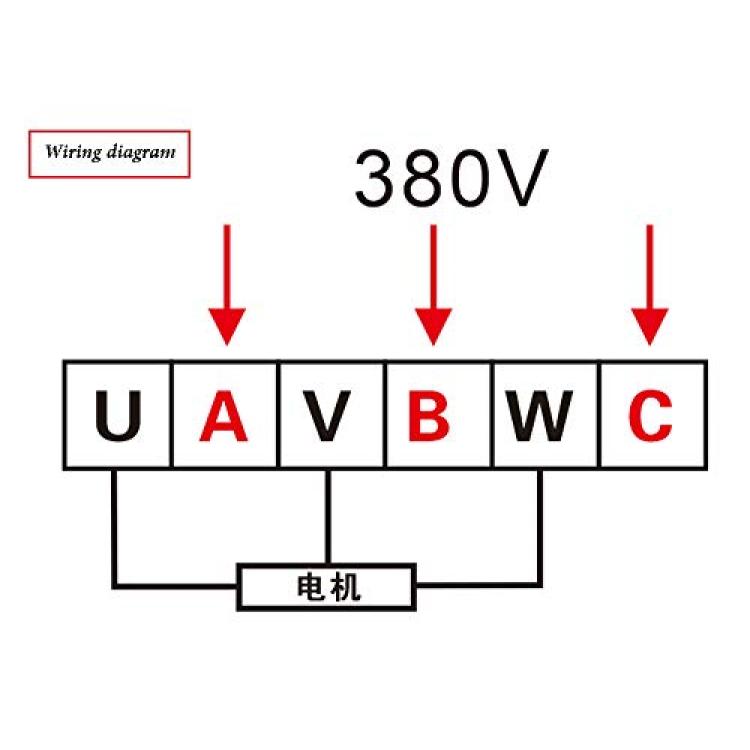

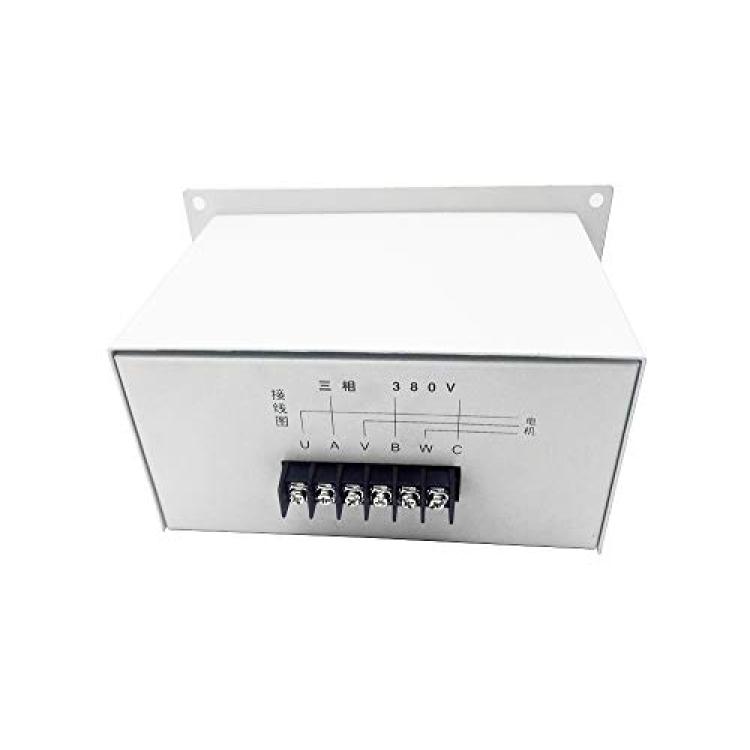

*【Simple Wiring】：three in and three out.
*【Speed Controlling Range】: 0-1500（rpm）.
Description
Huanyu
Huanyu mainly provides instruments and tools. We provide voltage customized services, specific requirements can be contacted by email, we will respond promptly.
Product Overview
The torque motor dedicated controller is an advanced fully electronic control device specially designed to replace the three-phase autotransformer, which can work in resistance and inductive loads. Widely applicable to winding machinery in hardware machinery and plastics, wire, cable, rope, printing, paper, boiler, lifting, machine tools, general machinery and other industries compared with three-phase auto-coupled voltage regulator, this controller is adopted The electronic regulation, non-contact wear, voltage regulation balance, good starting performance, the controller has a small size instead of three-phase autotransformer, light weight, high efficiency, low heat generation, energy saving (average energy saving of more than 17%). Long service life, easy installation and maintenance.
Specification:
1, rated voltage: three-phase 380V ± 10%;
2. Frequency: 50Hz or 60Hz;
3. Output voltage range: 0V (60V) ~ 365V;
4. Three-phase deviation of output voltage: ±5%;
