Motor Speed Controller, CCM4N DC12~30V Motor Controller Joystick CW/CCW Motor Speed Regulator with Overcurrent Protection 3A(DC 12-30V)
Availability: Pre-Order, Inquiry Price
About this product
*✔ 【Motor Speed Controller】 - The angle at which the potentiometer deviates from the midpoint is the speed of the motor. That is, the larger the deviation angle is, the faster the speed is, and the midpoint is stopped when it is adjusted.

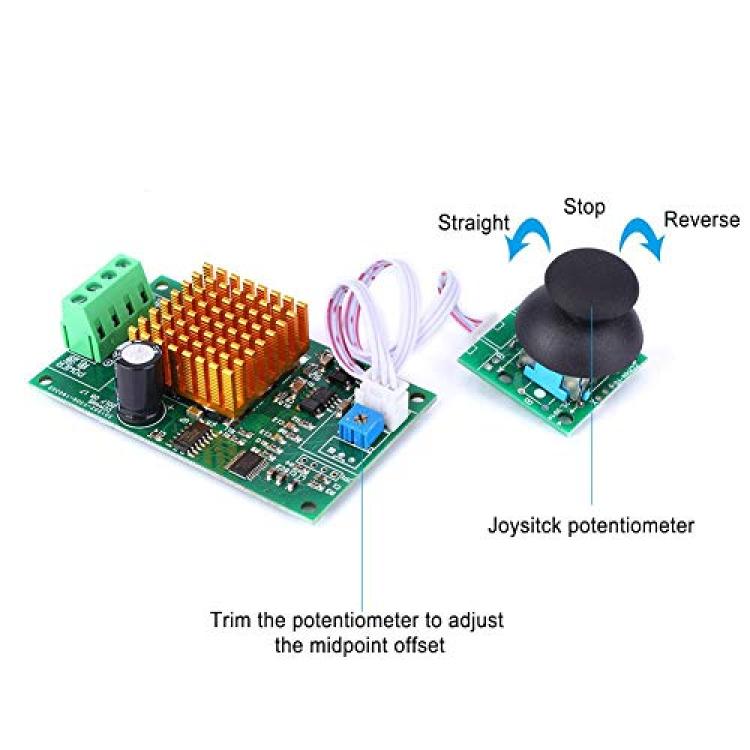

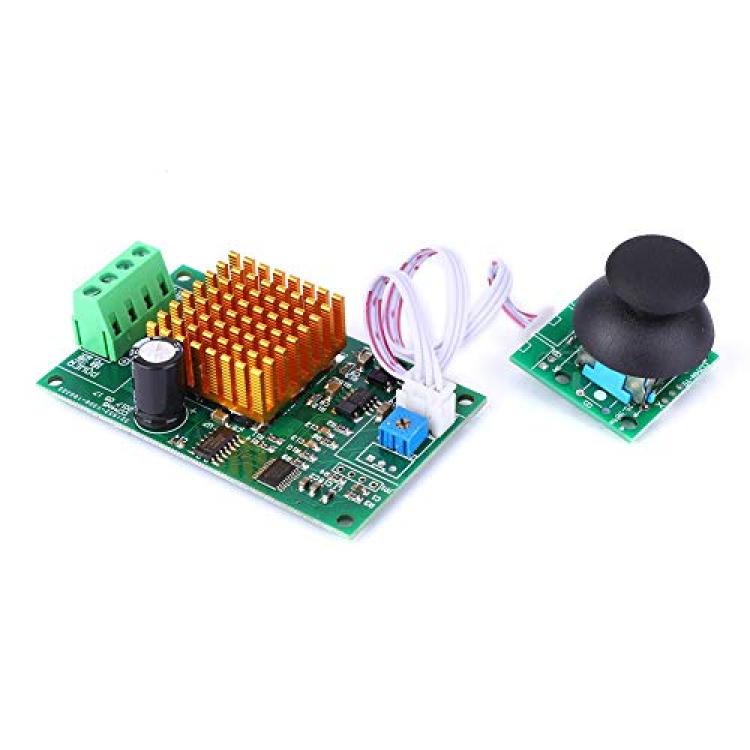

*✔ 【Design Principle】 - The product is equipped with a joystick potentiometer, which makes speed controller stop when at midpoint.

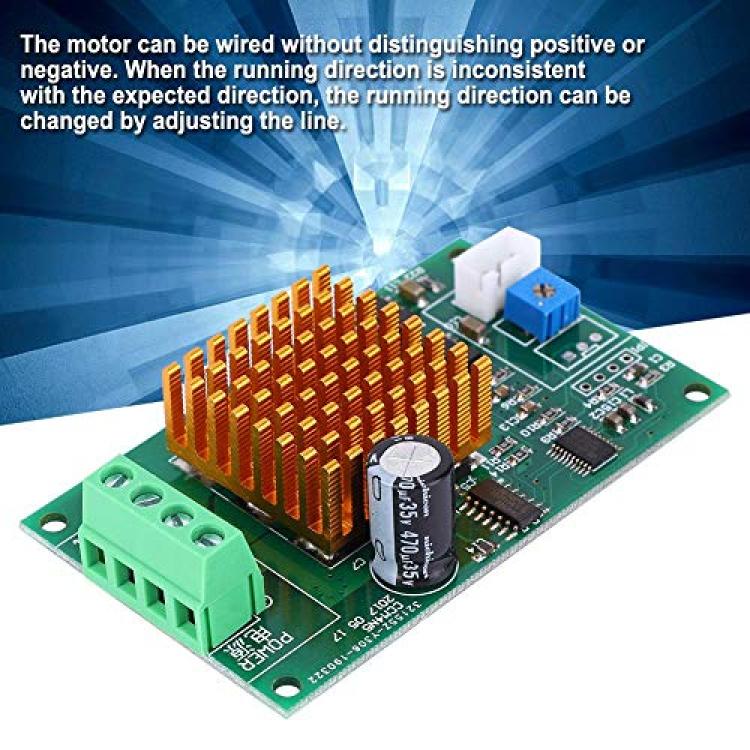

*✔ 【Advantage】 - The motor can be wired without distinguishing positive or negative. When the running direction is inconsistent with the expected direction, the running direction can be changed by adjusting the line.
*✔ 【Function】 - PWM speed controller, small effected by noise. Integrated with overcurrent protection, can protect the controller and motor well.
*✔ 【Main Parameters】 - Input Voltage: DC 12-30V; Rated Current: 3A; Maximum Current: 6A; Speed Range: 0% -100%; Applicable Power: Within 12V50W, Within 24V100W.
Description
Feature:
1. The angle at which the potentiometer deviates from the midpoint is the speed of the motor. That is, the larger the deviation angle is, the faster the speed is, and the midpoint is stopped when it is adjusted.Â
2. The product is equipped with a joystick potentiometer,which makes speed controller stop when at midpoint.Â
3. The motor can be wired without distinguishing positive or negative. When the running direction is inconsistent with the expected direction, the running direction can be changed by adjusting the line.Â
4. PWM speed controller,small effected by noise.Â
5. Integrated with overcurrent protection,can protect the controller and motor well.
Specification:
Item Type:Motor Speed Controller
Input Voltage: DC 12-30V
Rated Current: 3A
Maximum Current: 6A (With Hall Current Detection Chip, Stop Output When The Instantaneous Top Value Is Greater Than 6.4A)
Speed Range: 0%-100%Â
Applicable Power: Within 12V50W, Within 24V100WÂ
Package List:
1 x Module
