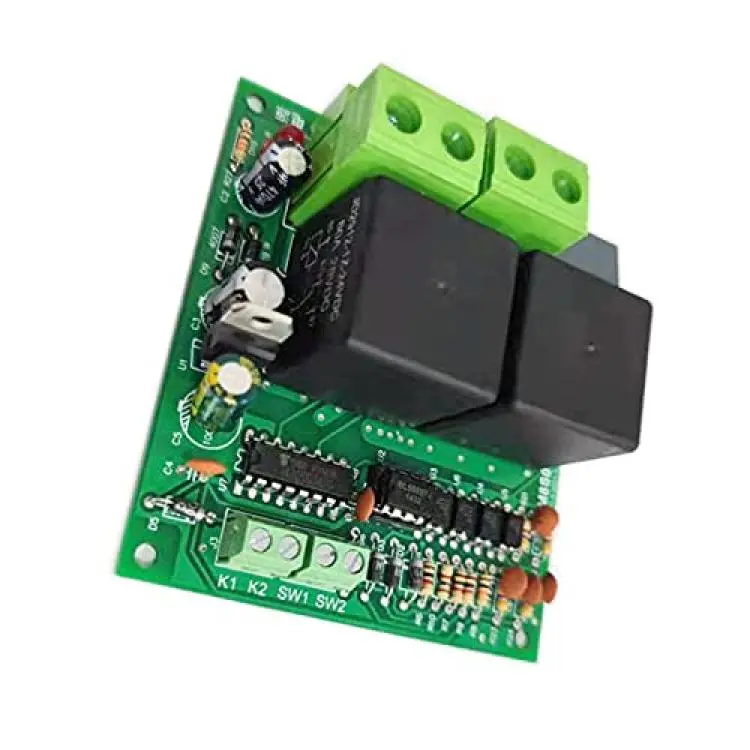

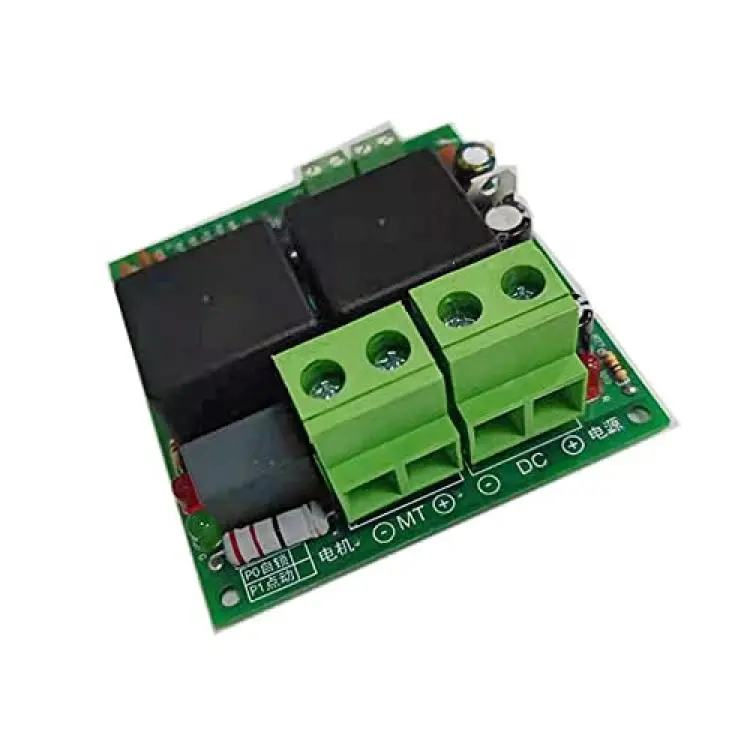

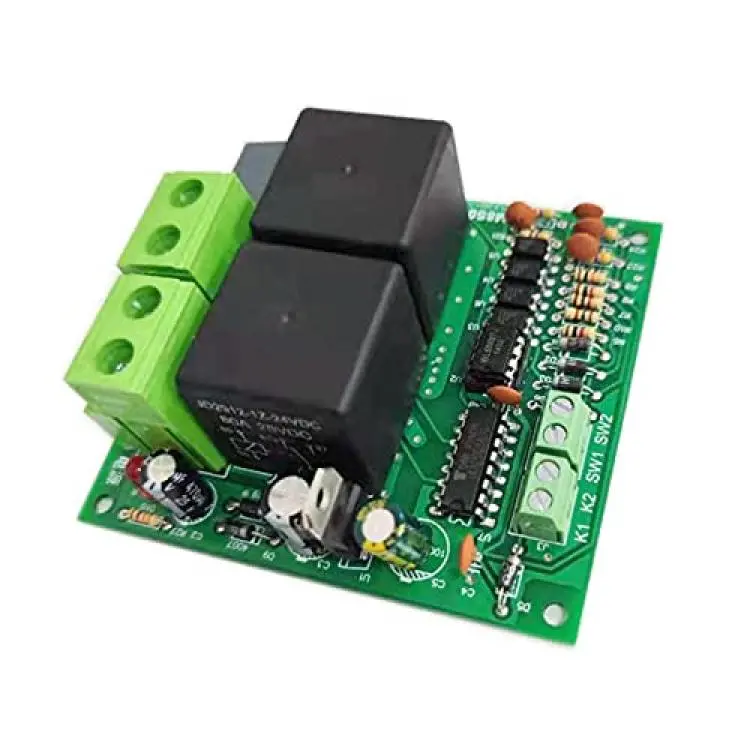

Taidacent 12V 24V Relay Control Board DC Motor Forward and Reverse Controller 80A High Current DC Motor Forward Reverse with Limit for Drive Module Lift Control (DC24V, P1 Inching Release to Stop)

Selection instructions
P0 standard version-self-locking, the signal only needs to be triggered once, and the module self-locking runs all the time.
-When it encounters a reverse signal during forward rotation, it stops immediately after 0.3 seconds and then enters reverse rotation.
-The limit signal is given priority, and it will stop immediately when it encounters a positive limit signal during forward rotation.
-It is not possible to start forward rotation when there is a forward rotation limit signal.
-Reverse the same.
-It is valid when the forward and reverse signals are low, that is, a short 0V level (negative power supply), it will start
The limit signal is normally open. (For example, when the SW1 switch is closed or connected to low level, it cannot start forward rotation)

P1 jog version.
When there is a forward rotation signal, the motor rotates forward; when there is a reverse rotation signal, the motor reverses;
The motor stops when there is no forward rotation signal and no reverse rotation signal.
In forward rotation, if SW1 is closed, it will stop forward rotation; in reverse, if SW2 is closed, it will stop forward rotation. Withdraw the signal of SW1 and SW2, the rotation will not be restored at this time, and a signal edge is required to start the forward and reverse rotation.
-Other features are the same as P0.
