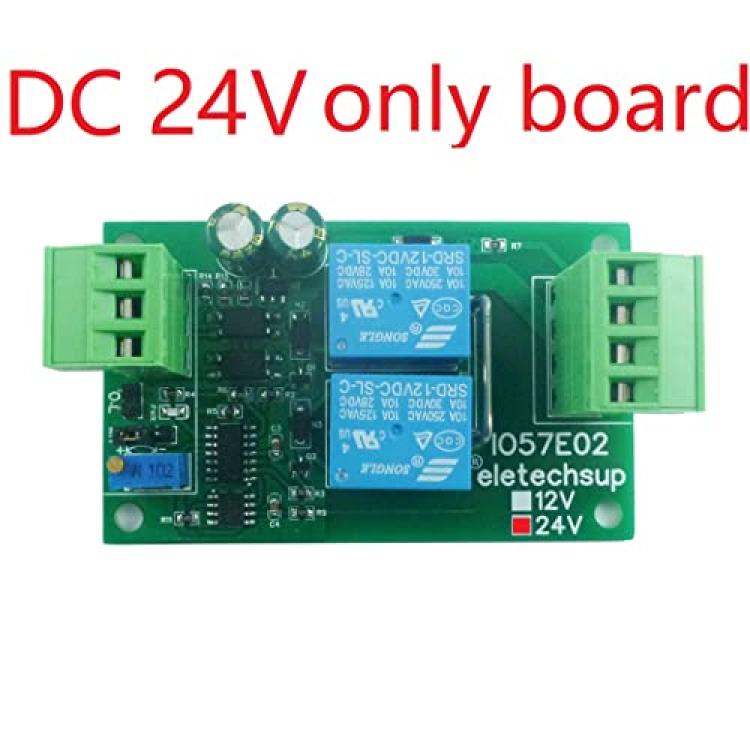

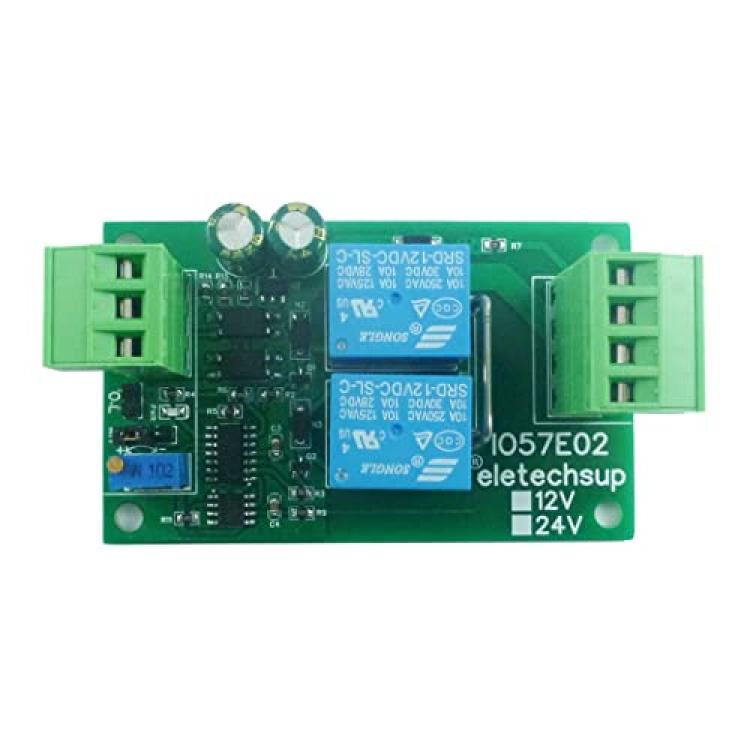

eletechsup Brushed DC Motor Overload Overcurrent Short Circuit Protector Board Forward Reverse Controller Driver Relay Module 12V 24V (DC 24V only Board, 1)
Availability: Pre-Order, Inquiry Price
About this product
*1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor power x3);
*2 Applicable motor: 12V/24V Brushed DC motor;
*3 Maximum current: Short-term working current 10A, long-term working current 3A;
*4 Protection current adjustment range: 0.2A~10A;
*5 Motor control: Forward, Reverse;
Description
Product Name:Brushed DC Motor Overload Overcurrent Short Circuit Protector Board Forward Reverse Controller Driver Relay Module 12V 24V Product Included:1pcs DC 12V/24V DC Motor Overcurrent Overload Protector ModuleProduct parameters:1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ? motor power x3);2 Applicable motor: 12V/24V Brushed DC motor; 3 Maximum current: Short-term working current 10A, long-term working current 3A; 4 Protection current adjustment range: 0.2A~10A; 5 Motor control: Forward, Reverse; 6 Working modes: 2 optional modes, Non-locking and self-locking; 7 Working current (excluding motor): 40mA; 8 Size: 97*50*32mm (with shell), 79.5*48.2*19mm (without shell); 9 Weight: 80.3 grams (with shell), 45,5g (without shell).Please contact me for detailed instructionsPin DescriptionM- : Motor-M+: Motor+VCC: Power Supply+GND: Power Supply-COM:Control signal common terminal(GND)FWD:Forward controlREV:Reverse controlLED :Power supply indicatorO.L : Overload signal outputMODE: Momentary/Self-locking mode selectionADJ :Overload current regulationApplication Motor Overload ProtectionMotor Overcurrent ProtectionMotor Short Circuit ProtectionLED Overcurrent Protection
