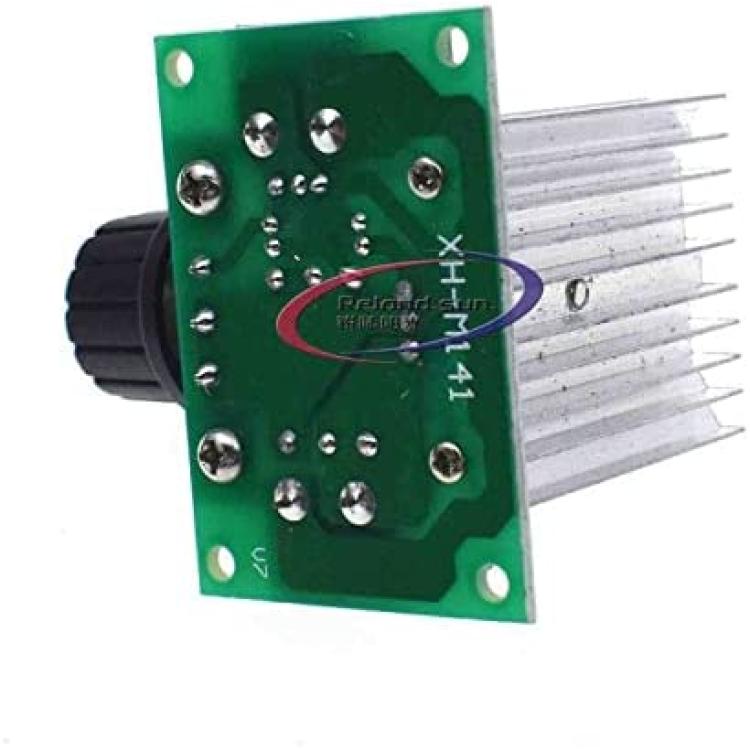

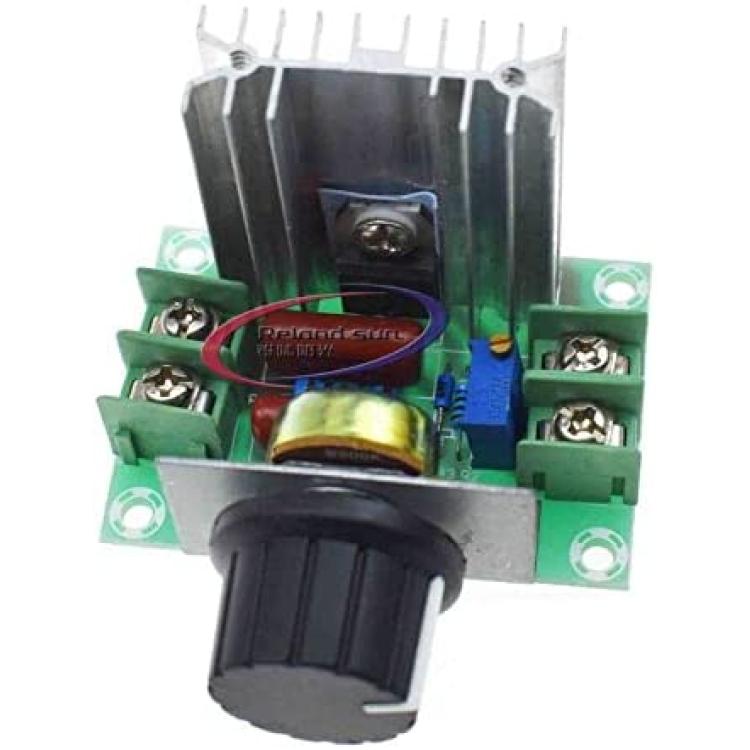

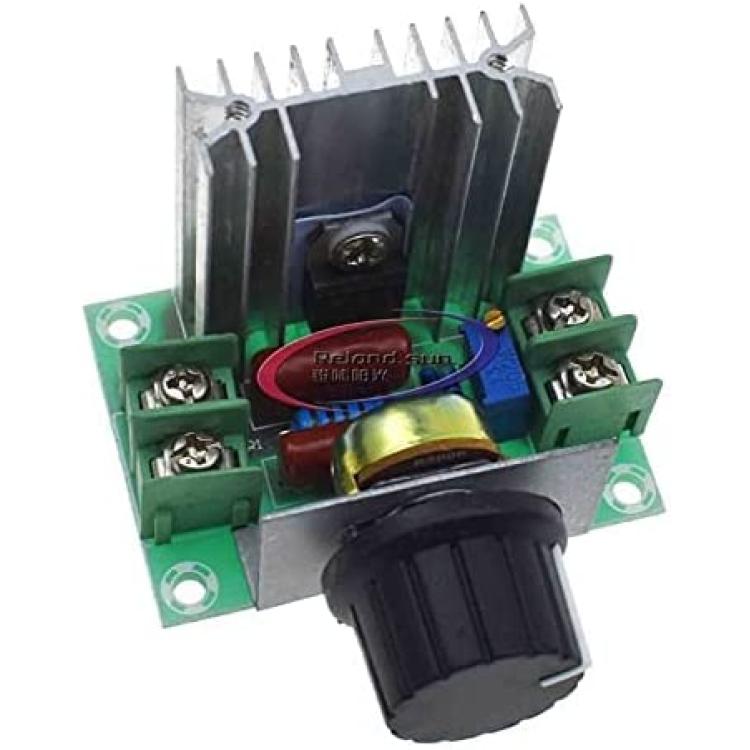

PWM XH-M141 Governor high Frequency Pulse Output controllable Silicon Motor Controller Heating Power Adjustment

parameter:

Operating voltage: AC 220V
Maximum power: 2200W
Voltage adjustment: AC 50-220V (the lowest output is adjustable)
Specification and size: high temperature resistant FR-4 circuit board, width 60x depth 45x height 40mm, rotating rod diameter 6mm

How to use:
     220V voltage is directly connected to the input terminal of this product, and the output terminal is directly connected to loads such as light bulbs. Rotate the potentiometer lever to adjust the brightness, speed, pressure and temperature; it is very convenient to use.
     This product uses a new two-way high-power thyristor, which solves the problem of overcurrent caused by too small resistance of the electric furnace wire when it is cooled;
It can easily adjust the output voltage of the mains power supply, and it can be adjusted between 50-220 volts for the use of electrical appliances.
Such as: electric stove, water heater heat adjustment, lamp dimming, small motor speed adjustment, electric soldering iron temperature adjustment, etc.
So as to achieve the effects of dimming, temperature and pressure. It can be used for large-scale electrical appliances with a power consumption of less than 2200 watts. Since the power is already large, general household electrical appliances or small factories are sufficient.
(The power of inductive or capacitive load should be reduced. The voltage regulator is equipped with two-way high-power thyristor, and the potentiometers are equipped with screw caps, which can be used without adding any components, which is very convenient and practical).
