Eioflia Motor Speed Controller DC 6V 12V 24V 28V 3A 80W 1203BB PWM Motor Driver Reversing Switch Speed Adjustable Motor Speed Controller,DC Motor Speed Controller,Motor Controller,12V Motor Speed
About this product
*SAFE: The circuit built-in a 3A fuse. Make the use of this dc motor speed controller safer
*PARAMETER: The input power range is DC 6-28V; the maximum continuous output current: 3A; the maximum output power: 80W

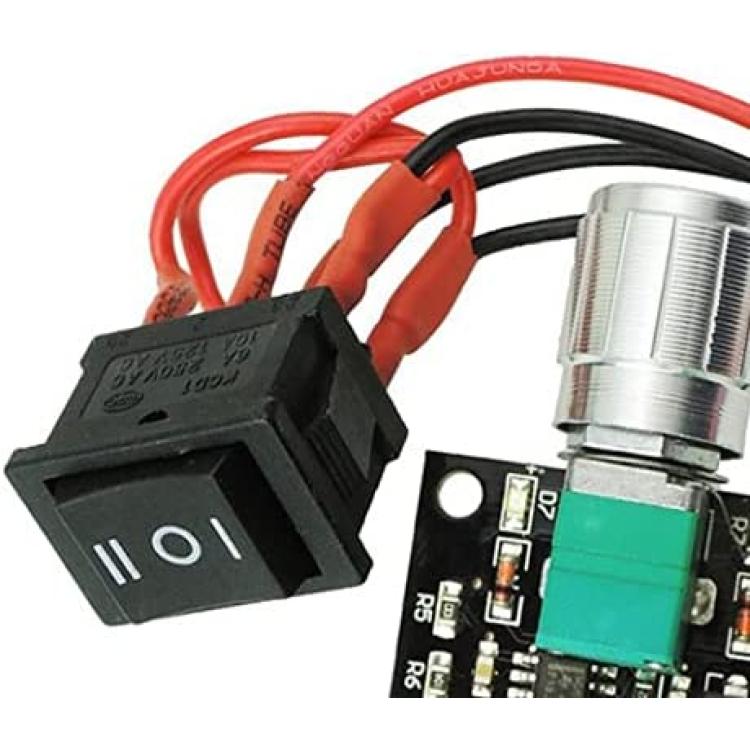

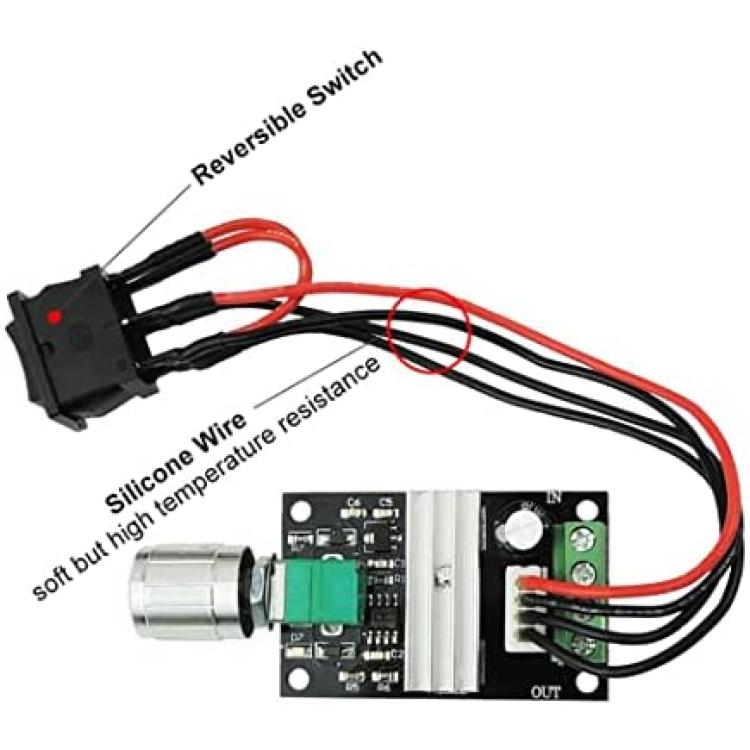

*BUILT-IN SWITCH: The Motor Speed Controller built-in switch. You can control the forward or reverse direction and the stop of DC motor by the switch
*PWM SPEED CONTROL: 1203BB DC Motor Speed Controller regulate the speed of the motor by adjusting Pulse-Width Modulation (PWM)
*APPLICATIONS: dc motor speed controller is suitable for the speed regulation of DC motor, fan, fish tank oxygen pump and other products
Description
Description
The DC motor regulator is designed with a knob, the knob is with switch function, you can turn off the controller by screwing it; Control the forward or reverse direction and the stop of DC motor by switch. It is precise and reliable with good long-term stability. With fixing screw hole, convenient for install and fixed. Small size, low power consumption, fast response.
Features
Motor speed controller
-Color: As shown.
-Material: Plastic.

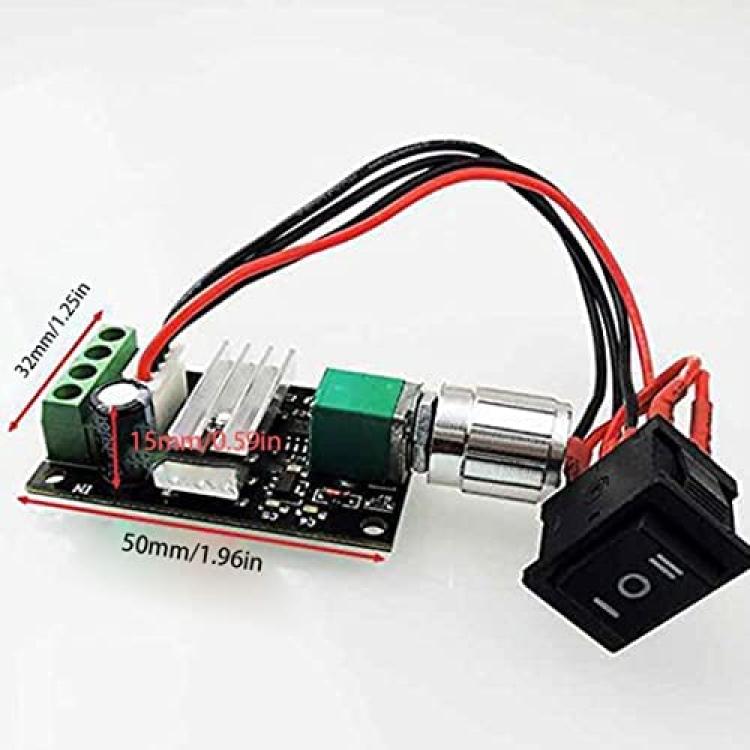

-Size: 3.2x5x1.5 cm/1.26x1.97x0.59 inch.
Net weight: 1.13 ounces
Operating instruction:

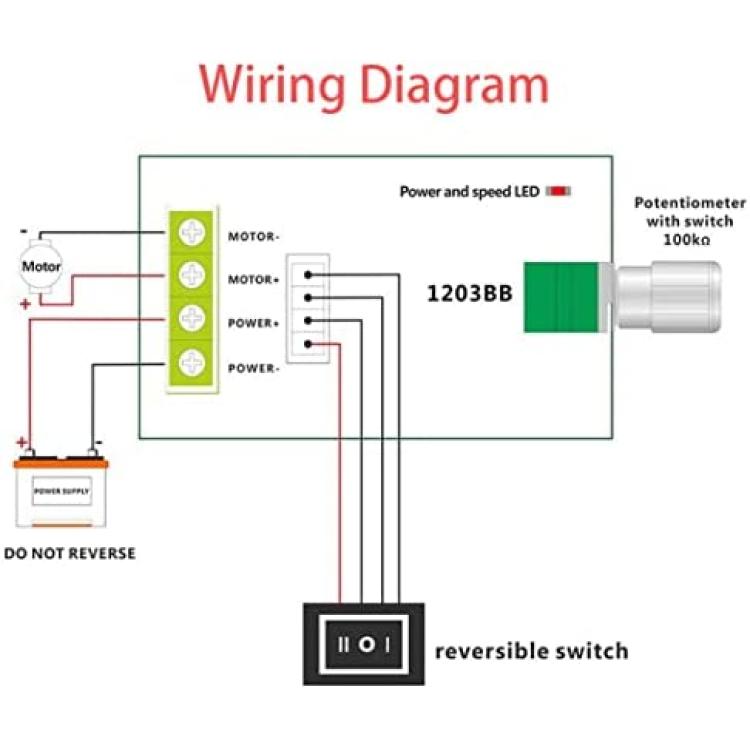

1. Before you're attempting to wire the controller, make sure that power is off.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Warning: Do not reverse positive and negative power loads. This will damage the controller.
1 * Motor speed controller
