DKARDU 1203BB 6V 12V 24V 28V DC Motor Speed Controller PWM 3A 80W Adjustable Motor Driver Switch DC Motor Driver with Screwdriver
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 3.94 x 1.97 x 0.79 inches; 1.76 Ounces
*Item model number : JK-US-282
*Date First Available : October 29, 2021
*Manufacturer : DKARDU
Description
Product description
Description
The 1203BB DC Motor Speed Regulator controls the speed of a DC motorby adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse. With connection of power supply and control the forward direction and the stop of DC motor by switch.
Features
- Material: Metal.

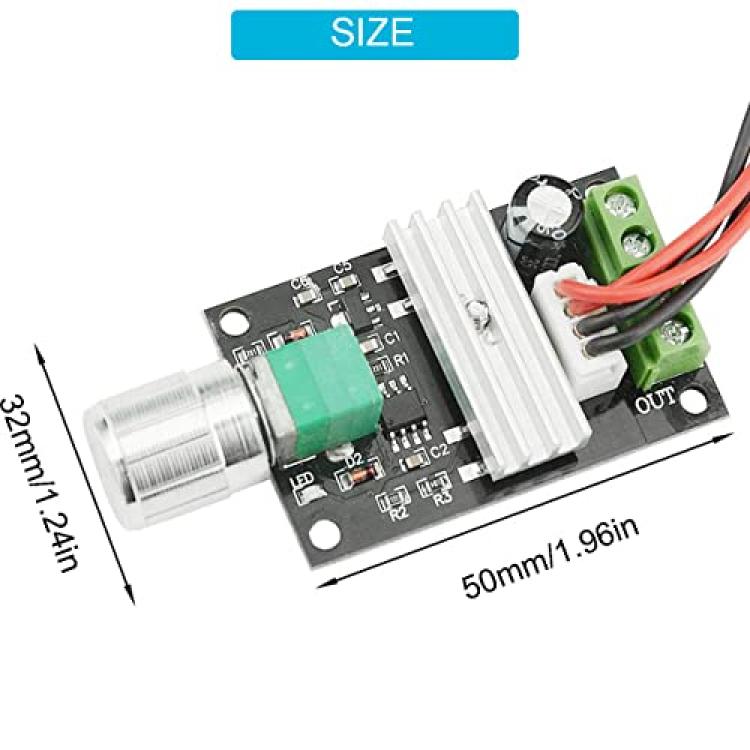

- Size: 50 * 32 * 15mm.

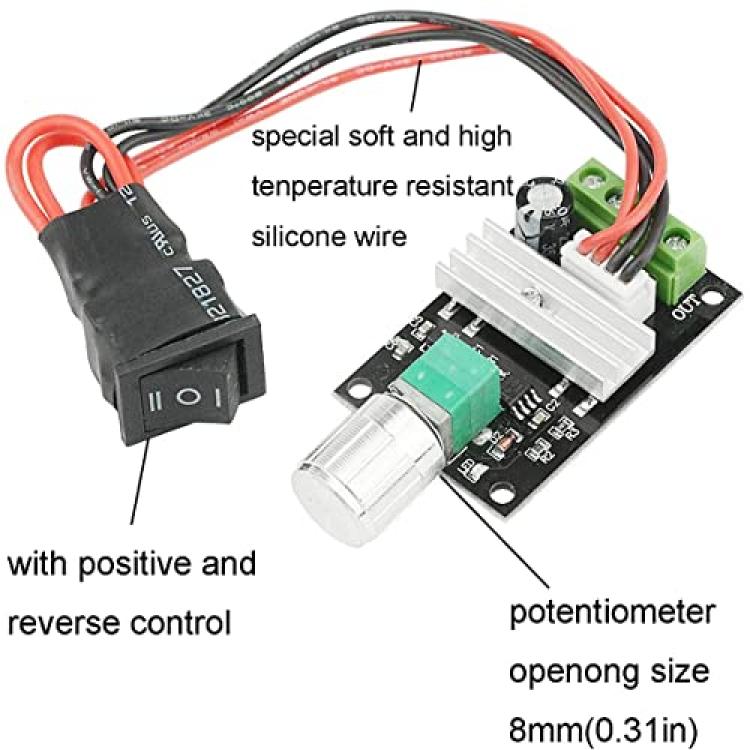

- The switch cable length 15cm.
Operating instruction
Before you attempting to wire the controller, make sure that the power is off.

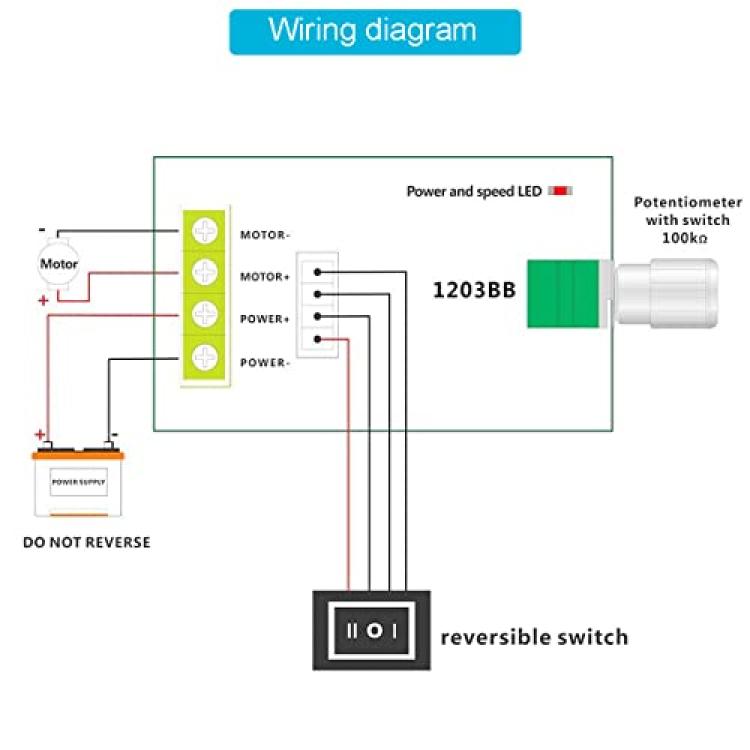

1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Warning: The DC motor speed controller is connected to a DC power supply, and never directly connected to household 220V AC power. This will damage the controller!

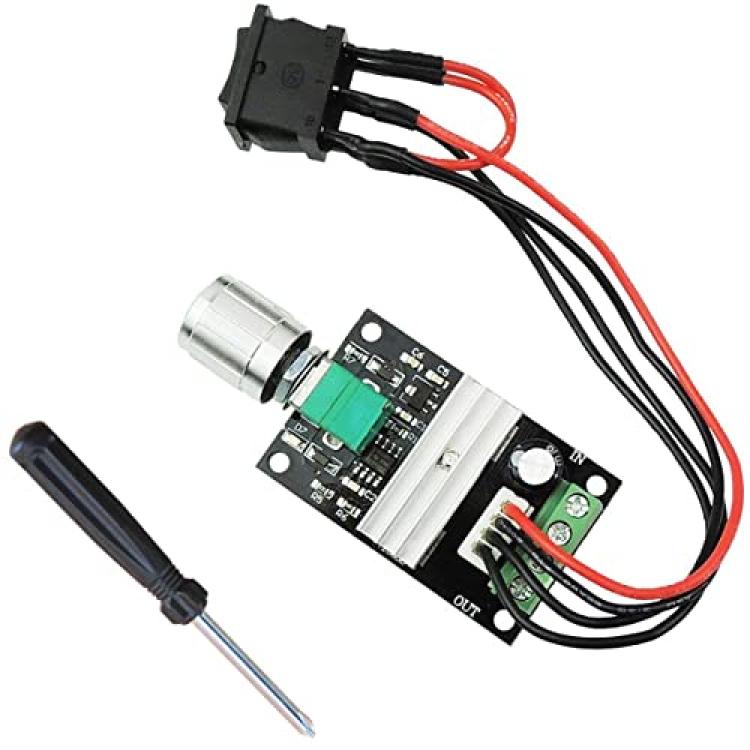

Product Includes:
1 x DC Motor Speed Controller Switch
1 x screwdriver
