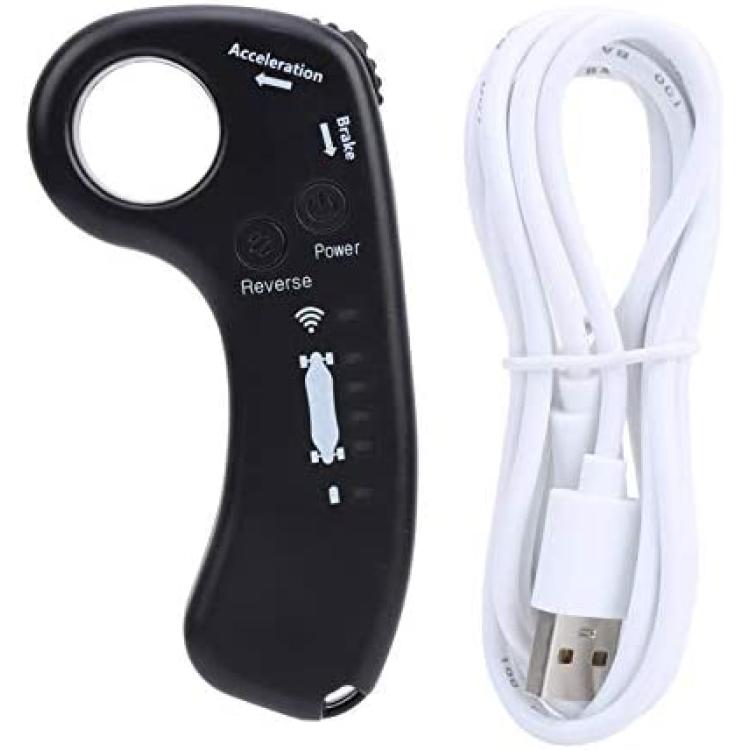

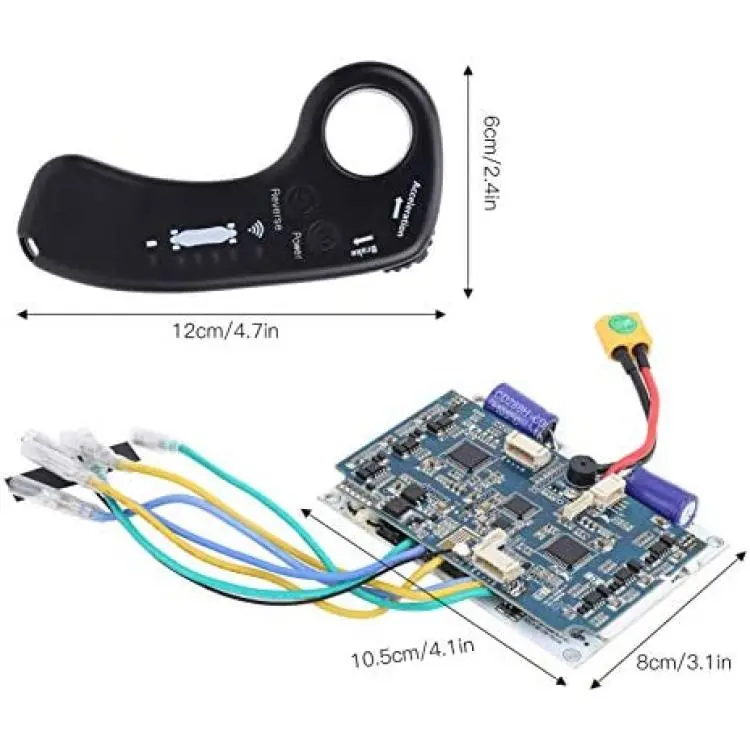

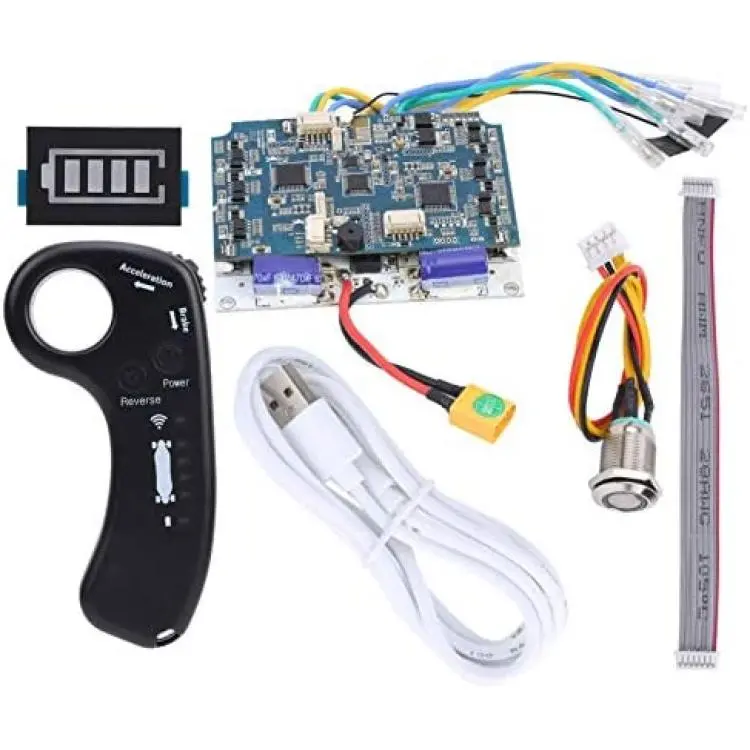

Alomejor Electric Scooter Remote Controller, Sinusoid Dual Drive Hub Motor Control Panel ESC for Electric Skateboard

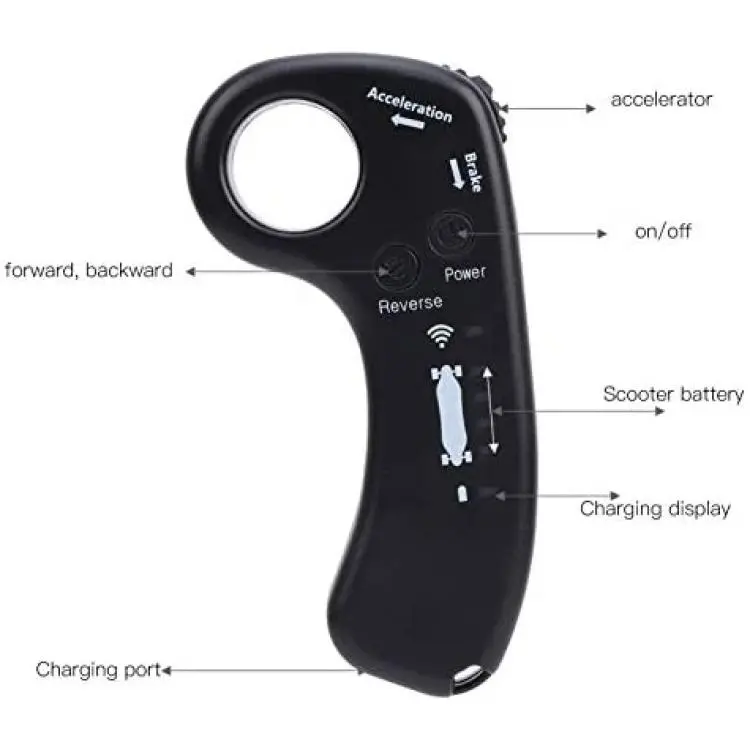

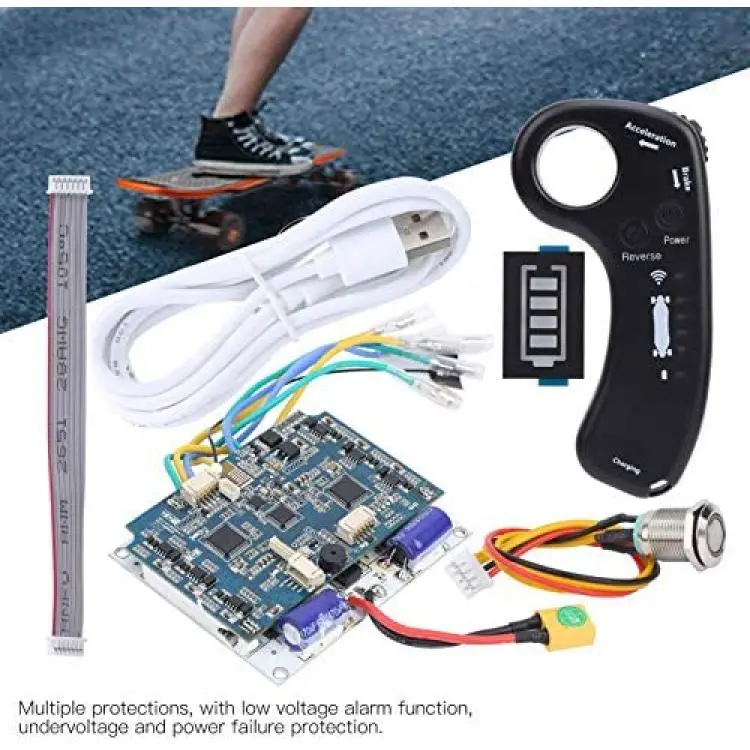

GOOD PERFORMANCE?With low speed and high torque. Two?way communication, you can check the power of the scooter through the remote control. Multiple protections, with low voltage alarm function, undervoltage and power failure protection. The sinusoid solution makes it more stable than ESC and not easy to burn out.COMPATIBLE WITH?Suitable for hub motor model airplane motor 5055 5065 6354 6364 6374 6384. Suitable for scooters, unicycles, balance scooters.(Taboo: Do not connect motor cables in parallel to allow single drive to drive two motors. )HOW TO CHOOSE THE RIGHT CONTROLLER?1. Confirm the voltage of your battery: 6 series battery is 25.2V, 7 series battery is 29.4V, 10 series battery is 36V. 2. Confirm the motor type: External motor, chain, belt drive, use belt controller, Hub motor, motor integrated wheel, please select the controller with the word ?hub?. 3. Confirm single-drive dual-drive or four-wheel drive.DESCRIPTION OF MATCHING SIGNAL BETWEEN REMOTE CONTROL AND MAIN CONTROLLER?1. Connect the main controller to the power supply. 2. Turn on the power, wait for two seconds and then press and hold the key for about 6 seconds, let go when the switch indicator flashes. 3. Turn on the remote control switch and use a small screwdriver to press the button in the small hole in the lower left corner of the remote control. 4. Turn off the remote control and turn it on for two secondsCONTROL MOTOR TYPE AND PERFORMANCE?Motor type Maximum power of motor Motor speed Can not connect the motor for hall DC Brushless Motor Within 650W Within 8000 rpm can not connect. Note: Different voltage, alarm voltage, protection voltage are different. Adopting the sinusoid scheme, the performance is more stable than the ESC, and it is not easy to burn out.Item type: Scooter Controller SetMaterial: Electronic components + ABSColor: As picture shownWeight: Approx. 280gDrive mode: dual system driveInduction method: for hallController type and performanceController TypesOperating voltage range Total power of controller Control electric quantity T2 wireless dual drive DC voltage 36V/24V 1300W 2Maximum power: 430W (36V)Speed: 4200 RPMMaximum speed: 35KM/HPower connector: XT60 male plugCarrying weight: ?120KGLong-distance distance: up to 20 metersProtection: overvoltage, undervoltage, overheating, stall, CW/CCW, adjustable speedCurrent: 12AVoltage: 36V, 10SRemote control built-in lithium batteryThe capacity of the remote control: 400MAHTotal length of remote control: Approx. 12cm/4.7inRemote control length: Approx. 6cm/2.4inCircuit board size: Approx. 10.5x8cm/4.1x3.1inApplication areas: scooters, unicycles, balance scooters1 x Scooter controller1 x Remote control1 x USB data cable2 x Accessories1 x Control panel
