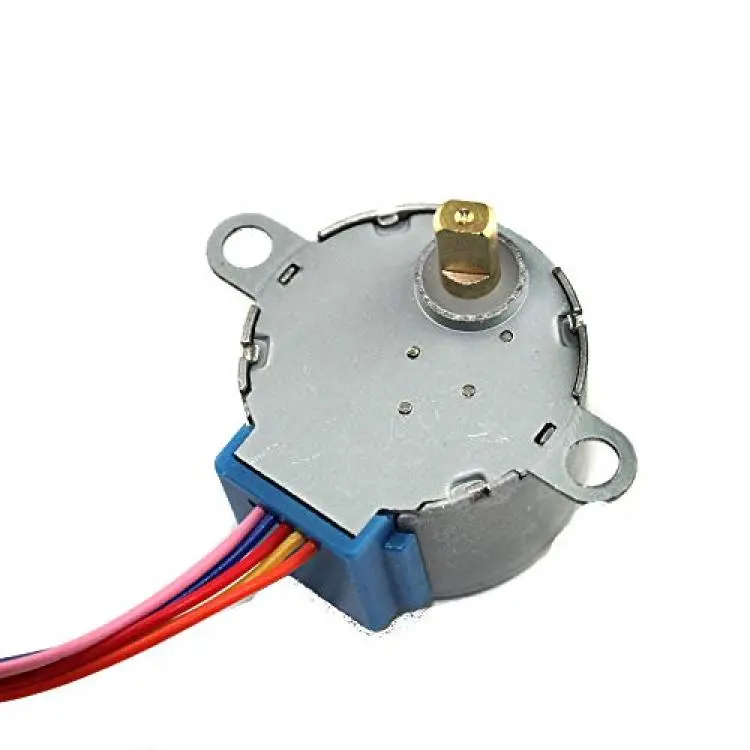

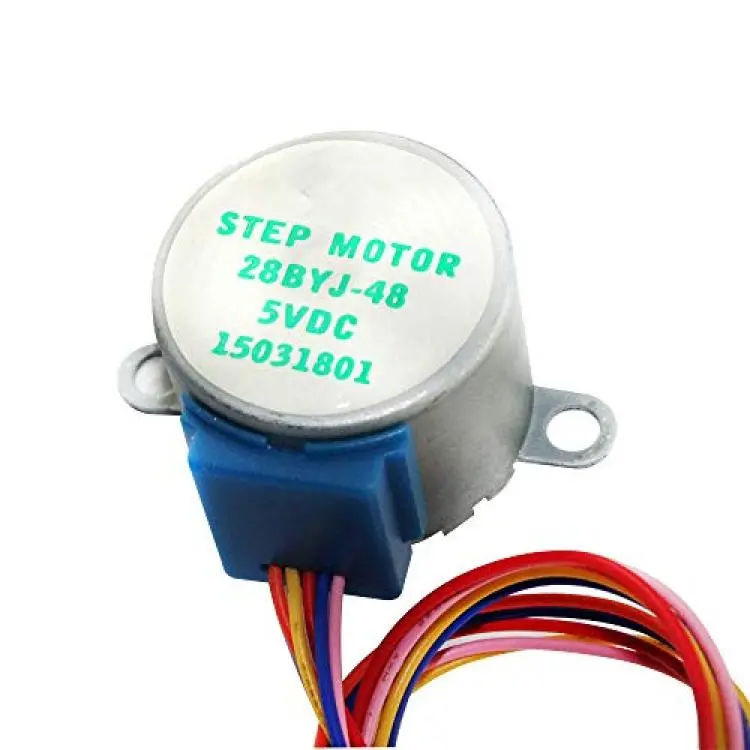

2 Pack Smart Electronics 28BYJ-48 5V 4 Phase DC Gear Stepper Motor
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Package Dimensions : 3.74 x 2.72 x 1.34 inches; 2.86 Ounces
*Date First Available : November 22, 2017
Description
Specifications:
Voltage: DC 5V
Length: 274mm / 10.8in ; Diameter: 28mm / 1.1in
Board Size: Approx. 29 x 21mm
Step Angle: 5.625x 1/64
Reduction ratio: 1/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Net Weight: 41g /set / 1.43oz
Package List:
2 x Step Motor
