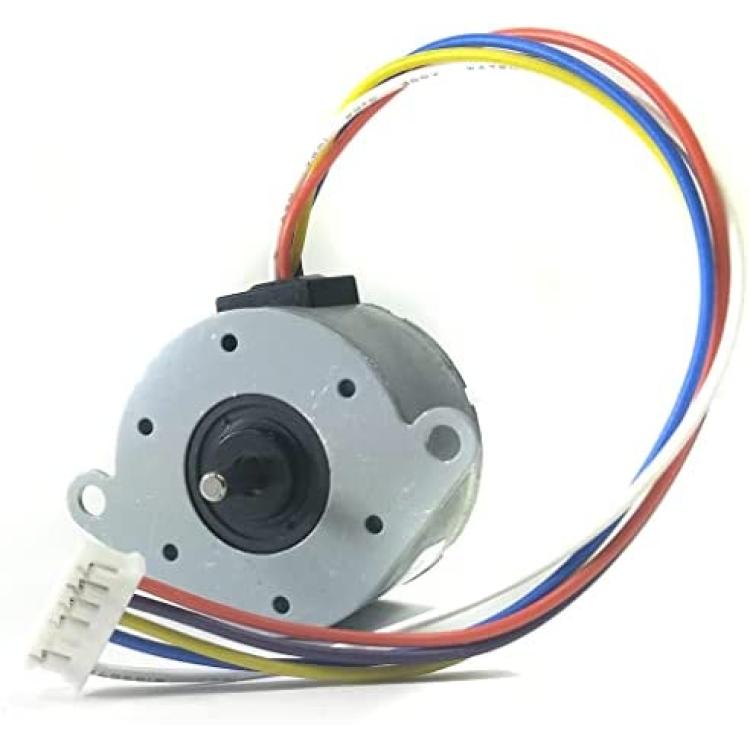

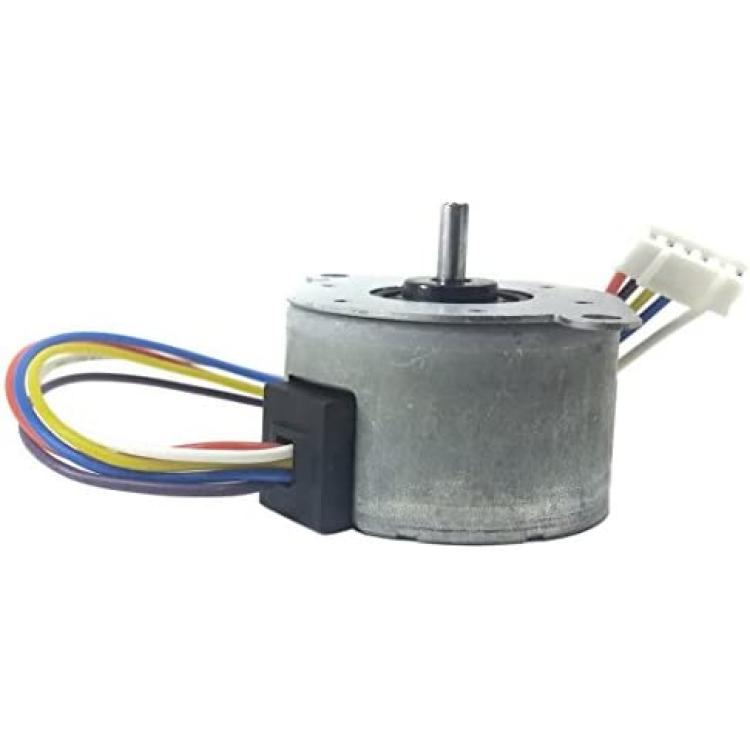

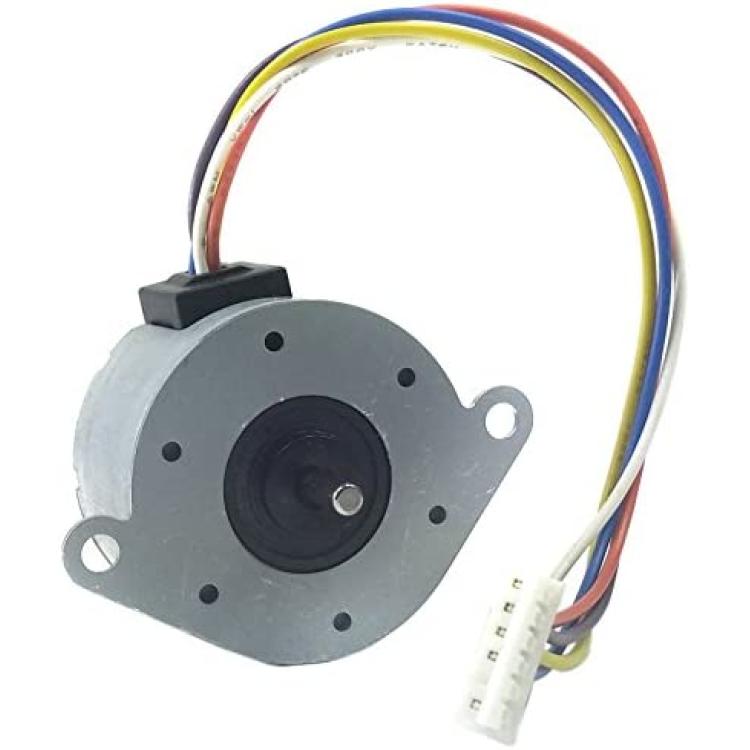

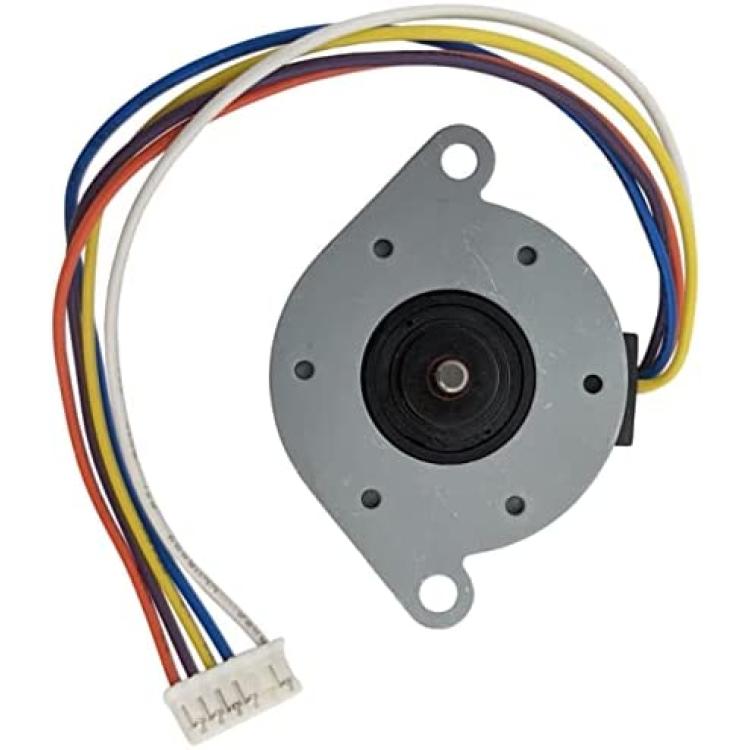

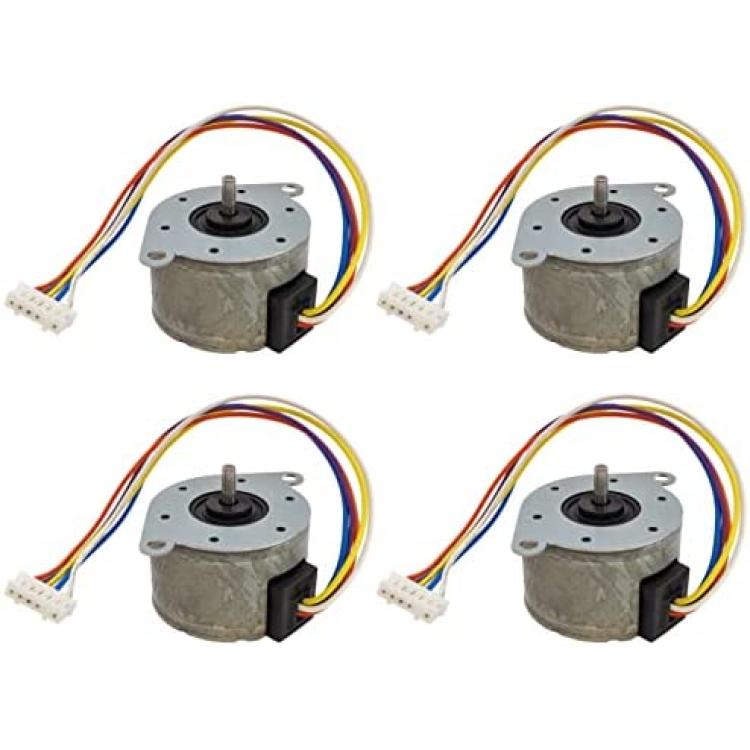

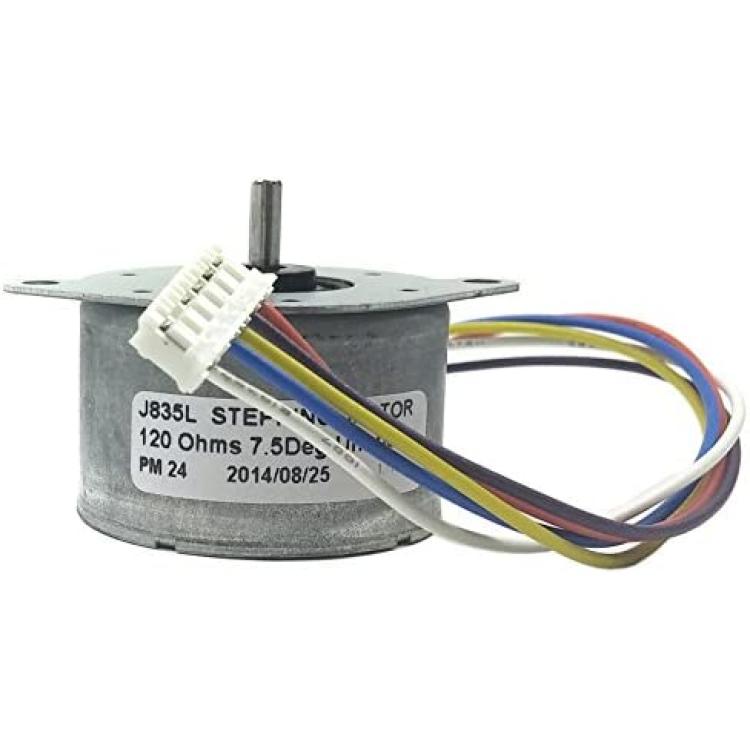

4 Pack Stepper Motor Unipolar, 120Ω Coil, 7.5 Degrees per Step, 5V DC by EX ELECTRONIX EXPRESS
About this product
*4 Pack 5V Stepper Motor Unipolar
*Dual Coil center tapped, 120 ohm coil
*7.5 degrees per step
*1.36" Diameter, 0.88" Height (not including mounting tabs or shaft)
*0.4" long shaft, 0.11" diameter
Description
4 Pack Stepper Motor Unipolar DC 5V
Dual Coil center tapped
120 ohm coil
7.5 degrees per step
1.36" Diameter (not including mounting tabs)
Distance between mounting holes: 1.64"
0.88" Height (not including shaft)
Shaft is 0.4" long, 0.11" diameter
Weight: 2.75 ounce
5 wire leads with connector
