PWM DC Brush Motor Speed Controller 30A 6.5V-55V Digital LCD Cycle Run Stop Timer Generator Driver Module Motor Cycle Timer Motor Equipment Accessories
Availability: Pre-Order, Inquiry Price
About this product

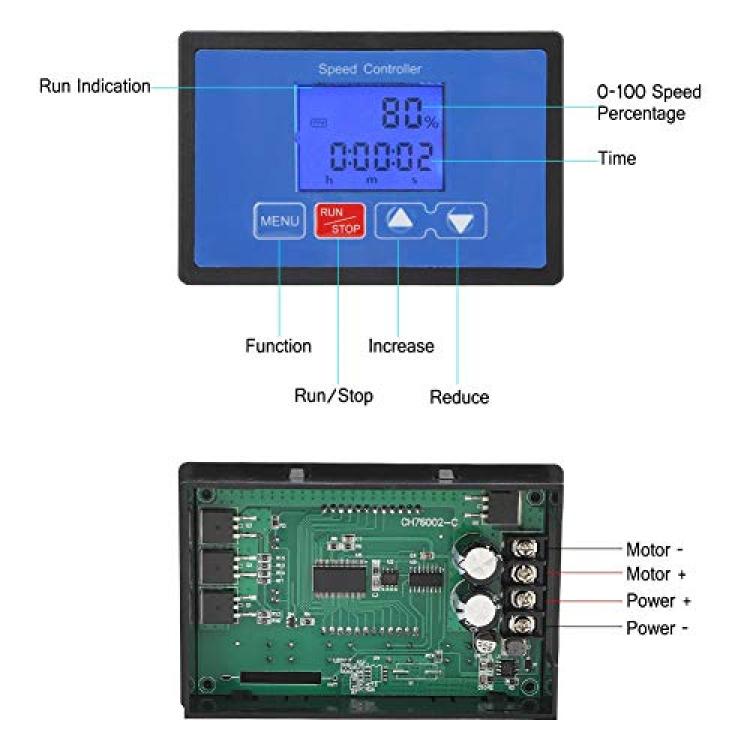

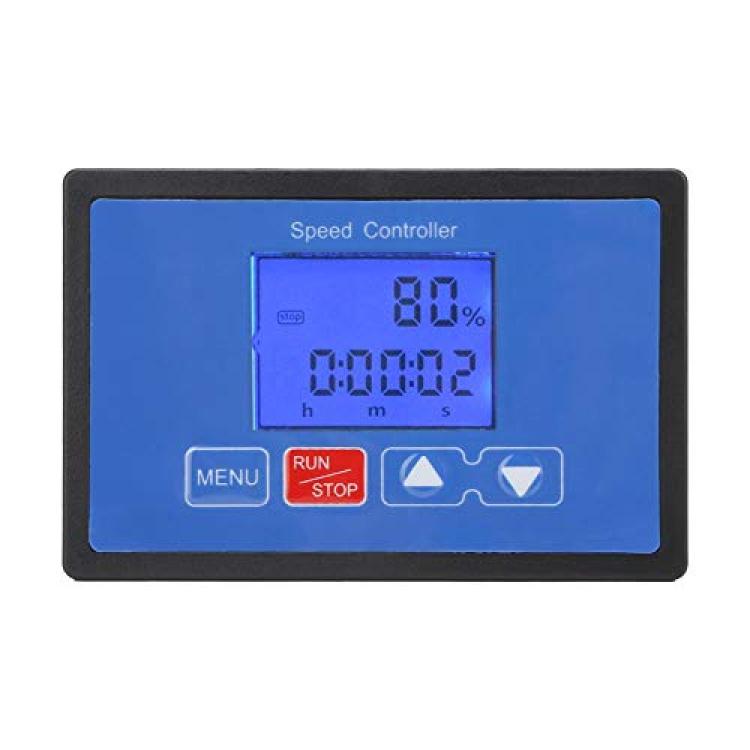

*【LED ELECTRONIC DISPLAY SCREEN】: Backlight LCD screen displays working time and 0-100% speed percentage.
*【AUTOMATIC DESIGN】 Can set slow run/stop time and automatic run/stop times.
*【MOTOR SPEED CONTROLLER】 The upper limit and lower limit of the speed can be set, change the speed by buttons rather than the potentiometers that is easy to damage.
*【SAFE AND RELIABLE】: DC brush motor speed controller can set the total working time, the motor stops when the time is up.
*【AUTOMATICALLY CYCLE】: Can set run time and stop time, repeatedly and automatically cycle run and stop.
Description
Specification:
Item Type: DC Motor Speed Controller
Input Voltage: DC6.5V-55V (the specific voltage must be equal to the rated voltage of the motor)
Output Voltage: Linear under load
Instantaneous Current: 30A
Continuous Current: 20A
Speed Regulation Type: Current Regulation
Speed Adjustment Method: Jog + -
Wireless Remote Control: Not supported
Timing: Yes
Slow Run Slow Stop: Can be set
Speed Digital Display: 0-100 percentage
Speed Range: 0-100%
Control Frequency: 15KHZ

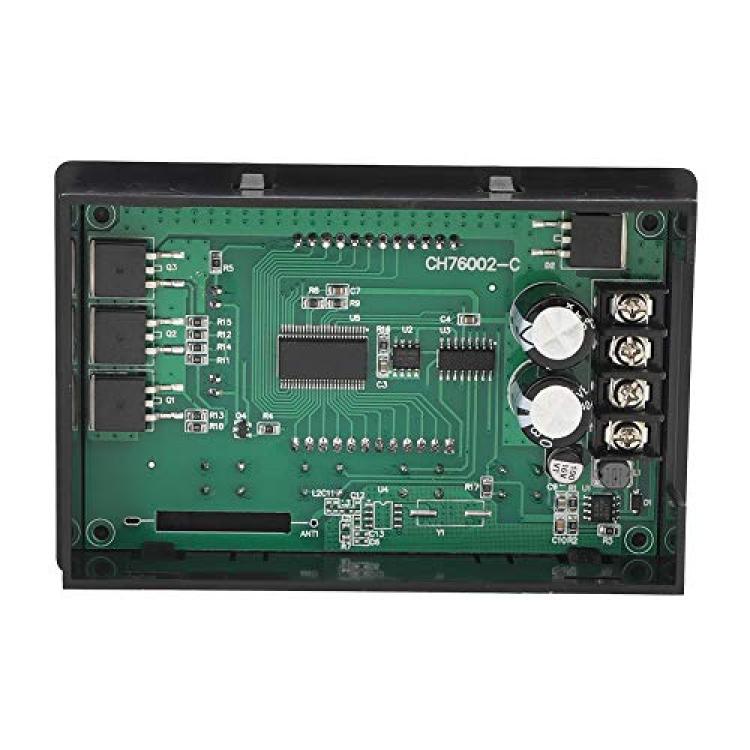

Connection Type: Fence type terminal
Support Motor: Brush Motor

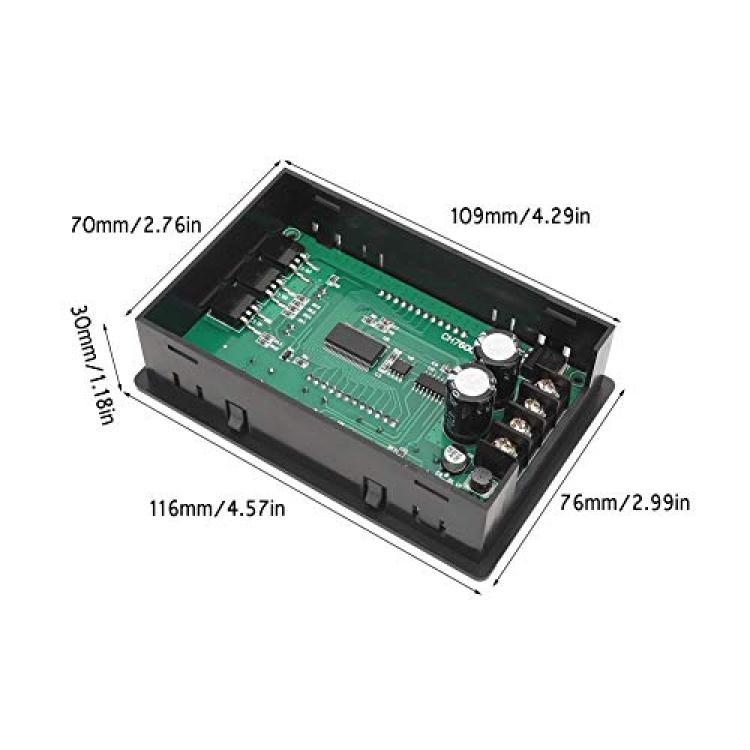

Module Size: 116x76x30mm / 4.57x2.99x1.18in
Mounting Size: 109x70mm / 4.29x2.76in
Installation Method: Panel type
Function:
1-2-3-4-5-6-7-8-9 function settings are as follows:
Slow Run Time Setting Function 1: 000-100, slow start to 100% speed, adjustable time 0-10s, default is 1s.
Slow Run Time Setting Function 2: 000-100, slow stop, adjustable time 0-10s, default is 1s.
Speed Lower Limit Setting Function 3: 000-080, adjustable minimum speed 0-80% and less than the maximum speed setting value, default is 0.
Speed Upper Limit Setting Function 4: 000-100, adjustable maximum speed 0-100% and greater than the minimum speed setting value, default is 100%.
Acceleration/Deceleration Value Setting Function 5: 001 002 005 010 015 020 025, Each time the key increase/reduce is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Motor Running Time Setting Function 6: 1s to 99h 59min 59s, default is 99h 59min 59s.
Motor Stop Time Setting Function 7: 1s to 99h 59min 59s, default is 99h 59min 59s.
Cycle Times Of Motor Run Stop Function 8: Adjustable 1-999 times, default 999 times
With/Without Timing Selection Function 9: 0: Without, 1: With, Default 1 With
Package List:
1 x Motor Speed Controller
