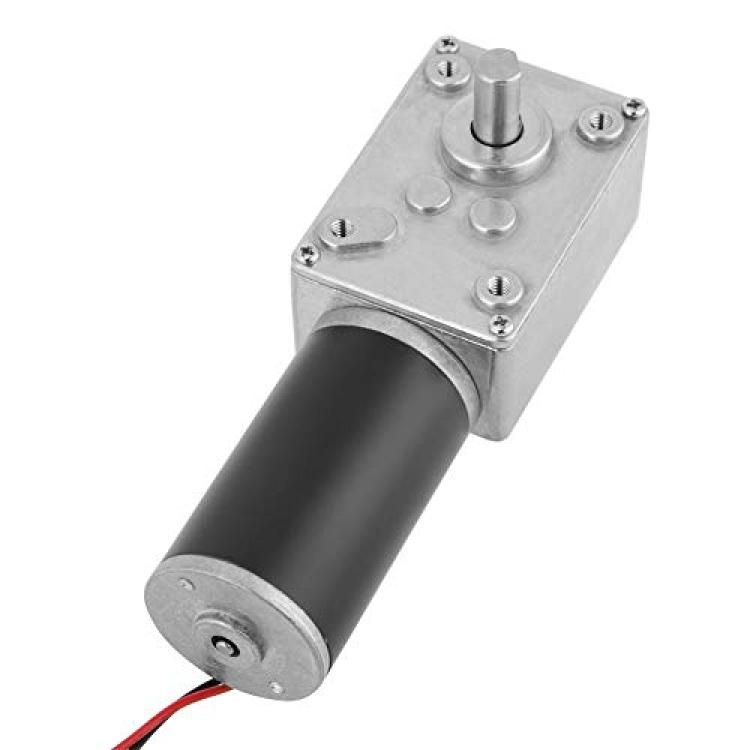

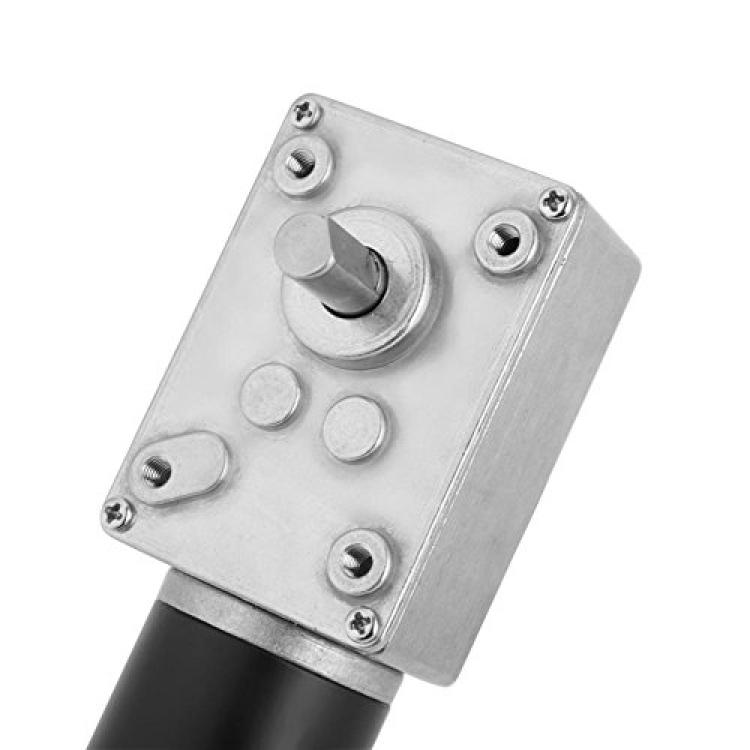

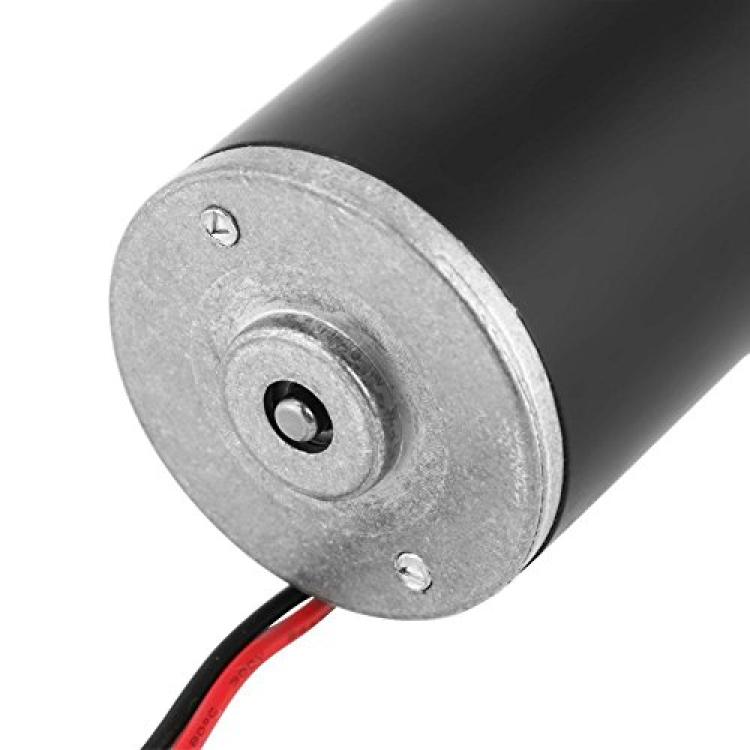

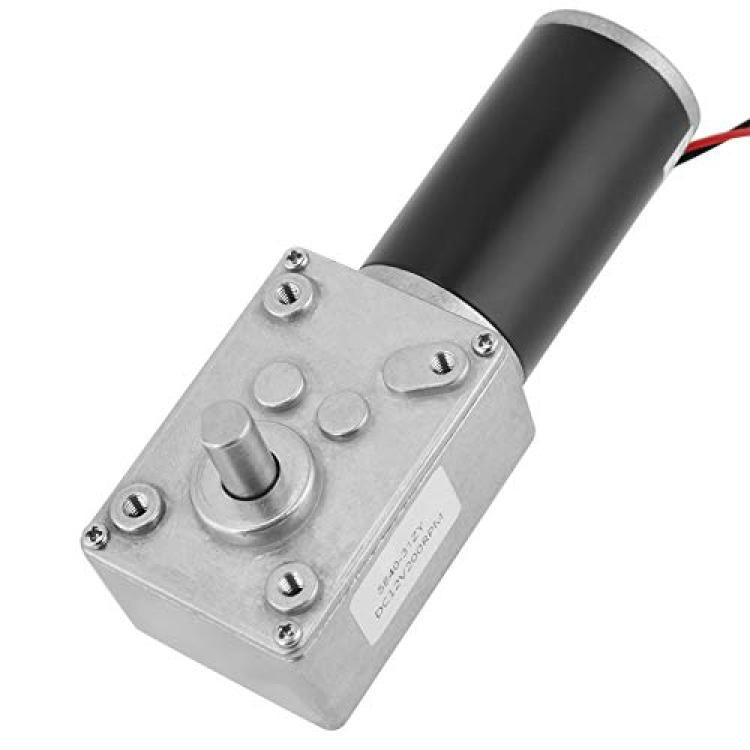

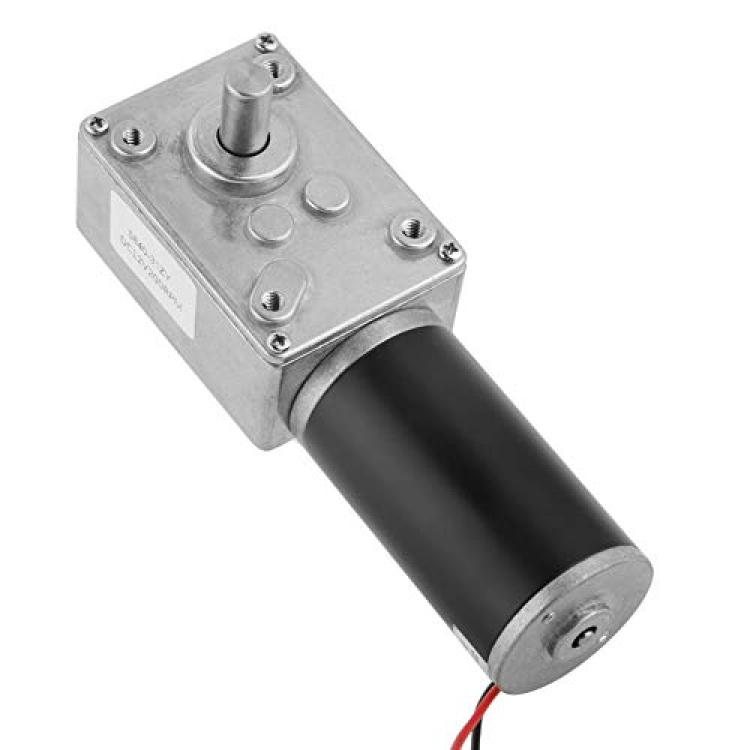

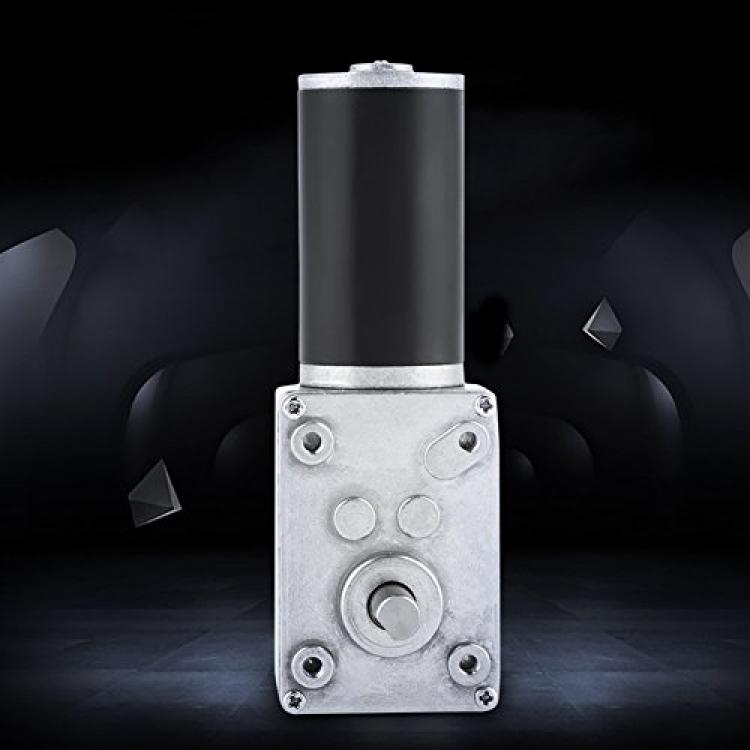

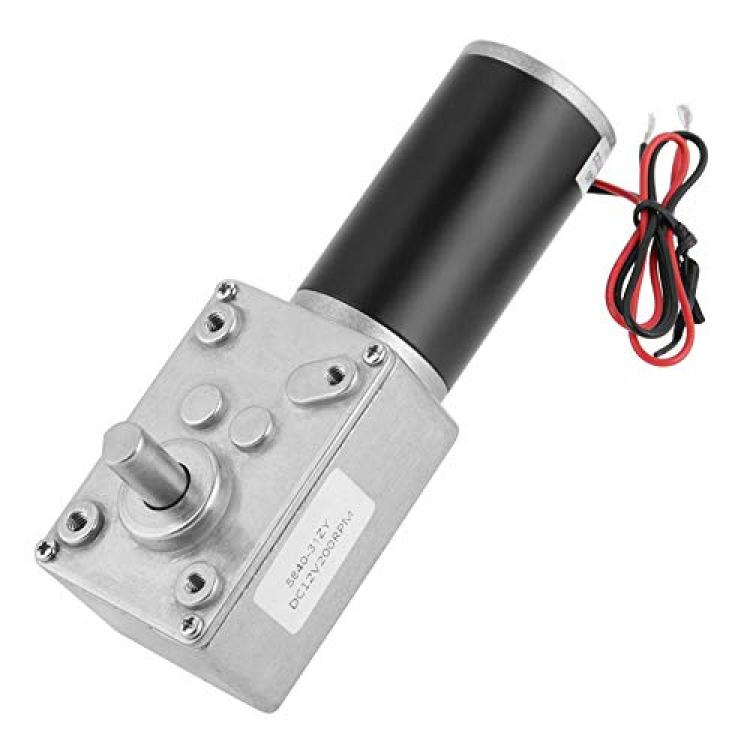

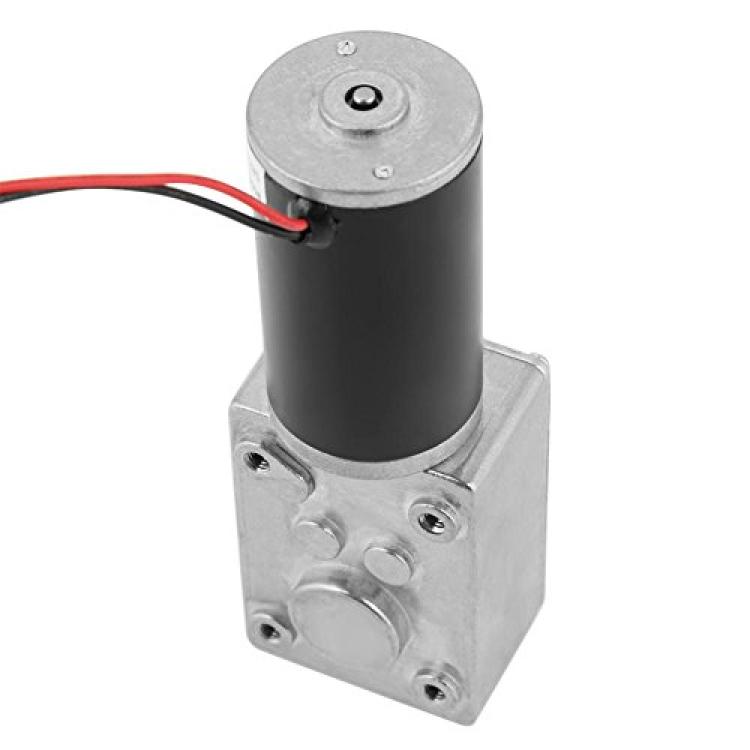

Geared Motor, 12V 200RPM 584031ZY Permanent Magnet DC Turbo Worm Geared Motor Reduction Motor

Features:
100% Brand New And High Quality
This Is Dc Worm Gear Motor, Cw Ccw Direction Can Change By Different Connection. The Worm Gear Motor With SelfLocking, In The Case In The Absence Of Electric Motors, The Output Shaft Is Not To Move, That Is SelfLocking. The Gearbox Output Shaft Direction Vertically With Motor Shaft, So The Entire Body Is Very Short, Widely Used By Which Installation Dimensions Have Strictly Required. Used In Electrical Appliances Including Remote Control Curtains, Paper Shredders And Copying Machines.

Specifications:

Model: 5840-31Zy
Rated Power: 21W
Rated Voltage: 12V
Rated Current: 2A
Rated Speed: 200 Rpm
Rated Moment Of Force: 7Nm

Wiring Method:

Cw: Red: "+", Black: ""

Ccw: Red: "", Black: "+"
Efficiency: 80%

Motor Length: 11.5Cm / 4.53In

Weight: 364G

Package Included:

1 X Geared Motor
