DS18B20 Temperature Sensor Module Kit with Waterproof Stainless Steel Probe for Raspberry Pi
Availability: Pre-Order, Inquiry Price
About this product

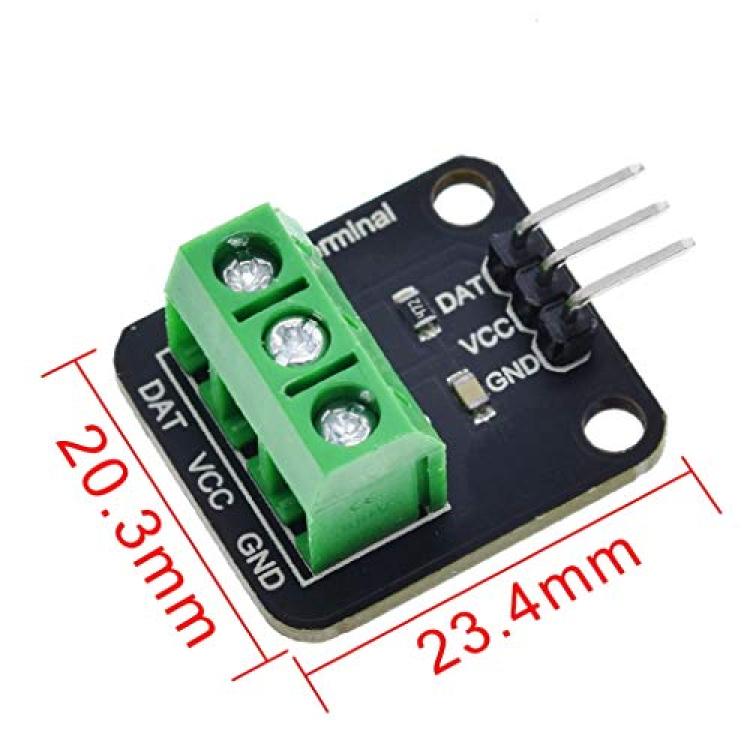

*Simplify connecting a waterproof temperature sensor to your project with this adapter module kit
*Pull-up resistor included on the adapter module, an external resistor is not required to connect directly to the GPIO of the Raspberry Pi
*Waterproof digital temperature sensor DS18B20 on 100cm cable with adapter module
*Measure the temperature directly in water or soil
*DS18B20 Wiring: Red = VCC, Yellow = Data, Black = GND
Description
Features
? Waterproof digital temperature sensor DS18B20 with adapter module
? Pull-up resistor included on the adapter module, connect directly to the GPIO of the Raspberry Pi
? Measure the temperature directly in places like water or soil
? Single-bus communication
? Temperature sensor supply voltage: 3.0V ~ 5.25V
? Temperature range: -55°C ~ +125°C degree

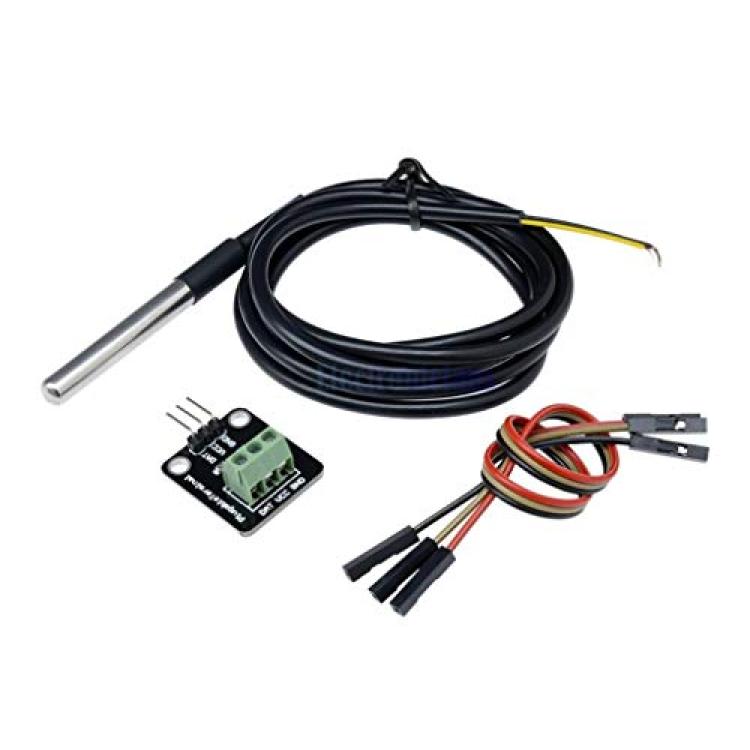

Package Includes

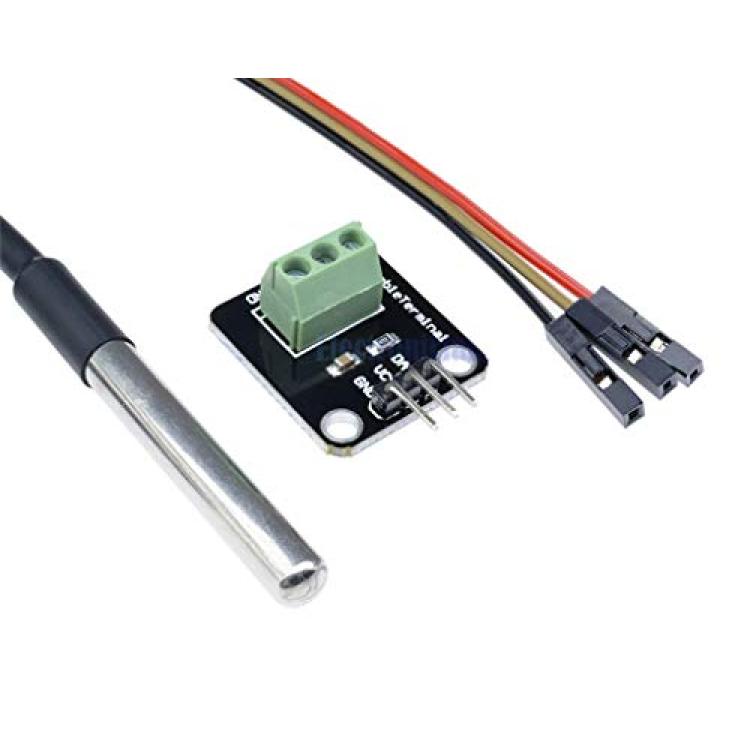

? DS18B20 temperature sensor in a waterproof casing on 100cm cable
? Adapter module
? Three female to female jumper wires
? GPIO Reference Board for The Raspberry Pi
Connection information

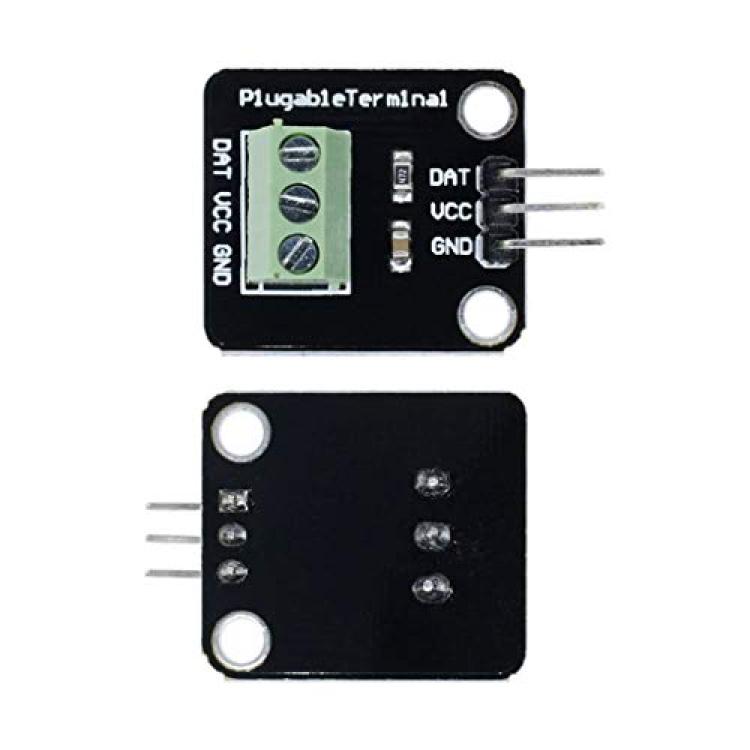

? Wiring from the temperature sensor to the adapter board
DAT = Yellow
VCC = Red
GND = Black
? Wiring from the adapter board to the Raspberry Pi
DAT = To the Raspberry Pi GPIO pin 4
VCC = To any 3.3V pin on the Raspberry Pi GPIO header
GND = To any GND pin on the Raspberry Pi GPIO header
