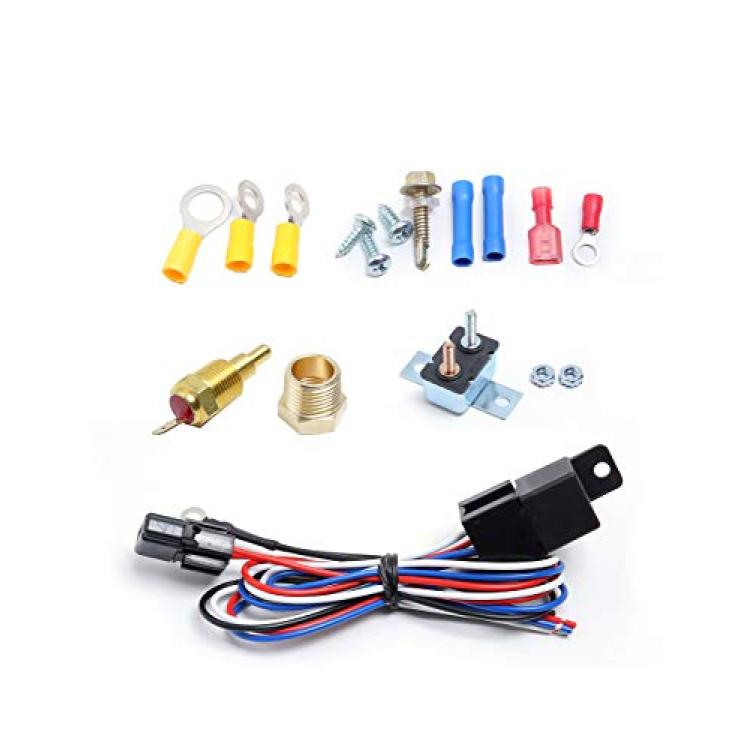

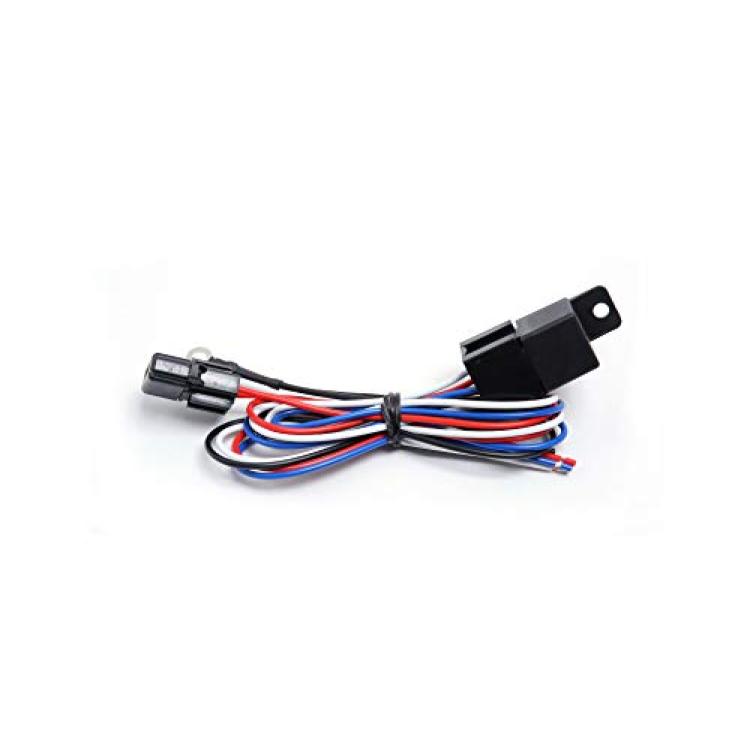

Atublan Engine Electric Cooling Radiator Fan Thermostat Temperature Switch Relay Kit,175-185 Degree Temp Sensor Atublan Temperature Switch 40 Amp Sensor Relay kit

Specification:

Voltage: 12V DC

Material: Plastic and Metal

Package Box Size: 13.5 x 9.5 x 7.5cm (L x W x H)

Cable Length: approx.165cm

Quantity: Pack of One Set

Installation Notes?

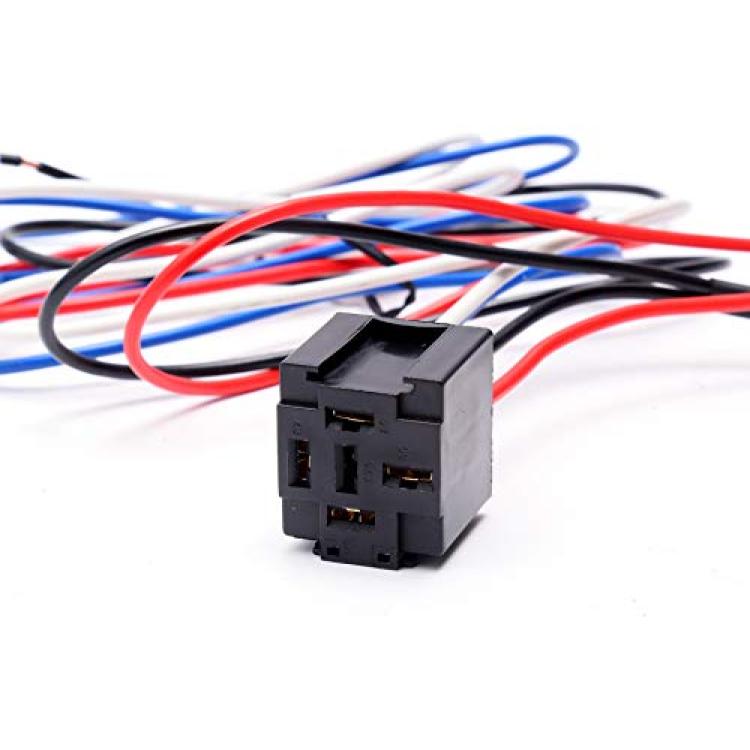

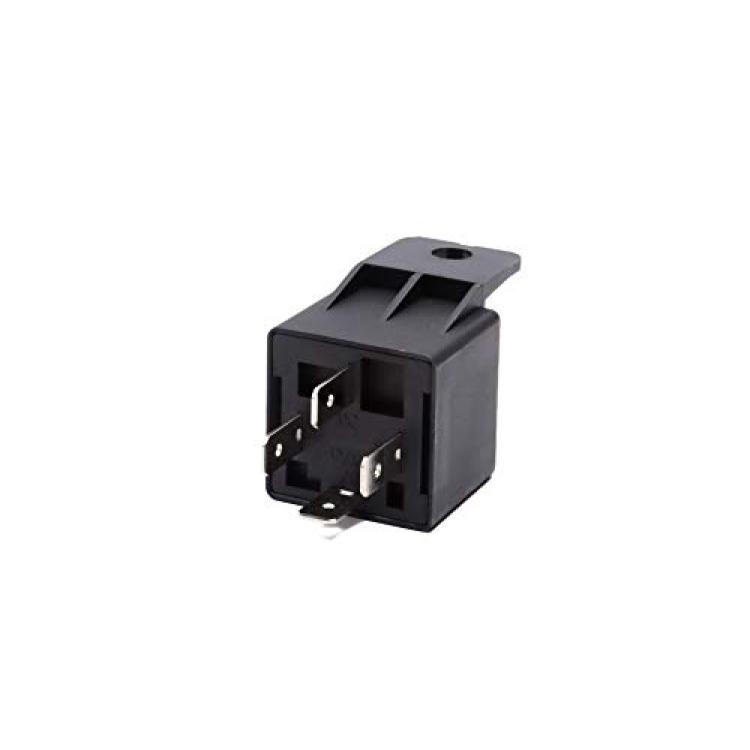

1. Mount the relay under the hood in a convenient location as to the fan as possible.

Notice: Don't use the teflon tape or thread compoud on the thermostat or adaptor. For proper operation, the thermostat must ground threough the threads to the engine and the engine must be ground.

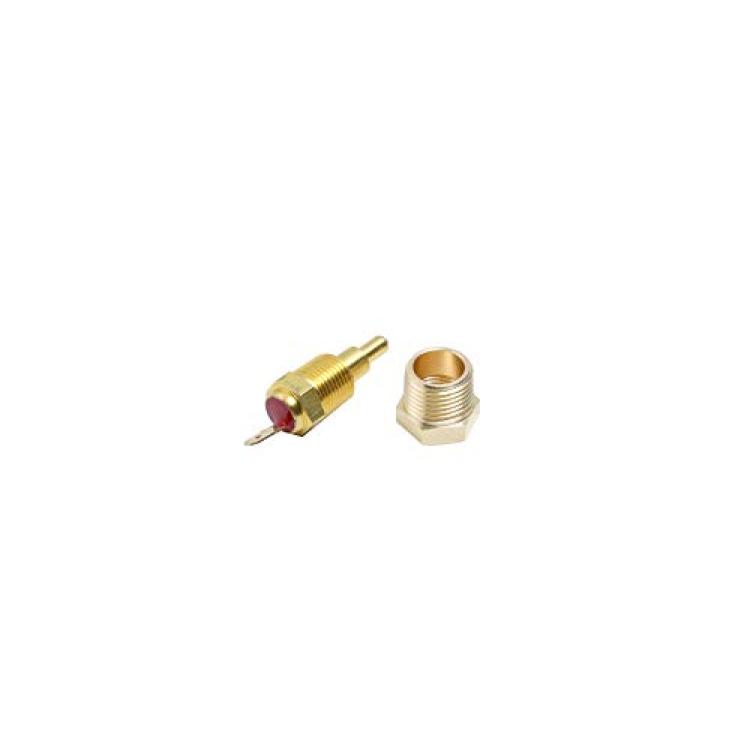

2. Install thermostat into the head or intake manifold. Route the black wire to thermostat and cut to length. Crimp the red terminal onto the black wire and attach to thermostat.

3. Route and connect the red wire to the fan + terminal or power wire coming from the fan motor printed to electric fan.

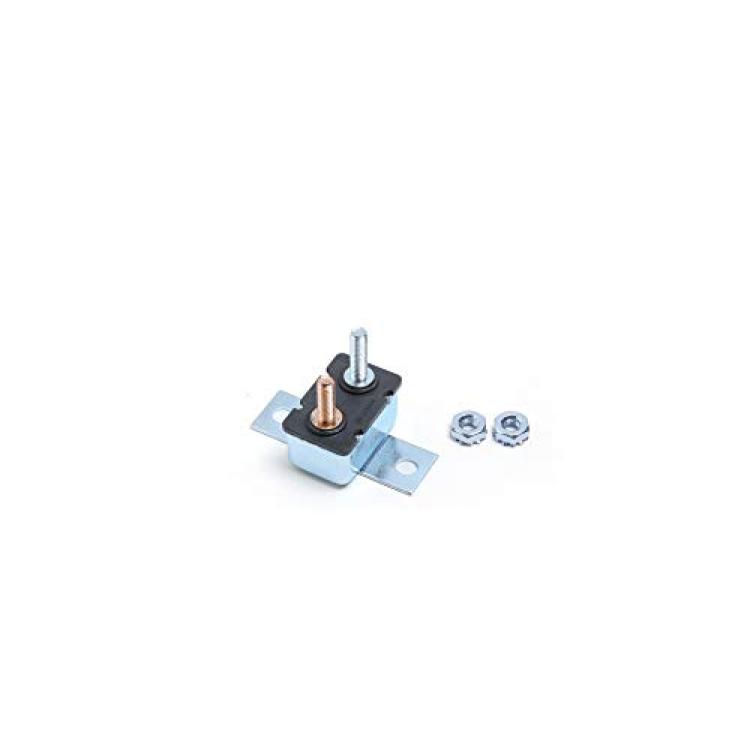

4. Mount the circuit breaker provided in a convenient location as close as possible to whichever power source(battery or large terminal on the starter solenoid)you are using for the fan relay.

5. Cut to length and install using a small yellow ring terminal. With another small yellow ring terminal take the remaining red wire and connect the unused post on the circuit breaker to the battery source. This wire is printed to battery / constant hot.

6. Route the brown wire to the ignition switch or the fan switch whichever is more convenient.

Installation tips:

1.Turning off the engine, replace the new cooling fan temperature switches after the water in engine radiator cooled to the room temperature.

2.Avoid the external high heat source after installation.

3.Avoid sprinkling water on surrounding auto parts during the installation.
