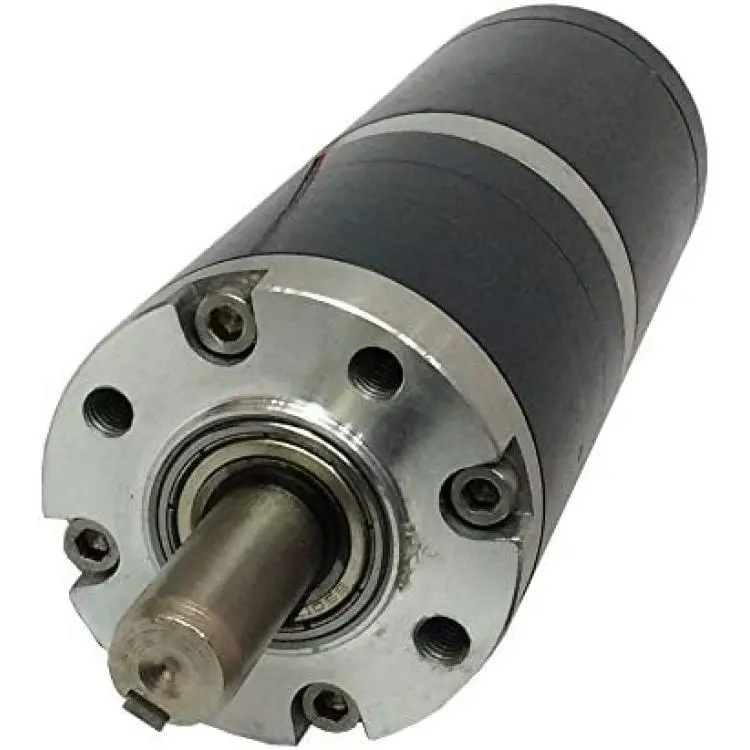

12V Electric DC Planetary Gear Motor 50 RPM Diameter 50mm 12mm Out Shaft with Metal Gearbox for Robot Motor
About this product
*✔Rated voltage: DC12V; No-load speed: 50RPM; Rated torque: 25kg.cm; stall Torque: 69kg.cm;
*✔Reduction ratio: 1/104; Rated Current: 2.7A; Certification: CE; Direction of rotation: CW/CCW;
*✔Total Gear Motor Length(Approx.): 145mm/ 5.7"; Out Shaft: 12*28mm / 0.47" x 1.1"(D*L);
*✔Material: Metal, Electronic Parts; Keyway: 19*4mm / 0.748" x 0.157"; Commutation: Brush;
*✔Package: 1PCS x DC Planetary Geared Motor; there are many other models of this motor in store, if you need, pls contact us.
Description
Technical data:
Product Name:DC Planetary Gear Motor;
Rated Voltage:DC 12V;
Rated Current: 2.7A;
No-load Speed: 50RPM;
Rated Torque: 25KG.CM

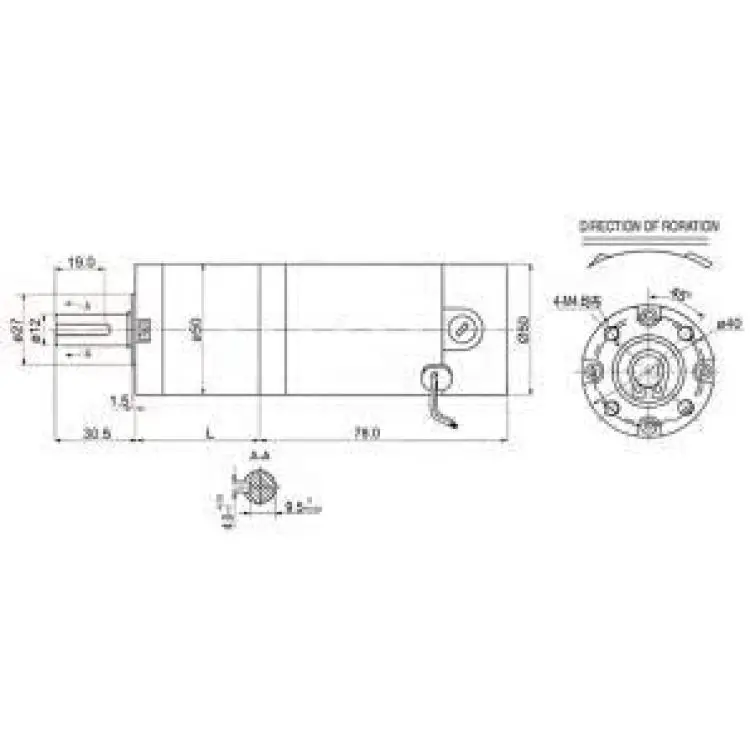

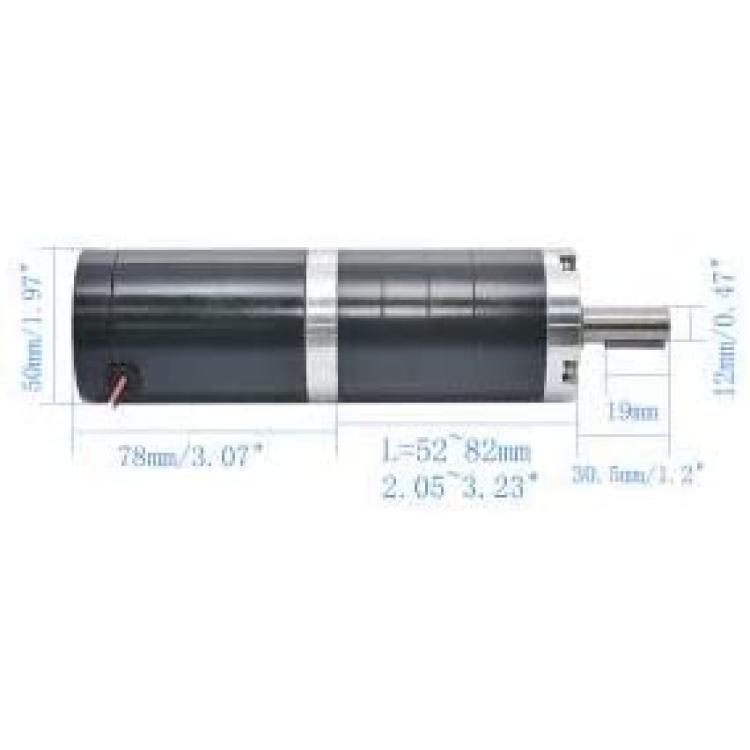

Total Gear Motor Length(Approx.) : 145 mm/ 5.7"; Out Shaft : 12*28mm / 0.47" x 1.10"(D*L);
Keyway: 19*4mm / 0.748" x 0.157"
Material : Metal, Electronic Parts;
1.Small size dc gear motor with low speed and big torque
2.50mm gear motor provide more than 50kg.cm torque and more reliable
3.Suitable to small diameter, low noise and big toque application.
Application: Safe box, Face tissue, Robotics,Valve, Coffee machine, Medical machine,
solar tracker machine, Currency detector, wind energy equipment, agricultural equipment.
Pls note: Speed of 10% of the error is within the normal range.
