Wind Leaf Positioning Accessories for Specific AC Fan Motors YZF18-25

Wind Leaf Positioning Accessories for Specific AC Fan Motors YZF18-25

Name: Wind Leaf Positioning Accessories for Specific AC Fan Motors YZF18-25
Brand: ‎Retafe
SKU: MM2699
Availability: InStock

Brand: ‎Retafe
Product Code: MM2699
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

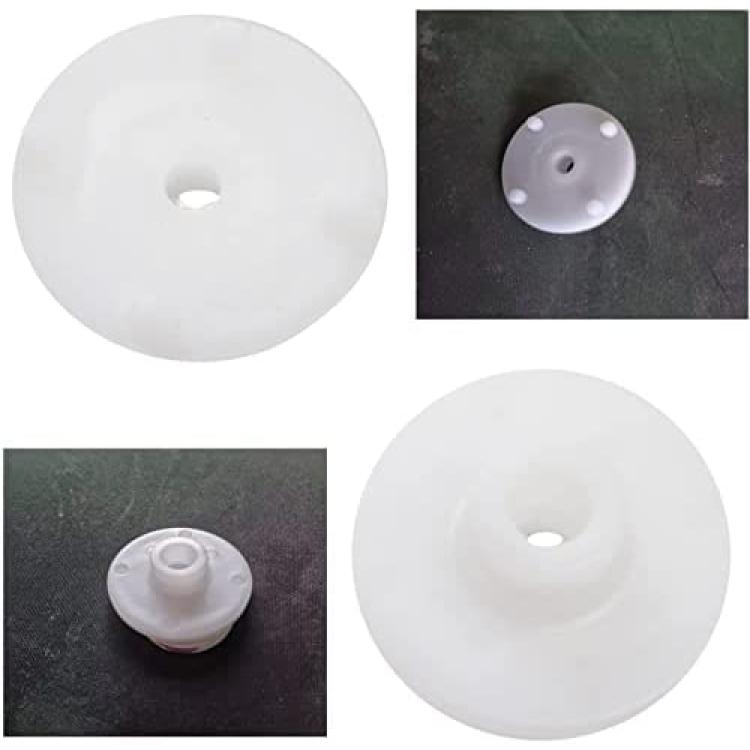

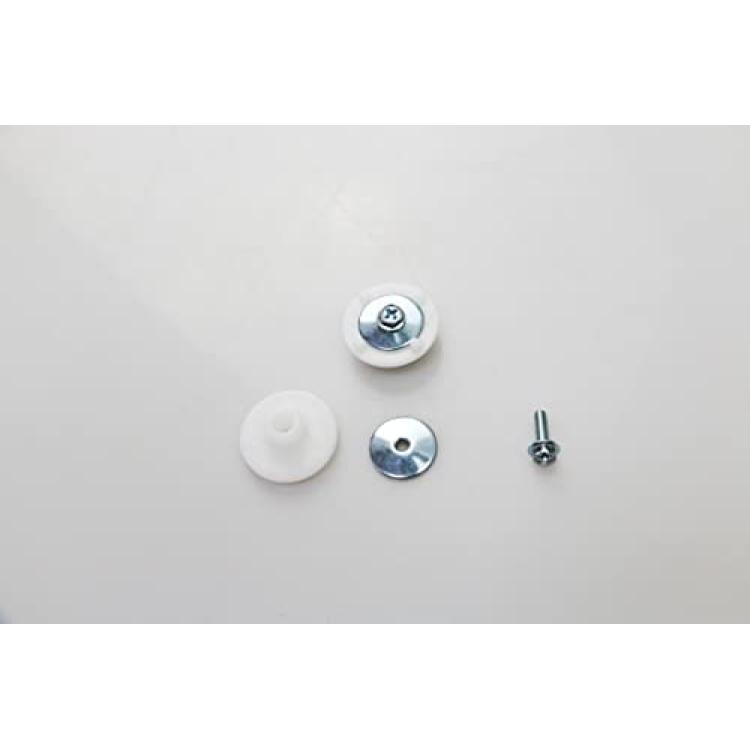

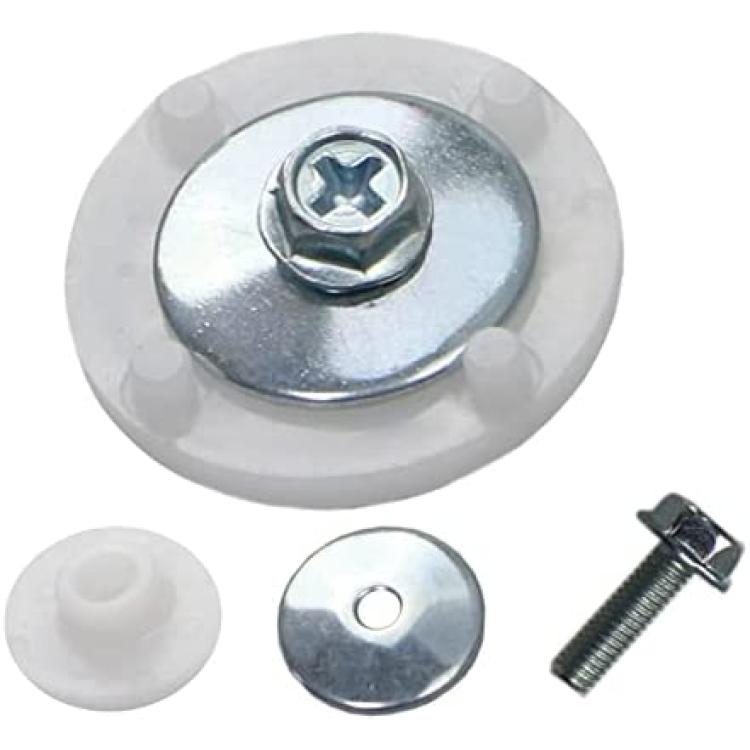

*Fan Motors Accessories, including fan positioning blocks, screws and special metal spacers, dedicated to Shaded Pole Motor YZF series

*Fan positioning blocks use high-quality POM plastic, high melting point, high mechanical strength, acid and alkali resistance and stability, long-term market application has verified its good reliability and durability

*Mounting screws and special compression gaskets have been well rust-proof, and can be used in certain humid environments and environments with large oil fume

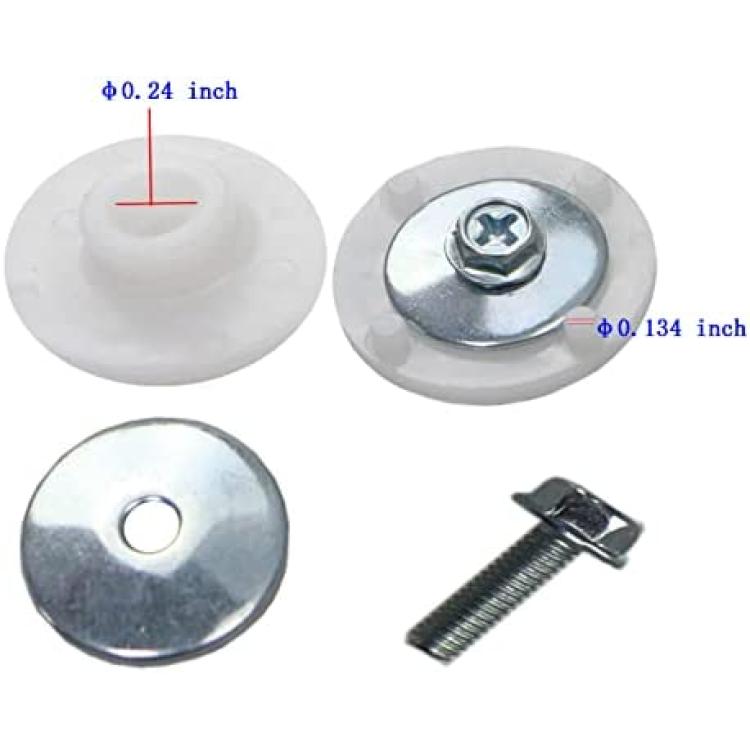

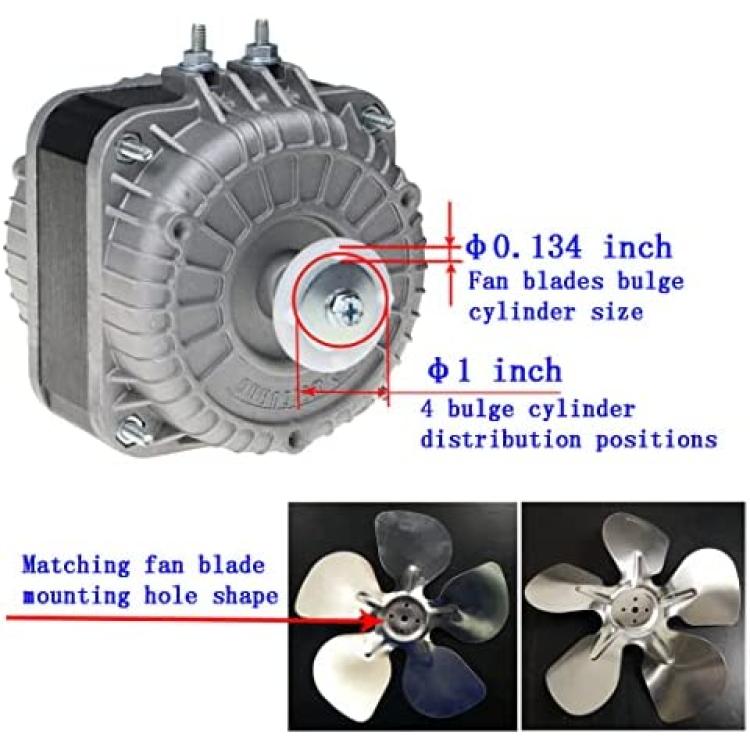

*Installation dimensions: Diameter of the hole for installing motor shaft is 0.236 inches, Mounting screws is M0.157 inches; Diameter of 4 positioning posts for installing fan blades is 0.134 inches, and the positions are on a 1-inch circumference

*AC motor fan blade installation accessories are easy to install and are widely used in refrigeration condenser fan motors. Long-term market applications have verified their good reliability and durability

Description

This is a set of special accessories for YZF series shaded pole motors to install fixed blades at the shaft end, including: (1) 1 piece of motor blade fixing block: POM plastic (2) 1 piece of M0.157 inch fastening screw: metal rust-proof (3) 1 piece of special gasket: metal anti-rust Installation size: (1) The diameter of the hole matched with the motor output shaft is 0.236 inches; (2) The screw matched with the end face of the motor output shaft is M0.157 inches and 0.55 inches long; (3) The diameter of the four mounting and positioning small columns matched with the fan blades is 0.134 inches, and they are evenly distributed on a 1-inch circumference centered on the motor shaft. This set of AC motor accessories is widely used in condenser fan motors of various refrigeration products such as refrigerators and air conditioners because of its easy installation of fan blades, good strength, moisture resistance and corrosion resistance.

Tags: YZF18-25 Motor Accessories, Shaded Pole Motor Accessories, Fan Positioning Blocks, AC Fan Motor Accessories, Refrigeration Fan Motor Parts, YZF Series Motor Accessories, POM Fan Blade Mounts, Compressor Fan Accessories, Motor Blade Holders, Refrigeration Condenser Fan Motor Parts
