A1583, 1/4HP Furnace Blower Motor,115V,1075RPM, 4.2AMP

About this product

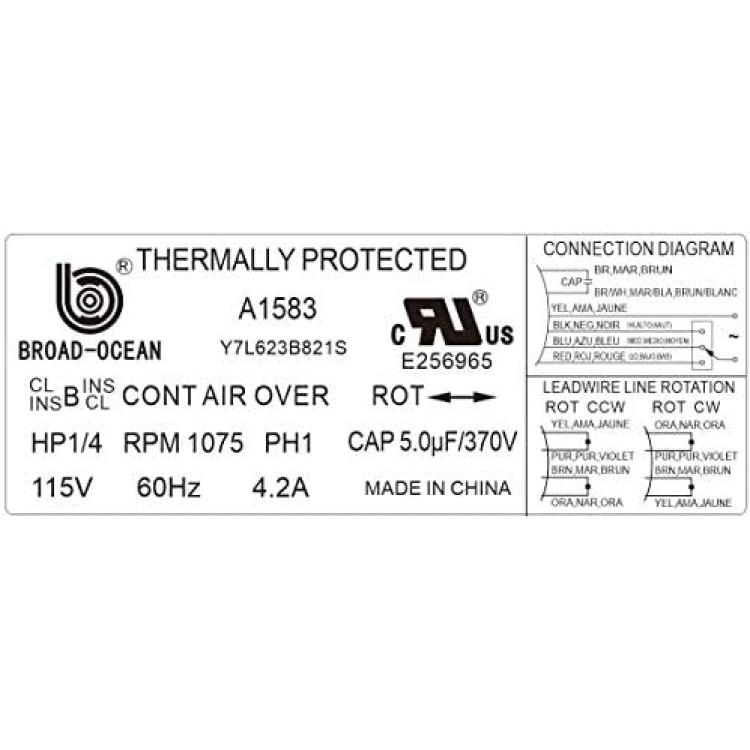

*1/4HP Direct Drive Furnace Blower Motor, 115V, 1075RPM, 4.2AMP, 3-Speed; Capacitor (required but not included): 5MFD/370V; Please read wiring diagram on motor label. Long YELLOW wire to common / neutral

*Standard industry shaft size (1/2") and motor size (48 frame or 5-5/8") can replace vast majority of blower motors of 1/4HP-115V-1075rpm. Replaces: Century DL1026; Emerson 1863; Grainger 4M096; MARS 10583; Fasco D721; Geteq 3583; Marathon X000; Packard 43583; Rheem W51-14BAA3-01; Carrier P257-8583; York S1-FHM3583;

*Please read wiring diagram on motor label. Long YELLOW wire to common / neutral; Sleeve bearing, all angle; RHEEM mounting holes; 3 Speeds; 1/2inch extended thru bolts; 2-1/4inch resilient rings

*Class B insulation; Single phase, 60 Hz; Thermal overload protected; Reversible rotation; Fan duty, continuous air over; Open construction; 36” lead length

*Directly from Broad-Ocean, one of the top 3 leading HVAC motor manufacturers. You will find them on millions of HVAC units including Carrier, Goodman, Trane and other brands; If you are a distributor, please continue your normal channel to source Broad-Ocean motors. Thank you. This retail venue is for contractors, repair technicians, and do-it-yourselfers, who otherwise may not have been adequately served with Broad-Ocean motors
