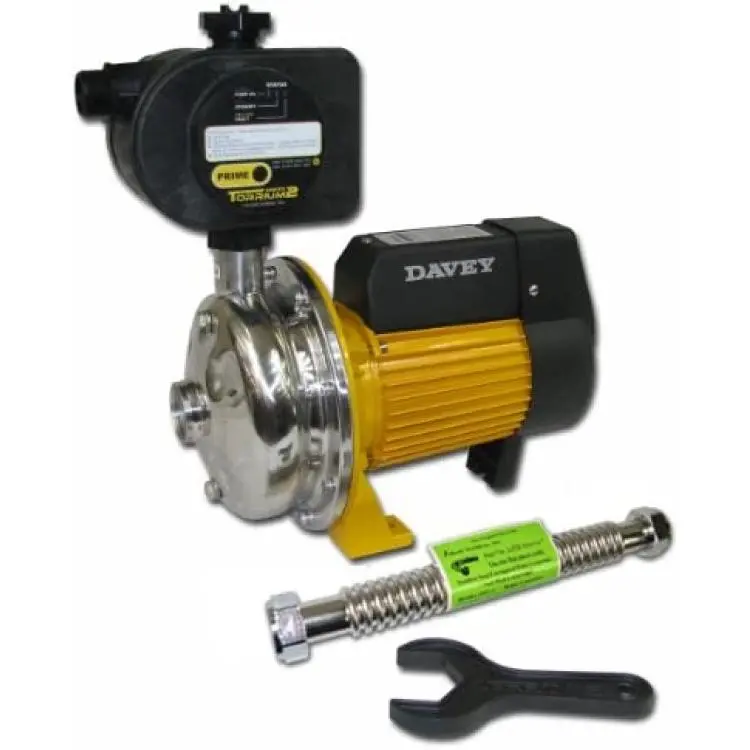

Davey Water Products BT14-30T2-USA Home Pressure Booster Pump with Torrium II Controller

Davey BT Series pressure boosting systems combine robust, compact, stainless steel centrifugal pumps with Davey's exclusive Torrium2 intelligent controller to supply strong, even pressure boosted water to domestic households and commercial/industrial applications.

APPLICATIONS: Ideal for pumping clean, clear water including:

APPLICATIONS:

Stainless Steel Horizontal Centrifugal Pump & Motor

Read more

Torrium 2 Controller

Read more

Choose from five different models with varying performance curves for most any application.

Hydraulic Performance is the amount of pressure boost the pump will add to your incoming pressure at a specific flow rate. Select the best pump for your application based upon your existing incoming pressure and desired combined system pressure (Usually < 80 psi to meet local building codes.) Model / Voltage / Incoming Pressure Range

Note: Do not exceed a Maximum System Pressure of 100 psi (incoming pressure PLUS pump boost).

Inadequate pressure from municipal water suppliesFrom underground or surface water supplies (BT14-45 and BT20-40 only)Automatic water transferApplications with interrupted water suppliesDomestic and light industrial irrigationReliable single stage or multistage impeller designsAll stainless steel wet end construction for reliabilityAble to pump hot water up to 158°FCarbon/Ceramic mechanical seal for reliable operationHigher than normal 120°F ambient temperature ratingHigh operating temperature and high current draw protectionRobust TEFC motor constructed from corrosion resistant materialsIP55 international protection rating for dust and dirtPermanently split capacitor for reliable startingMotor and pump are designed for frequent startsLarger water pathway provides superior hydraulic performanceAdaptive starting - monitors incoming pressureQuick cut-in for constant flow and even water pressureExtra Draw off Capacity w/ Built In AccumulatorEasy status check LEDsDry run protection with auto restartHigh Water Temp, Excessive Electrical Current and Power Surge ProtectionCorrosion & Scale ResistanceVertical/horizontal 360° dischargePower Cable - 6 ft power cord with standard NEMA power plugBT14-30 / 120V / 22-60 psi Incoming PressureBT14-45 / 120V / 2-40 psi Incoming PressureBT20-30 / 120V / 10-50 psi Incoming PressureBT20-40 / 240V / 0-20 psi Incoming PressureBT30-30 / 240V / 10-50 psi Incoming Pressure
