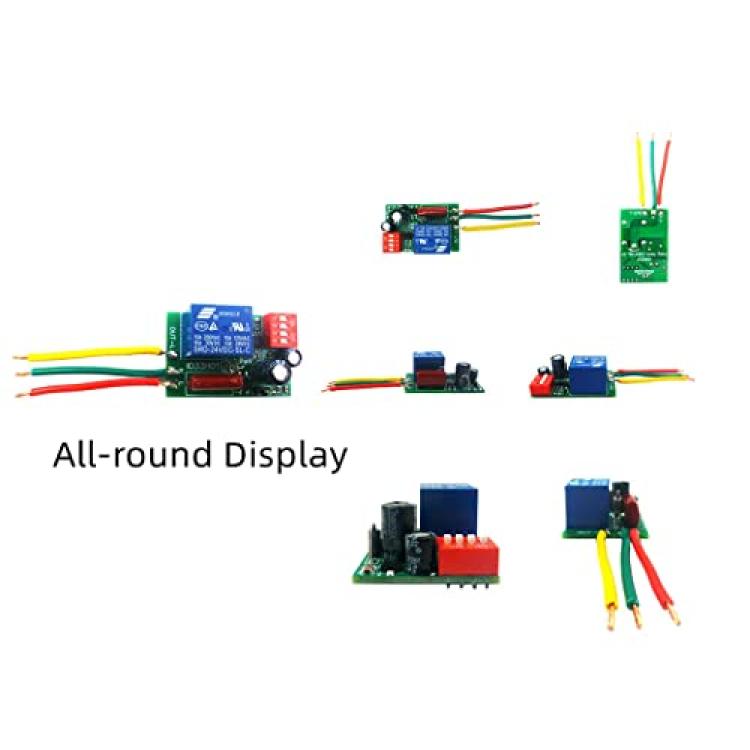

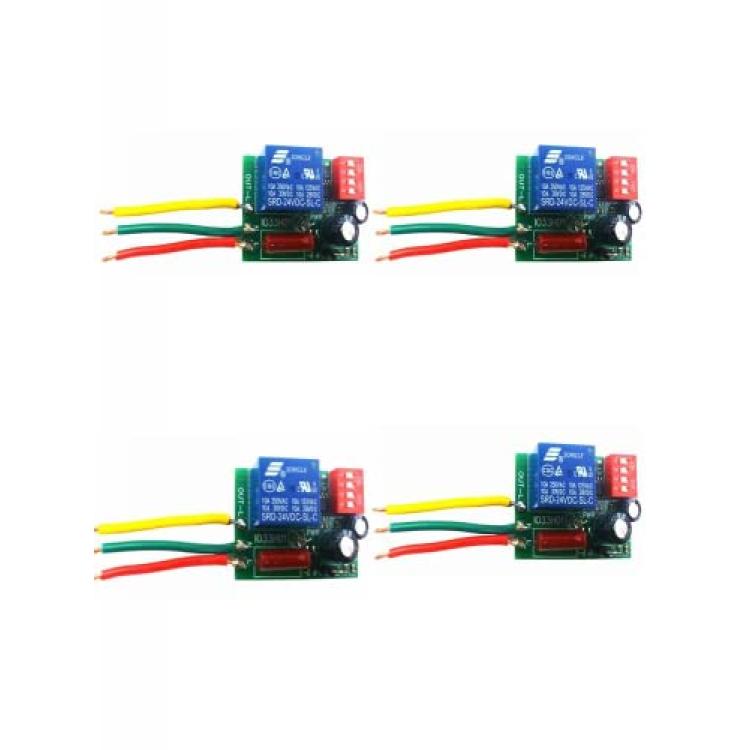

eletechsu AC 110V 220V Power-ON Delay Relay Switch AC 220V 7A Voltage Output Max 180Min Timer Adjustable Disconnect Delay Controller (4PCS Only Board)

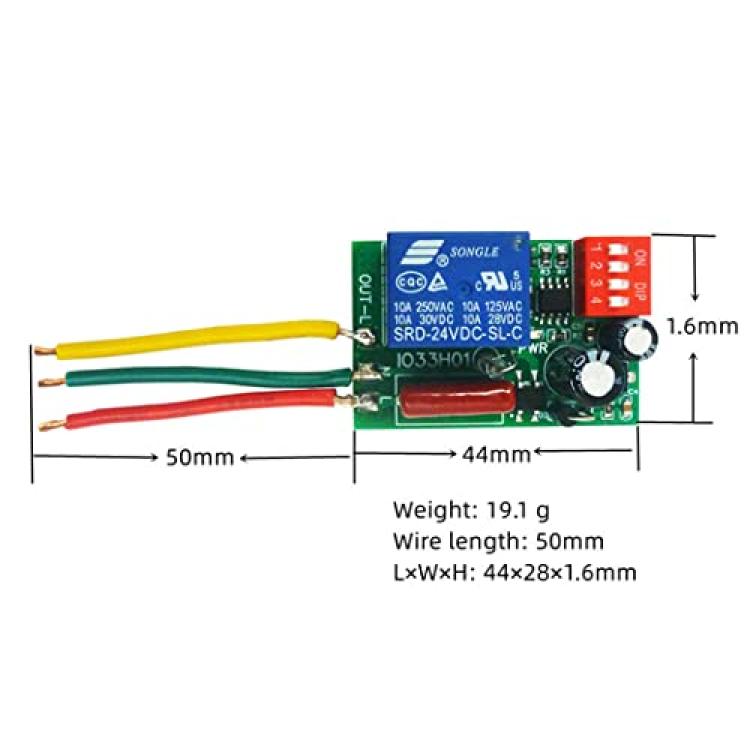

1 PCS AC 110V 220V Power-ON Delay Relay Switch AC 220V 7A Voltage Output Max 180Min Timer Adjustable Disconnect Delay ControllerProduct parameters:1. Brand: eletechsup2. Model: IO33H013. Output current: 7A(MAX 10A)4. Working power consumption: 43mA5. Output voltage: AC110- 220V6. Power supply voltage: AC 110-220V7. Weight with shell: 29 grams8. Dimensions with shell: 57×35×20mm9. Weight without shell: 19.1 grams10. Dimensions without shell: 44×28×1.6mm11. Unified length of wires: 50mm12. Maximum standby power consumption: 12mA13. Number of control channels: 1 output14. Working temperature: -25?~85?15. Working humidity: 5%~95%RH16. Shell: high-quality shell, dust-proof and flame-retardant17. Function: stop power supply after a period of time delay18. Control power: 1400W (maximum) for incandescent lamps, 300W (maximum) for energy-saving lamps19. With LED indicator light to display the working status (constant light means work, flashing means the delay is over)20. Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.21. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.22. Choose from 16 delay modes (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes , 300 minutes, 480 minutes) Module function: This module is a delayed power-off module. When the set delay time expires, stop power supply. Working status: After the power is turned on, the indicator (PWR) will remain on; after the delay is over, the indicator (PWR) will continue to flash. How to use:?: Set the time you need to delay (no live settings are allowed);?: After checking that the wiring is OK, power on, the module starts to work after power on, (the indicator light is always on), and the module stops power supply when the time is up (indication light flashes).1. If it needs to be turned off in adv
