12V 500A Recovery Winch Solenoid HD Contactor Relay and Twin Wireless Remote Control for 8000lbs 12000lbs Rope Line Cable
About this product
*Combo included Wireless Remote Systems and Twin Remote Control with on-off switch & indicator light shows remote operation
*2-TO-1 control, unique control code for each package. Wireless control kit built-in antenna design, wireless control range max. 150ft.
*Winch Solenoid Relay come with shatterproof sealed and corrosion resistant case. Solid heavy duty constructed
*High performance and it makes the engine more powerful for working. Easy to install
*Compatible with 8000lb-12000lb winch with DC 12V (series wound and permanent magnet)
Description
Packet Status: Brand New 100%

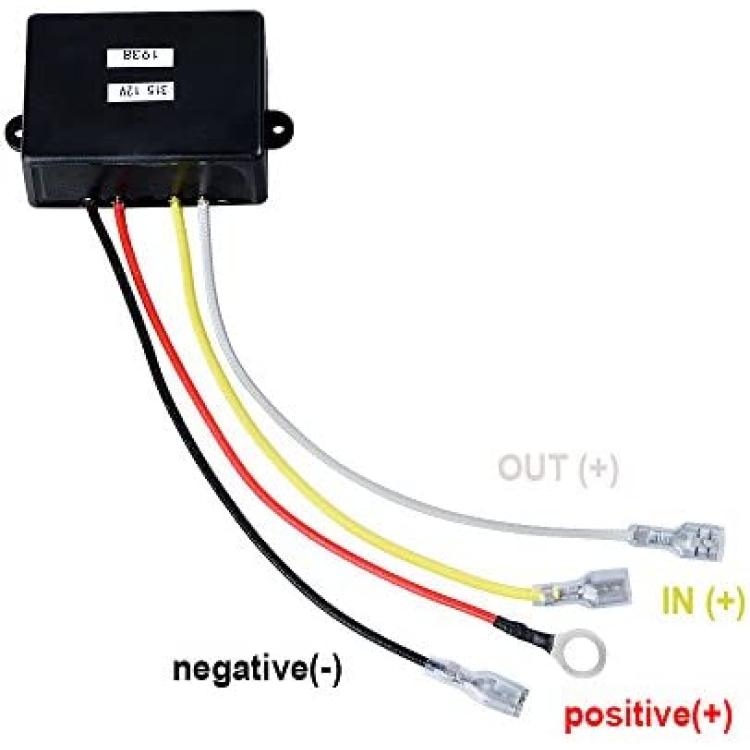

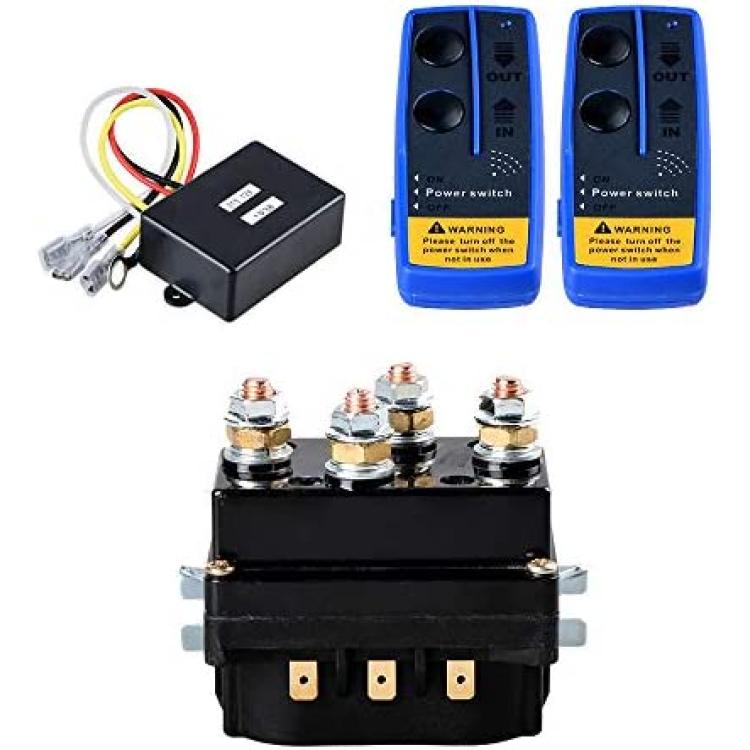

* Packet contains: 1X 12V 500A Winch Solenoid Relay + 1X 12V Wireless Winch Receiver + 2X 12V Wireless Winch Remote
* Items Weight: 900g
* Color: Black Relay + Black Receiver + Blue Remote
* Made of ABS and Aluminum Alloy
* Operating Voltage: 12V DC
Compatible with 8000lbs-12000lbs Winch with DC 12V (series wound and permanent magnet)
Winch Solenoid Relay

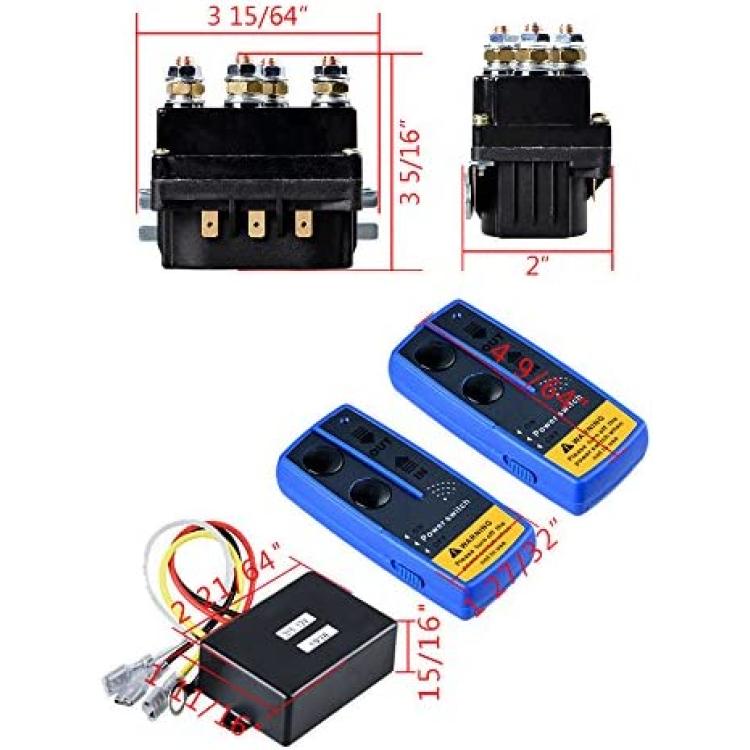

* Dimension (LxWxH): 3 15/64" (8.2cm) x 2" (5.5cm) x 3 5/16" (8.4cm)
* Coil Rated Voltage: 6-110V DC - Contact Circuit Voltage: 80V DC
* Operating Wattage: 15W
* Loading Current: Max. 250V AC 500A
* Environment temperature: -40°C - 85°C
* Frequency: 10Hz-200Hz
* Acceleration: ?3.5g
* Speed: 60-100 per min
* Mechanical life: up to 100,000Ops - Electrical life: up to 50,000Ops
* Operation Regulation: Continue
* Installation direction: Random
Wireless Winch Remote Control Kit
* Remote (LxW): 4 9/64" (10.5cm) x 1 27/32" (4.7cm)
* Receiver (LxWxH): 2 21/64" (5.9cm) x 1 11/16" (4.3cm) x 15/16" (2.4cm)
* Contact Circuit Voltage: 80V DC
* Control Range: Max. 150 feet
Attributes

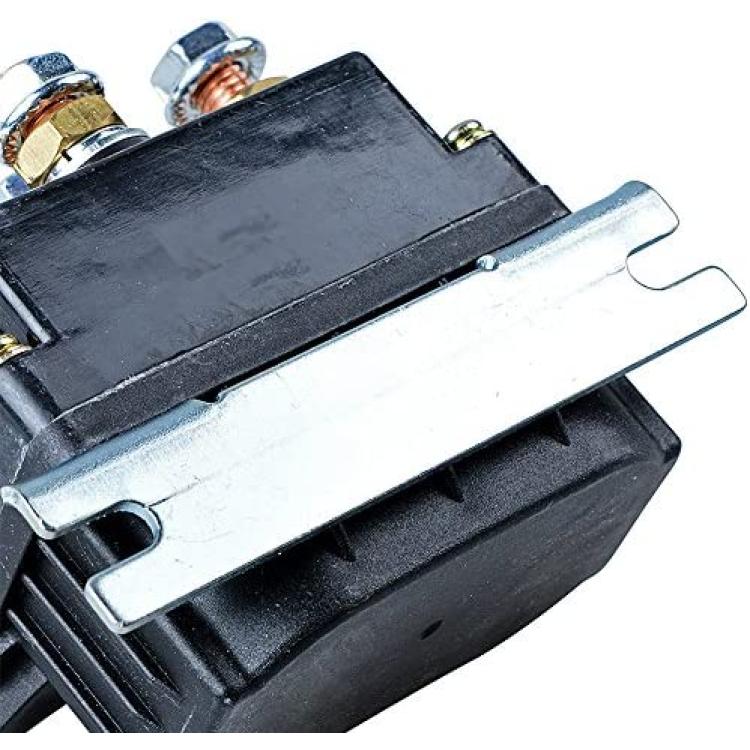

* Pre-cutting mounting bracket for easy installation into control box
* Come with power on-off switch, holding clip for usingisual and indicator light shows remote operation
NOTICE:

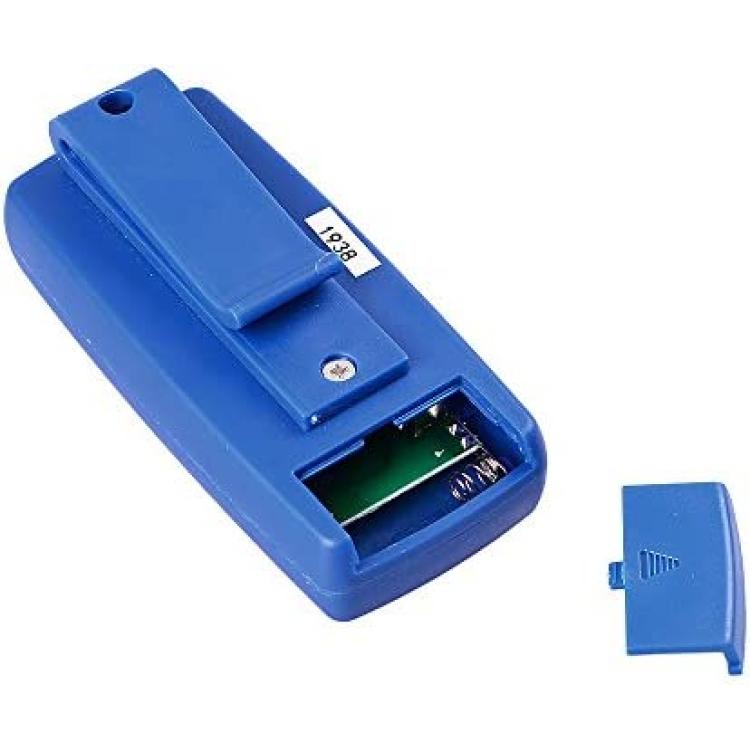

* Each remote powered by 12V 23A battery. For safety reason, battery is NOT included in package
* Ensure you read carefully the product description prior to purchasing the product
* Your satisfaction is incredibly significant to us. Please feel free to contact us if you have any questions relating to the product and service
