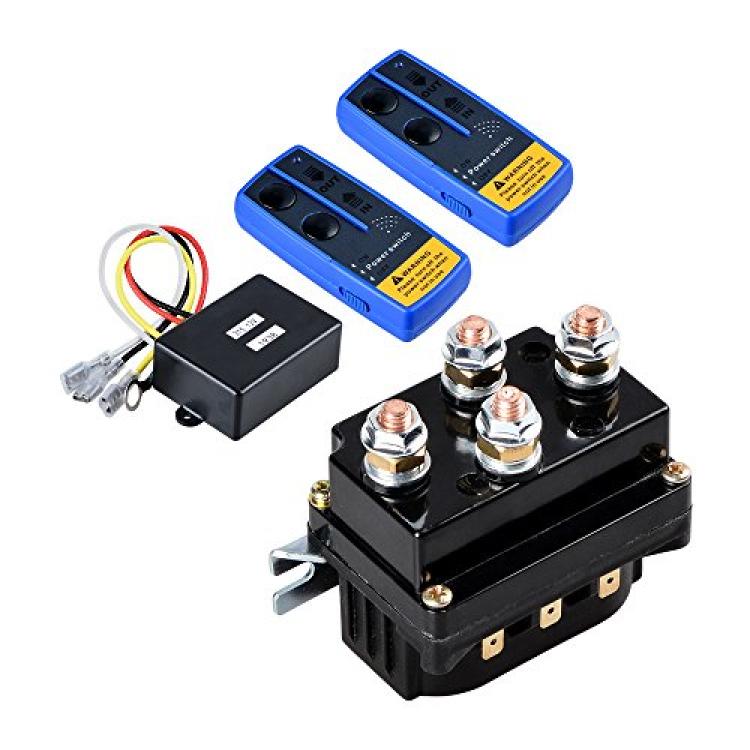

Combo 12 Volt Wireless Winch Remote Control Kit Twin Range max. 150ft + 12V 500A Winch Solenoid Contactor Relay for 8000lbs-12000lbs ATV UTV 4WD 4x4 Winches

Specifications:

Condition: 100% Brand New
Color: Black Relay + Black Receiver + Blue Remote
Material: ABS ; Aluminum Alloy
Operating Voltage: 12V DC
Weight: 720g + 180g

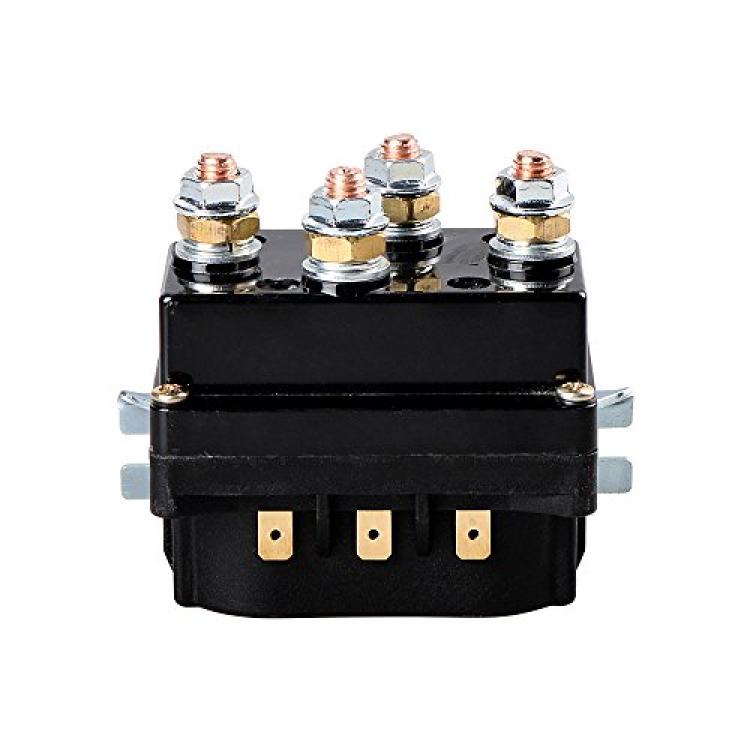

***Winch Solenoid Relay

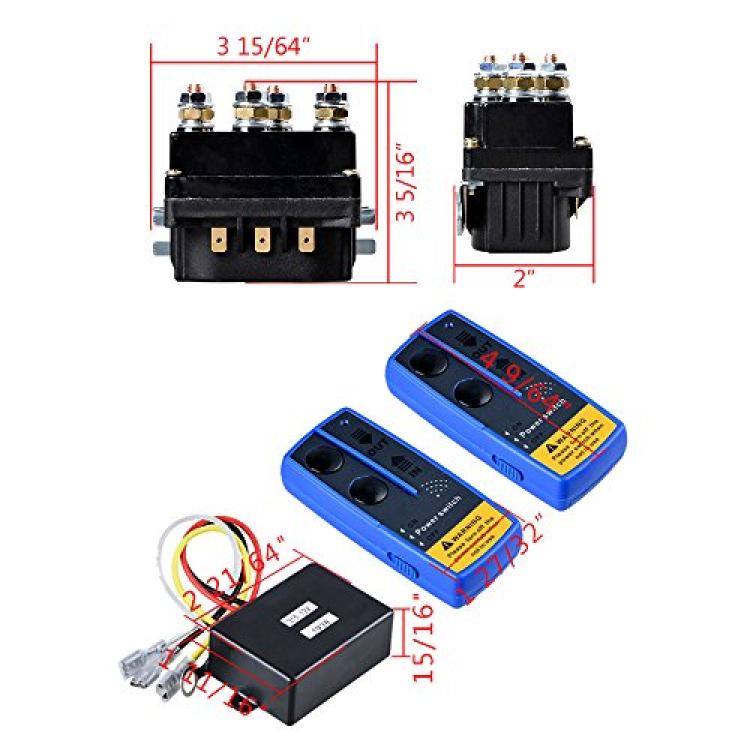

Size: Length: 3 15/64" (8.2cm) + Width: 2" (5.5cm) + Height: 3 5/16" (8.4cm) (As the Picture Shown)
Coil Rated Voltage: 6-110V DC --- Contact Circuit Voltage: 80V DC
Operating Wattage: 15W
Loading Current: Max. 250V AC 500A
Environment temperature: -40°C - 85°C
Frequency: 10Hz-200Hz
Acceleration: ?3.5g
Speed: 60-100 per min
Mechanical life: up to 100,000Ops --- Electrical life: up to 50,000Ops
Operation Regulation: 50 Circle
Installation direction: Random
***Wireless Winch Remote Control Kit
Size: (As the Picture Shown)
Remote: Length: 4 9/64" (10.5cm) x Width: 1 27/32" (4.7cm)
Receiver: Length: 2 21/64" (5.9cm) x Width: 1 11/16" (4.3cm) Height: 15/16" (2.4cm)
Control Range: Max. 150 feet

Feature:

Winch Solenoid Relay compatible with Wireless Remote Systems with two remote control.
Pre-cutting mounting bracket for easy installation into control box
2-TO-1 control, unique control code for each package
Come with power on-off switch, holding clip for usingisual and indicator light shows remote operation

Fitment:

Compatible with 8000lb-12000lb winch with DC 12V (series wound and permanent magnet)
Note:
Each remote powered by 12V 23A battery, for safety reason, battery is not included in the package.
Professionals install is highly recommended!
Please note that there is a circuit switch (like a seesaw) inside the product, so when you shake the relay, there is a voice inside, not by the loose in the wiring or any defective issue. Thank you!
