uniquegoods DC 12V-80V Motor Speed Controller PWM Governor with Soft Start/Stop Over-Current/Under-Voltage Protection

uniquegoods DC 12V-80V Motor Speed Controller PWM Governor with Soft Start/Stop Over-Current/Under-Voltage Protection

Name: uniquegoods DC 12V-80V Motor Speed Controller PWM Governor with Soft Start/Stop Over-Current/Under-Voltage Protection
Brand: ‎Guangzhou Meimotor Electronic Technology Co., Ltd.
SKU: MM26264
Availability: InStock

Brand: ‎Guangzhou Meimotor Electronic Technology Co., Ltd.
Product Code: MM26264
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Input Voltage: DC 12V to 80V; Recommend Use Range: 12V within 250W , 24V within 350W ......48V within 500W

*Adjust the buttons to achieve "Increase", "Reduce", "Function", Stop/Run". The output voltage and current can be show in display

*Function: Soft-Start / Soft-Stop / Min PWM Out / Max PWM Out / Under-voltage Protect / Over-current Protect / Voltage/Current Display / Percentage Display

*Input Voltage: DC 12V to 80V; Recommend Use Range: 12V within 250W , 24V within 350W ......48V within 500W

Description

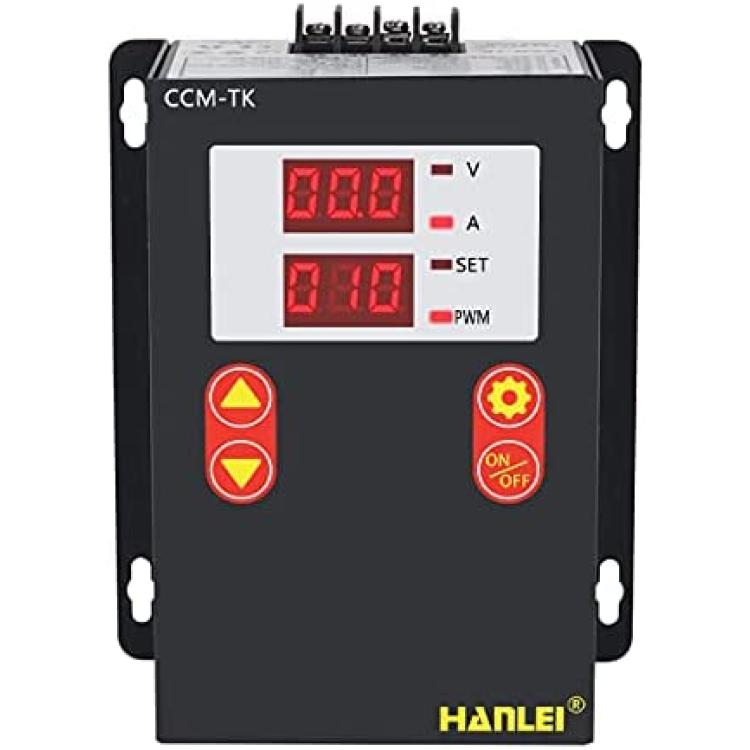

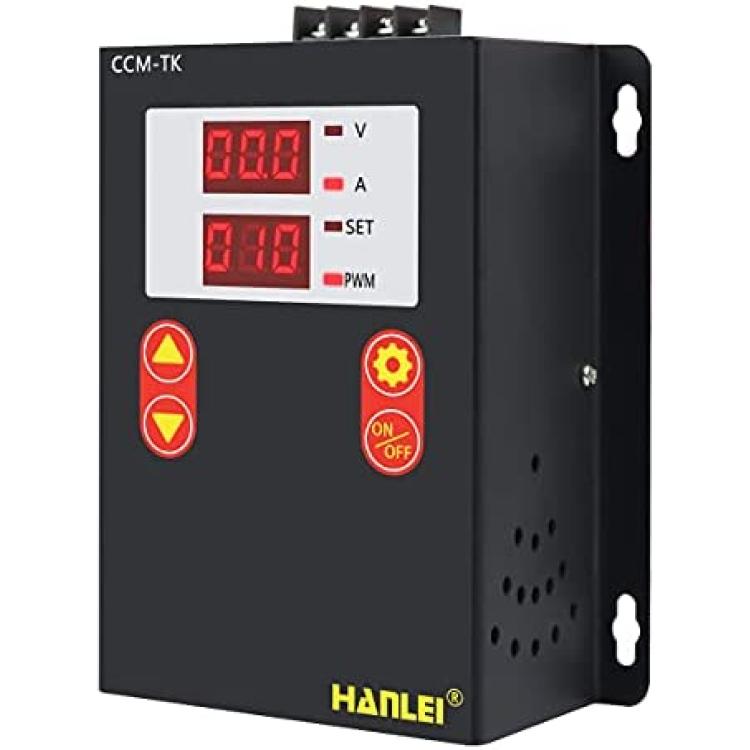

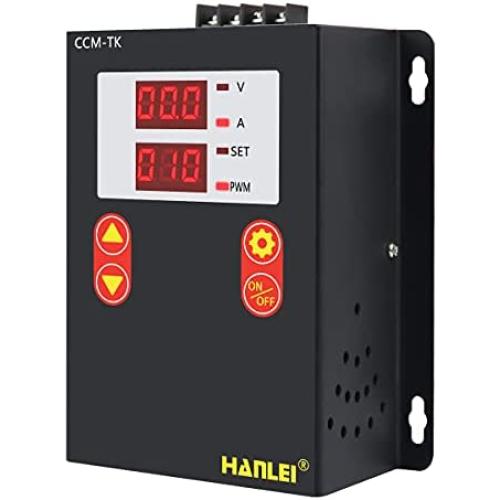

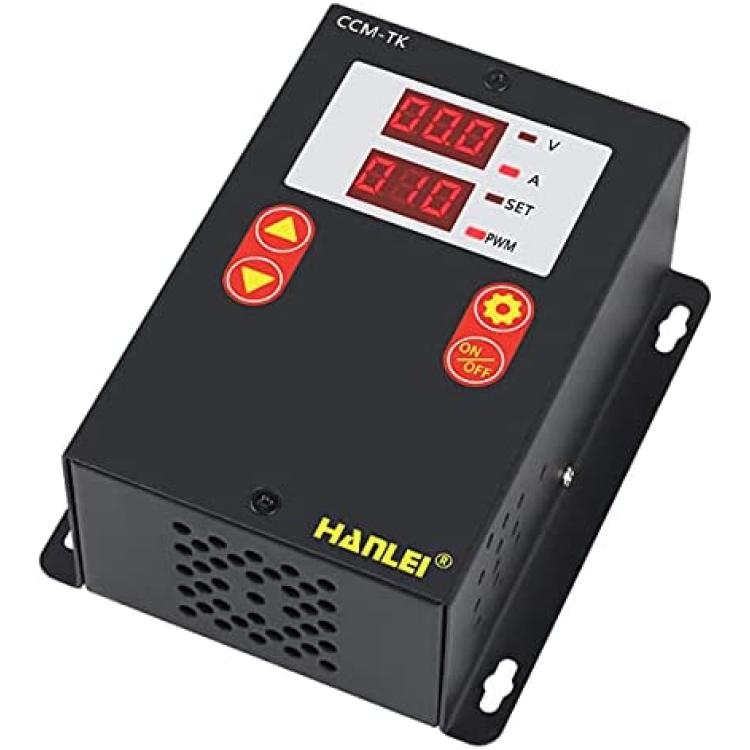

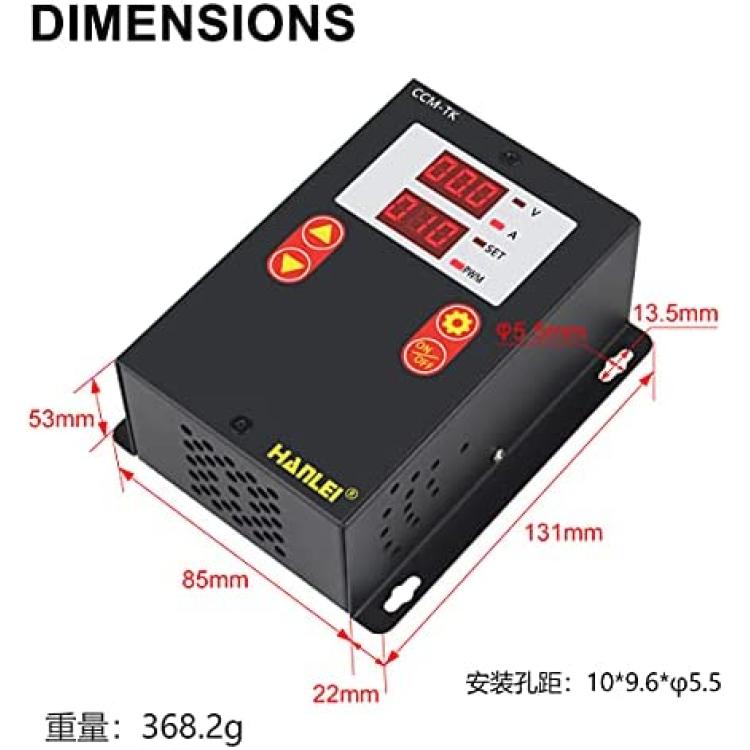

Model: CCM-TKVoltage Range: DC 12-80V Recommend Use Range: 12V within 250W , 24V within 350W ......48V within 500WMaximum Current: 30AFrequency: 21KhzSpeed adjustment Range: 0%-100%Dimensions: 131mm*107mm*53mm / 5.16*4.21*2.09 inches 1 x Motor Controller 1 x Operation Instruction 1. Soft-Start: 0.1-10.0s, Default 1.0s.2. Soft-Stop: 0.1-10.0s, Default 1.0s.3. Min PWM Out: 0%-80%, Default 0%.4. Max PWM Out: Min Output-100%, Default 100%.5. Step Value: Min Variation 1% 2% 5% 10% 20% 25% Optional, Default 1%.6. Undervoltage Protect: 8V-60V, default 10V, Under-voltage display“VVV”.7. Overcurrent Protect: 0.2A-30A?Default 20A?Overcurrent display?“AAA”.8. Voltage/Current Display?“--V” Display voltage, “--A” Display Current?Default “--V”.

Tags: Motor Speed Controller, PWM Governor, DC Motor Controller, Soft Start Stop, Over Current Protection, Under Voltage Protection, Variable Speed Controller, 12V 80V Motor Controller, PWM Speed Control, Motor Speed Regulation
