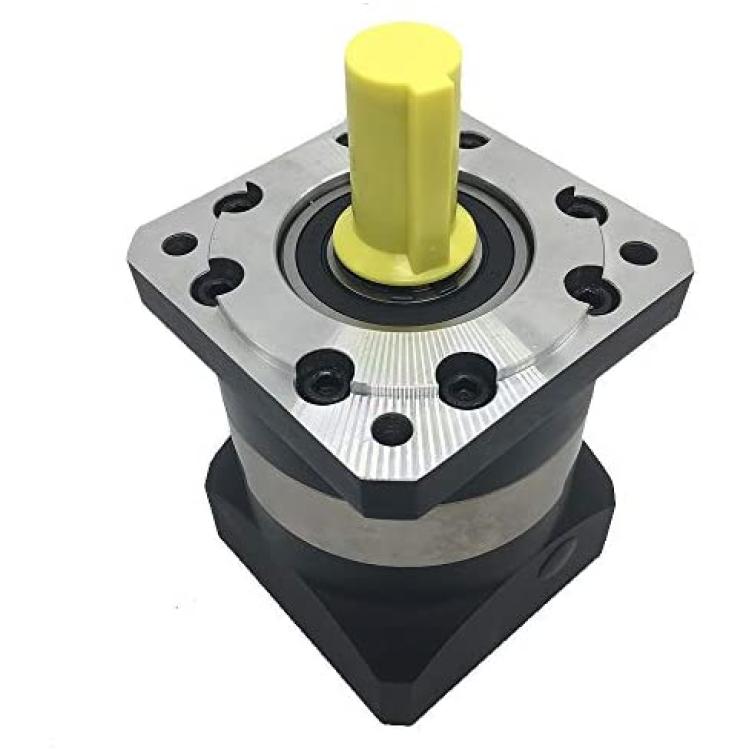

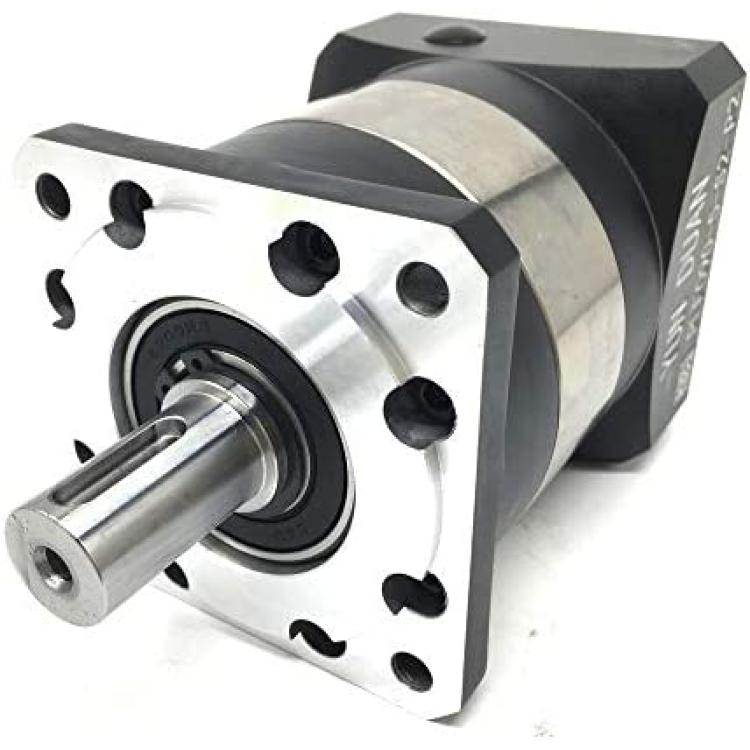

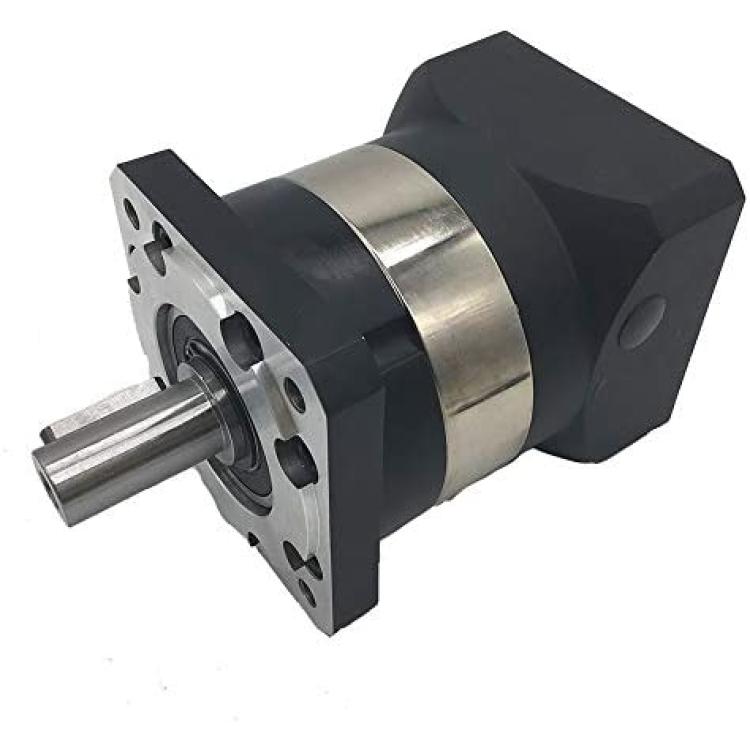

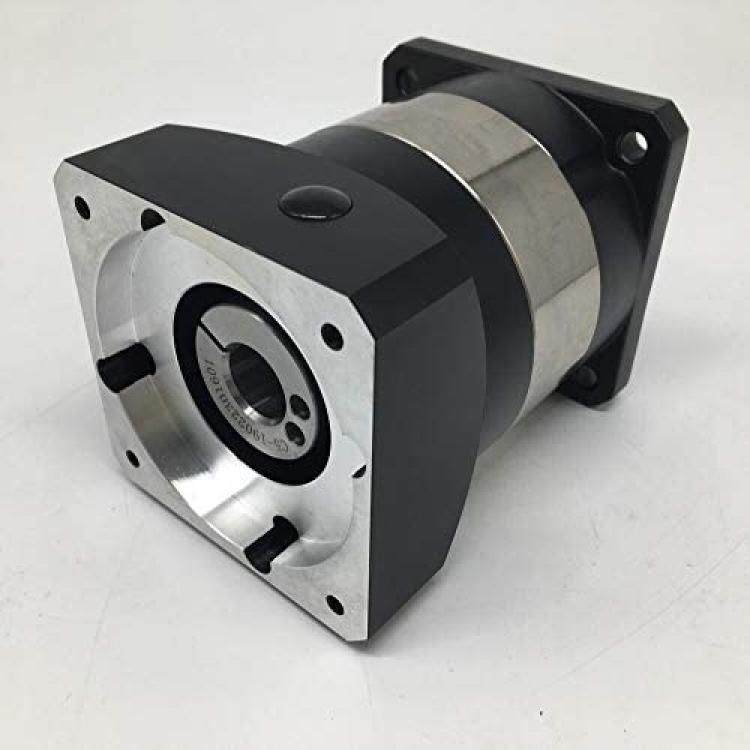

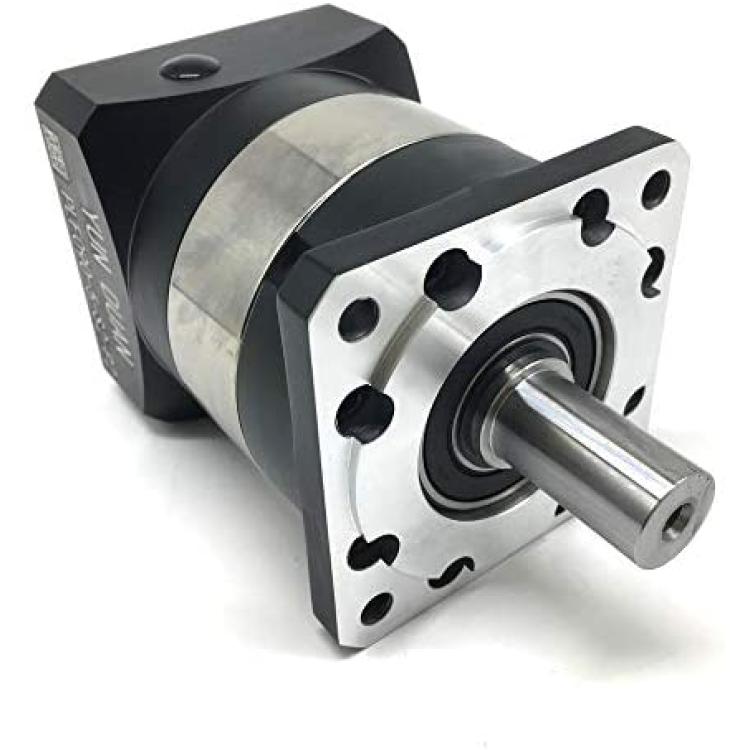

Nuojie Electronic Components Motor 3:1 Speed Ratio3 Reducer 19mm Input 6000rpm Gearbox Reducer for 110MM 19mm Shaft 3PH Stepper Motor High Precision

This motor uses pure copper wire coil, low heat and low loss
Package Included :

1X reducer

4X Install screw

Reducer parameters:

Model: PLF120-3-19-85-132

Speed Ratio: 3:1

Product type: Gearbox

Input Shaft: 19mm

Output Shaft: 25mm
Rated torque: 161Nm

Body length: 99.5mm

Backlash Precision: Less than 7 Arcmin

Max radial force: 1240N

Max axial force : 1000N

Torsion rigidity: 11Nm/arcmin

Max input speed: 6000rpm

Rated input speed: 3500rpm

Noise: less than 65dB
Full load efficiency: more than 96%
