Nuojie Electronic Components Motor RS-555PH DC Motor RS555 High Torque Micro Motor 555 DC 24-48V 3600RPM Brush Motor Low Current Low Speed DIY Copier Motor (Speed(RPM) : Motor and Pulley)
About this product
*This DC motor has the characteristics of high speed and small size.
*Motor diameter: 35.8mm
*Motor length: 57.3mm
*Output shaft diameter: 3.15mm
*Output shaft length: 16mm
Description
This motor uses pure copper wire coil, low heat and low loss
Model: RS-555PH Motor
Motor diameter: 35.8mm
Motor length: 57.3mm
Output shaft diameter: 3.15mm
Output shaft length: 16mm

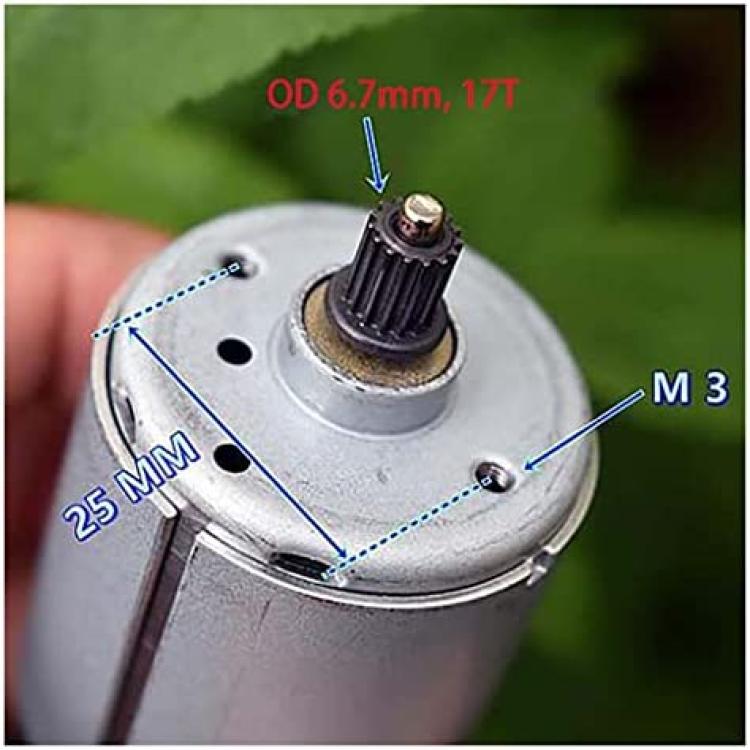

Screw hole diameter: M3
Screw hole distance: 25mm
Weight: 233 grams
Voltage range: DC 24V-48V
Speed: 3600RPM @ 24V, 5400RPM @ 36V, 7200RPM @ 48V
Current: 0.045A@24V, 0.051A@36V, 0.059A@48V
Package Included:
According to your choice.
Motor only
Motor + pulleyMotor diameter: 35.8mm
Motor length: 57.3mm
Output shaft diameter: 3.15mm
Output shaft length: 16mm
