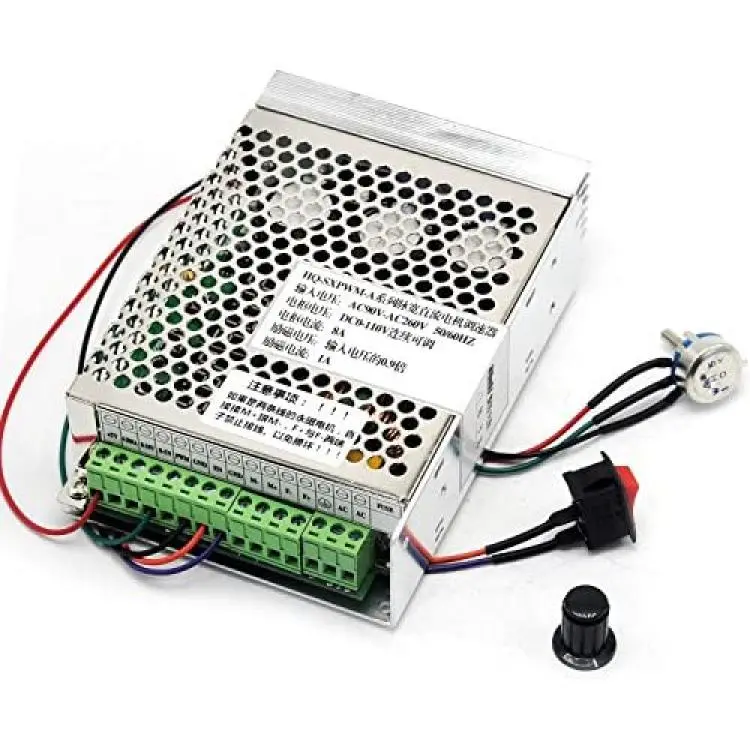

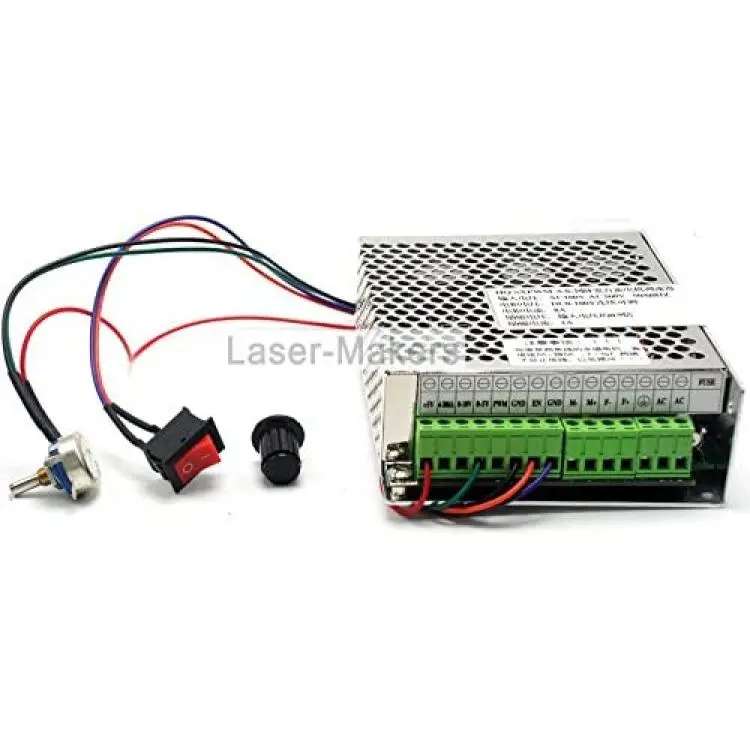

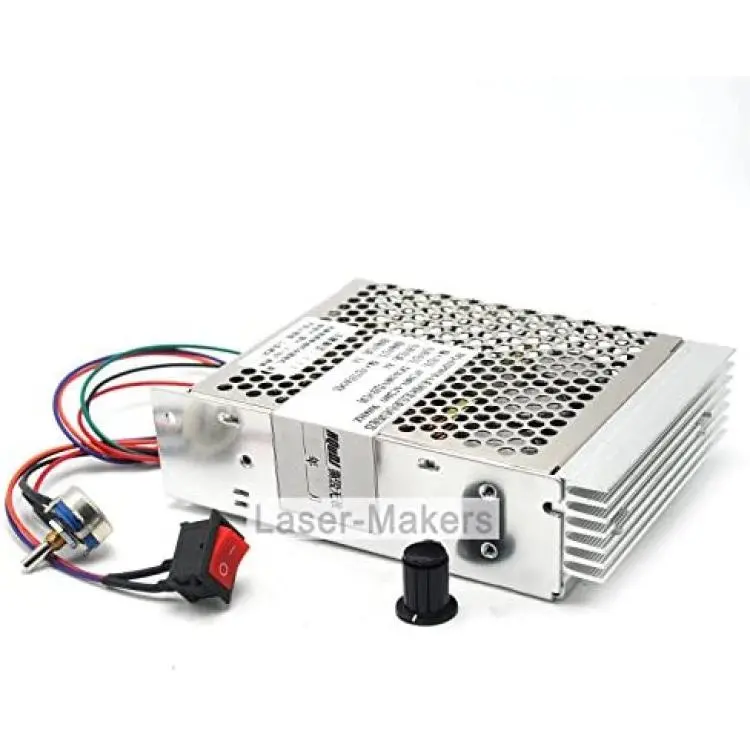

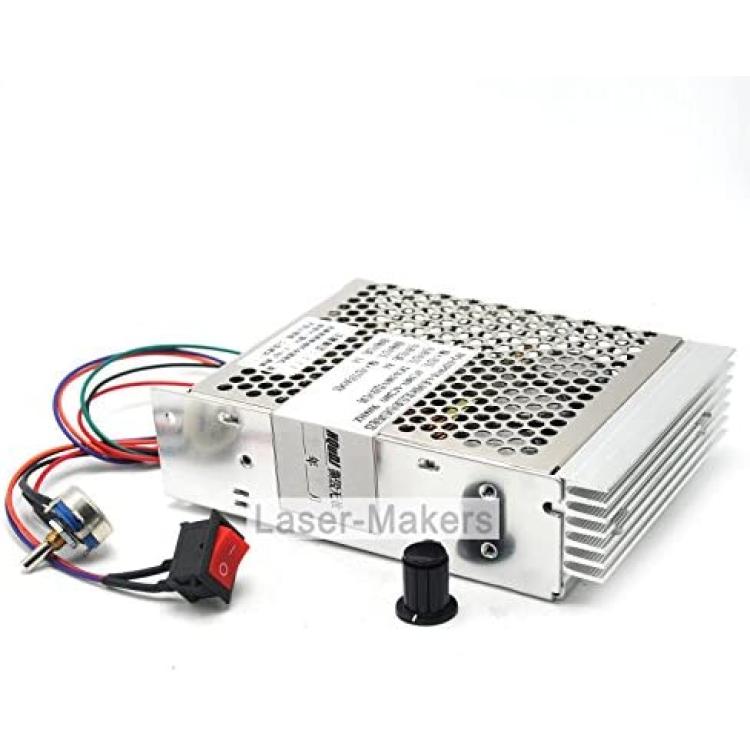

Input AC90V-260V Output DC0-110V 8A PWM DC Motor Speed Controller Driver Digital

Features:
1.the input power supply (VAC): AC90-260V 50 / 60Hz (for global voltage)
2.the output armature voltage range (VDC): DC110V
3.the output armature current range (A): 8A (0.1A-10A can be arbitrarily set) . If the current is too big need to increase the heat

4.the output excitation voltage range (VDC): 100/200 (default full-bridge rectifier, which is 0.9 times the input voltage)

5. the output excitation current range (A): 1A
6. the working frequency: 16 KHz
7.given signal mode (V / mA): default potentiometer, 0-5V, 0-10V, 4-20mA, PWM, touchtone

8. enable control mode (EN): switch
9.soft start (acceleration time adjustment range) (S): 0-10S (default 2 seconds)
10.soft stop (deceleration time adjustment range) (S): 0-10S (default 2 seconds)

11.double loop PI regulation (voltage and current) control is more reliable
12.IR torque compensation range: 0-100% (default 0)
13.overcurrent range: 0 setpoint (default 8A)
14.overcurrent mode: stop output and indication (display code E1)
15.short-circuit protection: stop output and indication (display code E0)
16.overheat protection: power tube temperature exceeds 100 ° off the output and the indication (display code E2)

17. built-in digital display module can display real-time operating voltage with current
18. Dimensions: Length 140mm × 98mm × height 38mm width
19.Connection: terminal type (convenient)
