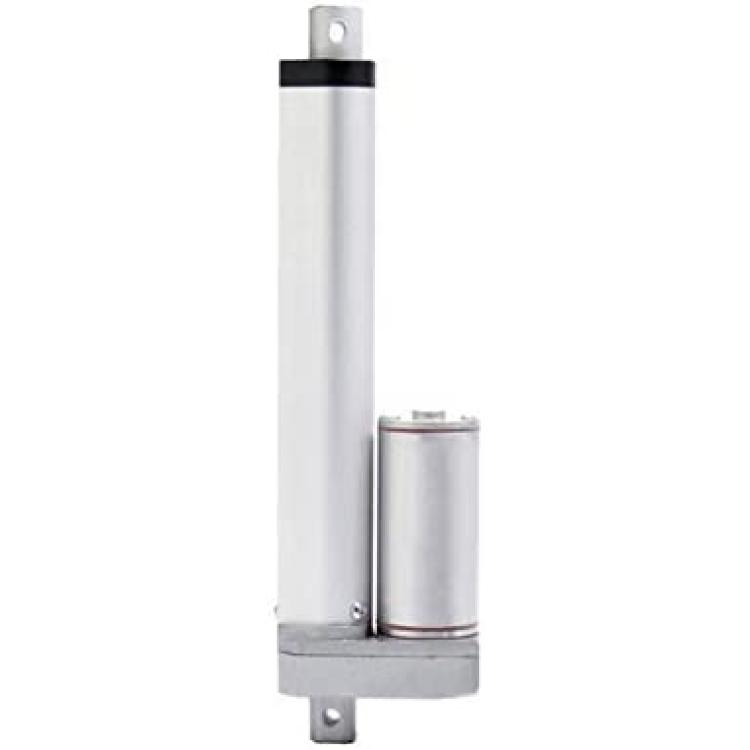

Xianglaa-motor 1× Electric Linear Actuator Speed 5mm/s 100-1000 Mm Stroke Linear Motor, Controller Dc 12V24V Thrust 900N, Wide range of applications ( Speed(RPM) : 450mm Stroke , Voltage(V) : 24v )

Electric Linear actuator 25mm-1000mm Stroke linear motor controller dc 12V 24V
Product parameters:
Drive voltage: 12VDC or 24VDC (it can choose)
Maximum Thrust: 90KG/900N
Minimum installation size (fully retracted around in the middle of the distance between the two holes): L1= Stroke+105 mm
Maximum installation size (fully extended around the middle of the distance of the two holes): L = 2xS(stroke)+105mm
Ambient temperature :-26 to +65 degree
Protection class: IP 54
Built-in limit switches(When completed stroke, linear actuator automatically stops!)
Low noise design, noise levels below 42 db
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.
Maximum self-locking force 2300N

Item Description:
This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications.
It can be replaced by hydraulic, pneumatic products ideal for saving energy consumption.

Material: Aluminum alloy
Load capacity: 900N
Input Voltage: 12V/24V DC
Speed: 5mm/s

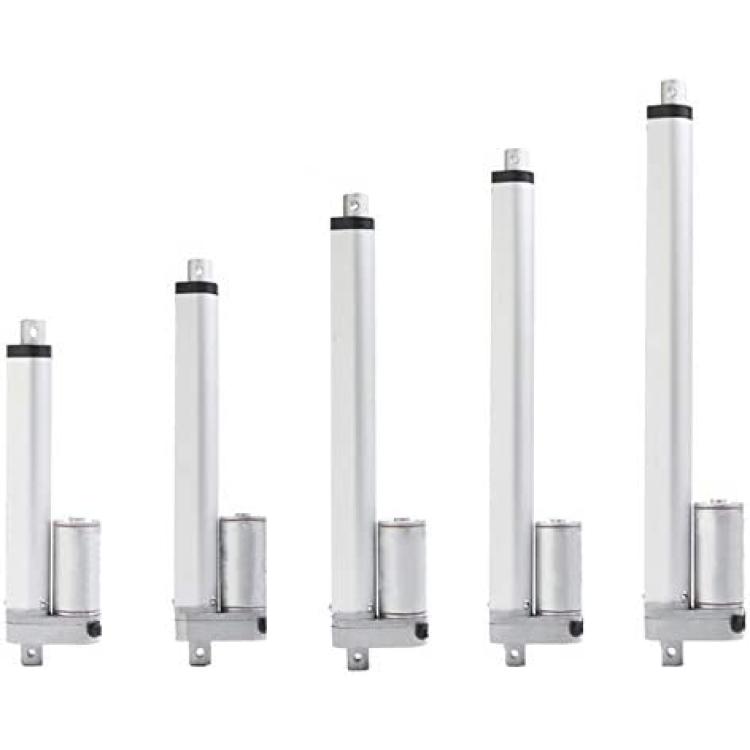

Stroke Length:
50mm/2 inch 100mm/4 inch
150mm/6 inch 200mm/8 inch
250mm/10 inch 300mm/12 inch
350mm/14 inch 400mm/16 inch
450mm/18 inch 500mm/20 inch
600mm/24 inch 700mm/28 inch
800mm/32 inch 900mm/36 inch
1000mm/40 inch
Working frequency: 20%
Built-in limit switches,not adjustable after leave factory.
Package Included:
1×Linear Actuator

?We have matched linear actuator Mounting Brackets

The linear actuator is auxiliary driving device, widely used in medical, Medical bed, massage chair, electric foot sofa, fitness equipment, care bed, window open, ELECTRIC furniture,household, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, transportation, construction, food and feed proces
