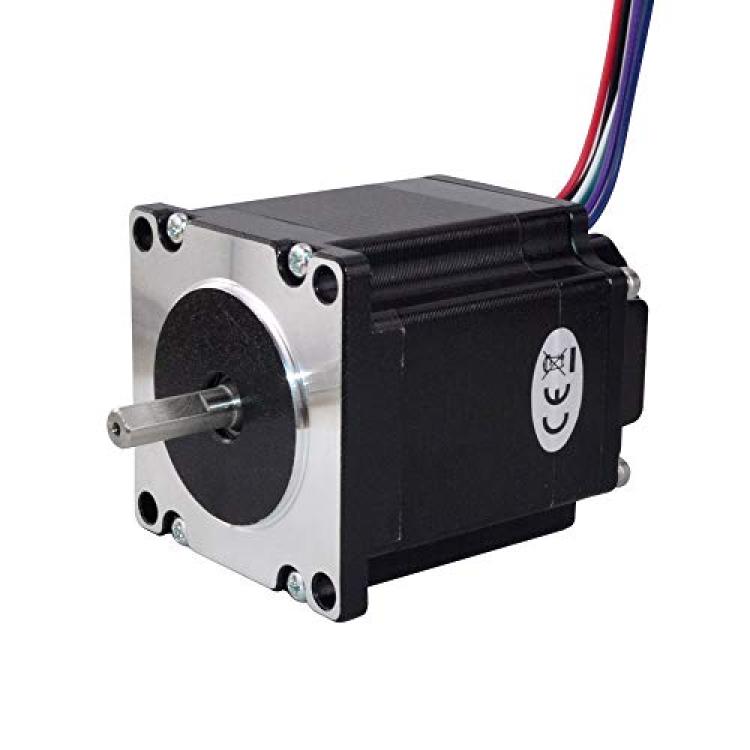

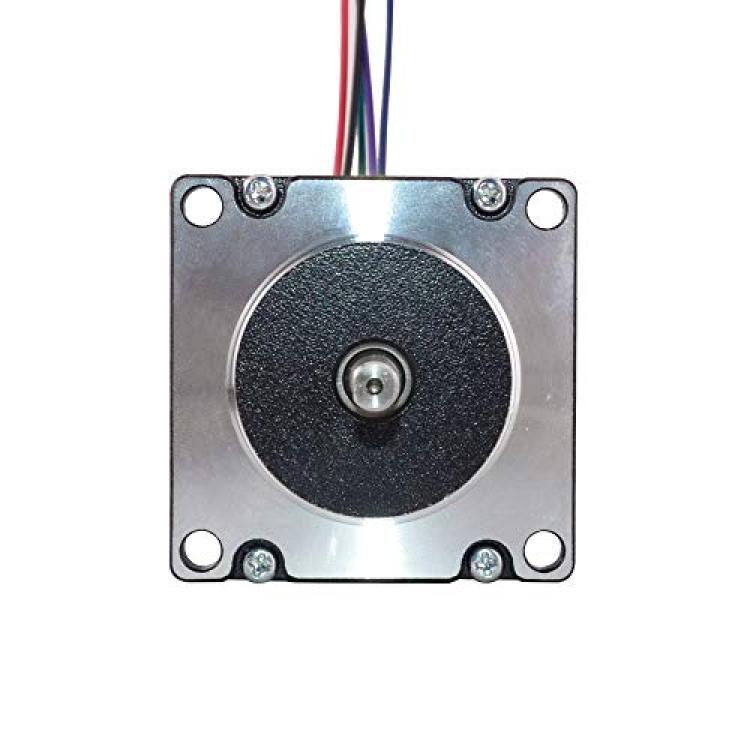

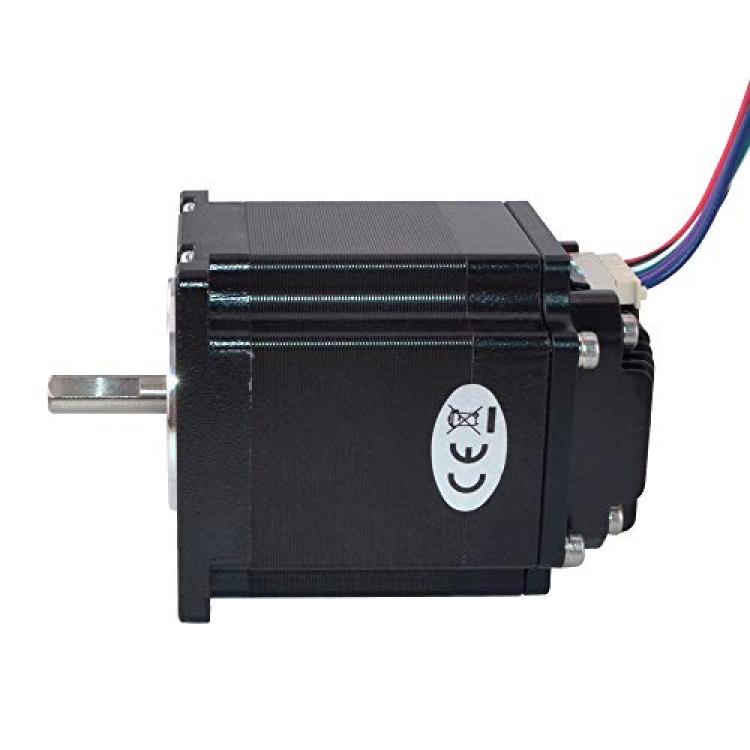

STEPPERONLINE Nema 23 Integrated Stepper Motor 126 Ncm(178.4oz.in) with Stepper Driver ISD04 12-38VDC

STEPPERONLINE Nema 23 Integrated Stepper Motor 126 Ncm(178.4oz.in) with Stepper Driver ISD04 12-38VDC

Product Code: MM25583
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Is Discontinued By Manufacturer ‏ : ‎ No

*Package Dimensions ‏ : ‎ 6.73 x 3.35 x 1.57 inches; 1.65 Pounds

*Item model number ‏ : ‎ ISD04-10

*Date First Available ‏ : ‎ November 15, 2014

*Manufacturer ‏ : ‎ STEPPERONLINE

Description

Electrical Specifications:

*Manufacturer Part Number: ISC04-10
*Step Angle: 1.8 deg
*Holding Torque: 126 Ncm(178.4oz.in)
*Rated Current/phase: 2.8 A
*Phase Resistance: 0.9 ohms
*Inductance: 2.5 mH ± 20%(1KHz)

Physical Specifications:

*Frame Size: 57 x 57 mm
*Body Length: 75 mm
*Shaft Diameter: ?6.35 mm
* Shaft Length: 21 mm
* Weight: 750 g

Driver Specifications:

*Output Peak Current: 0 - 4 A
*Input Voltage: 12 - 38 VDC
*Speed control through external potentiometer 0. 75 - 1250 RPM
*Isolation Resistance: More than 100 M?
*Dielectric strength: 500VAC for 1MIN.

Connection

*V+:Red, GND:Black, VCC:White, DIR:Green, STP:Purple, ENA:Blue

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
