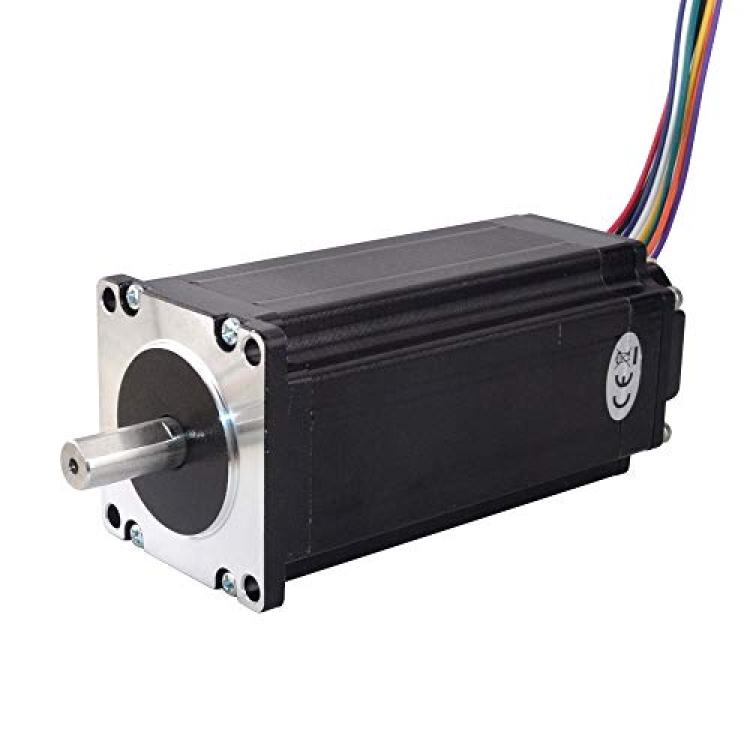

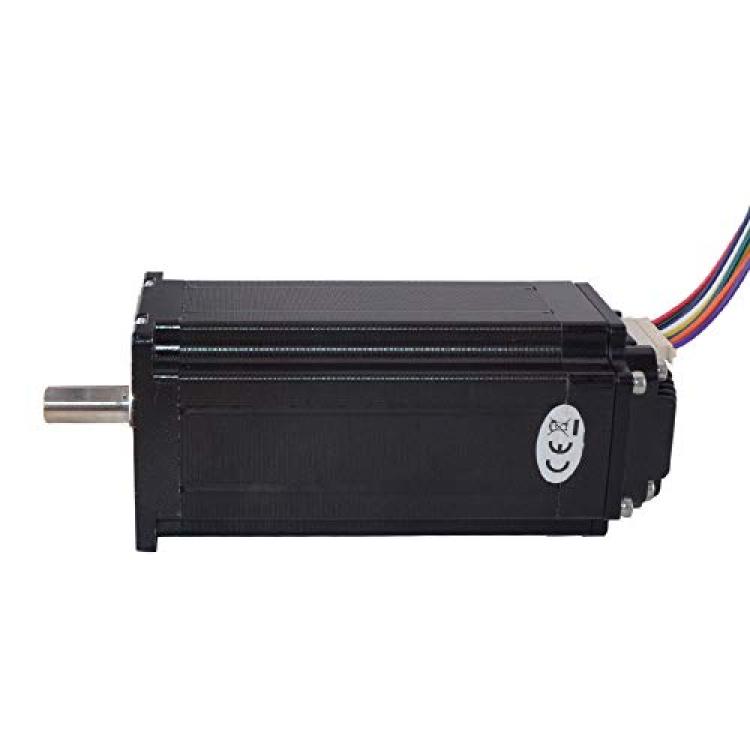

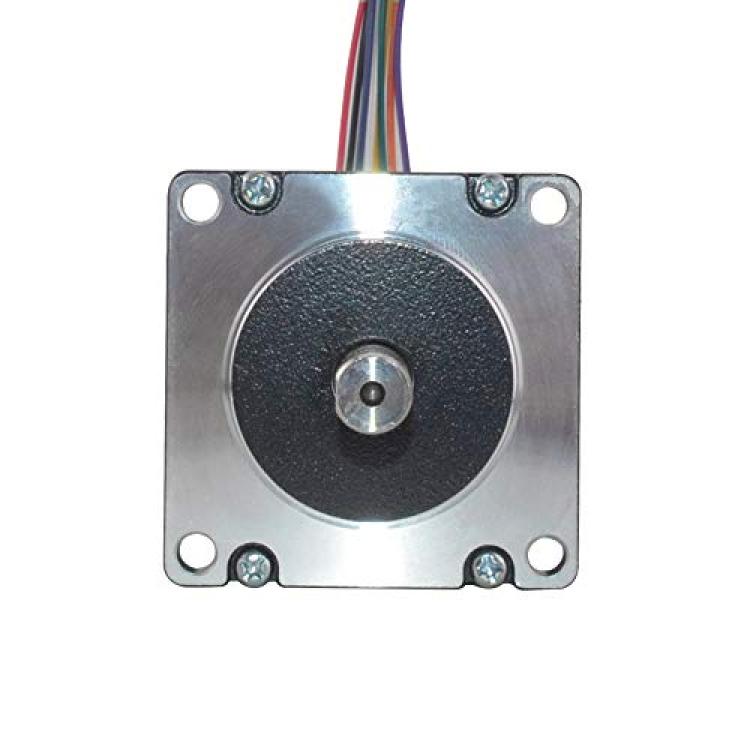

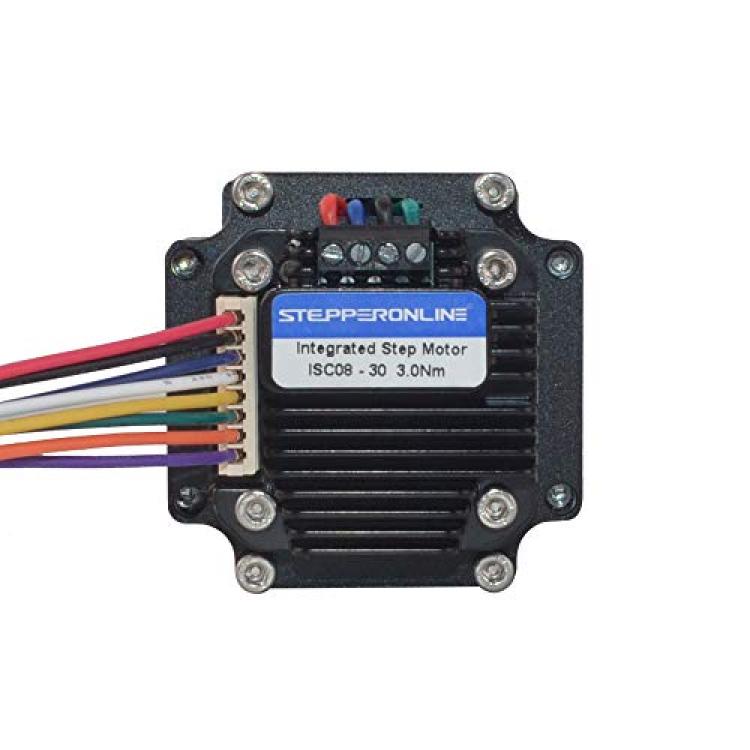

STEPPERONLINE Nema 23 Integrated Stepper Motor 300 Ncm(425oz.in) with Stepper Controller ISC08 12-38VDC
Availability: Pre-Order, Inquiry Price
About this product
*High Torque, with miniature stepper motor controller
*300 Ncm(425oz.in) holding torque
*NEMA 23 bipolar 57x57x133 mm 4-wire
*Driver: Output Peak Current: 0 - 8 A, Input Voltage: 12 - 38 VDC
*Motor: Rated current 4.2A & resistance 0.9ohms
Description
Electrical Specifications:
*Manufacturer Part Number: ISC08-30
*Step Angle: 1.8 deg
*Holding Torque: 300 Ncm(425oz.in)
*Rated Current/phase: 4.2 A
*Phase Resistance: 0.9 ohms
*Inductance: 3.8 mH ± 20%(1KHz)
Physical Specifications:
*Frame Size: 57 x 57 mm
*Body Length: 133 mm
*Shaft Diameter: ?10 mm
* Shaft Length: 24 mm
* Weight: 1750 g
Driver Specifications:
*Output Peak Current: 0 - 8 A
*Input Voltage: 12 - 38 VDC
*Speed control through external potentiometer 0. 75 - 1250 RPM
*Isolation Resistance: More than 100 M?
*Dielectric strength: 500VAC for 1MIN.
Connection
*V+: Red, GND: Black, ENA: Blue, ON:White, H/L:Yellow, DIR: Green, Vr: Orange, SPD: Purple
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
