Ximimark 2Pcs BTS7960 Stepper Motor Driver Module High Power H-Bridge PWM Driver Board 43A Current Limit Control Module For Arduino Smart Car
About this product
*5V isolate with MCU, and effectively protect MCU;isolation chip 5 V power supply (can share with MCU 5 V).

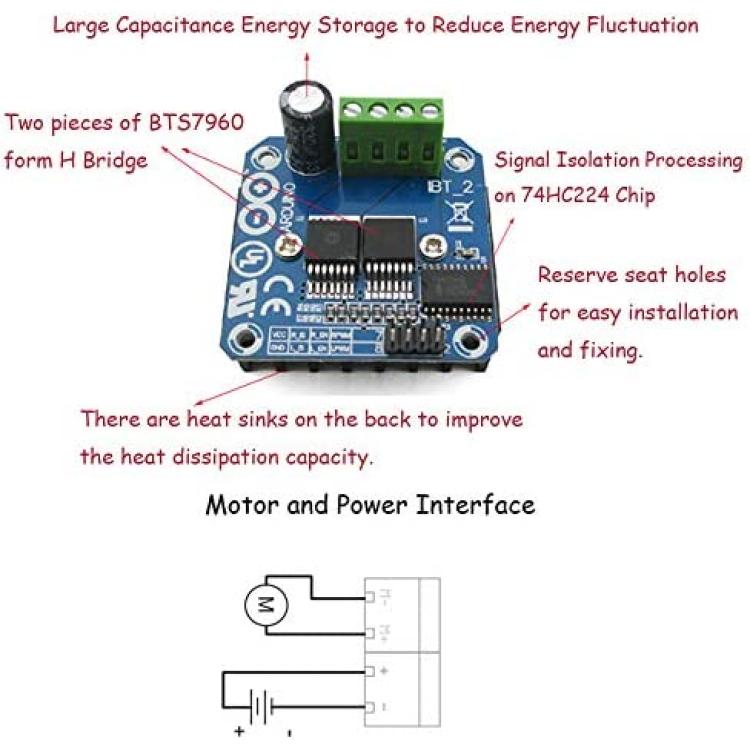

*5V power indicator on board;voltage indication of motor driver output end.Can solder heat sink.

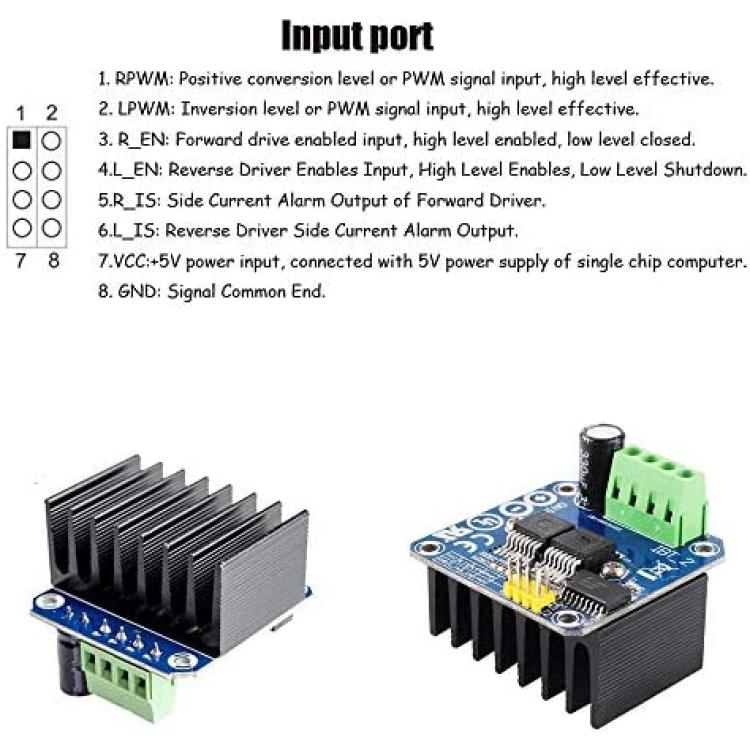

*Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2).
*Able to reverse the motor forward, two PWM input frequency up to 25kHZ.
*two heat flow passing through an error signal output.
Description
Specifications:
Size: 4 * 5 * 1.2 cm
Maximum current: 43A
the supply voltage:6V-27V
Input level: 3.3V-5V
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

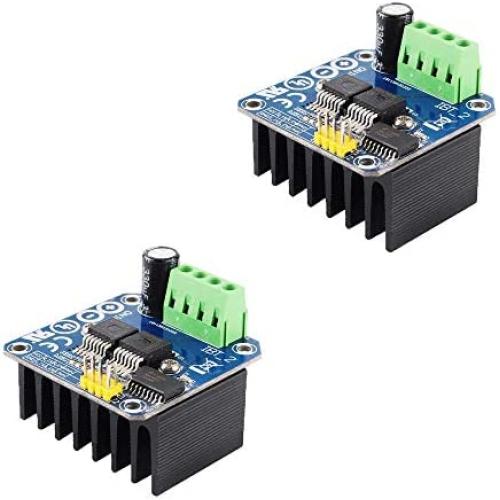

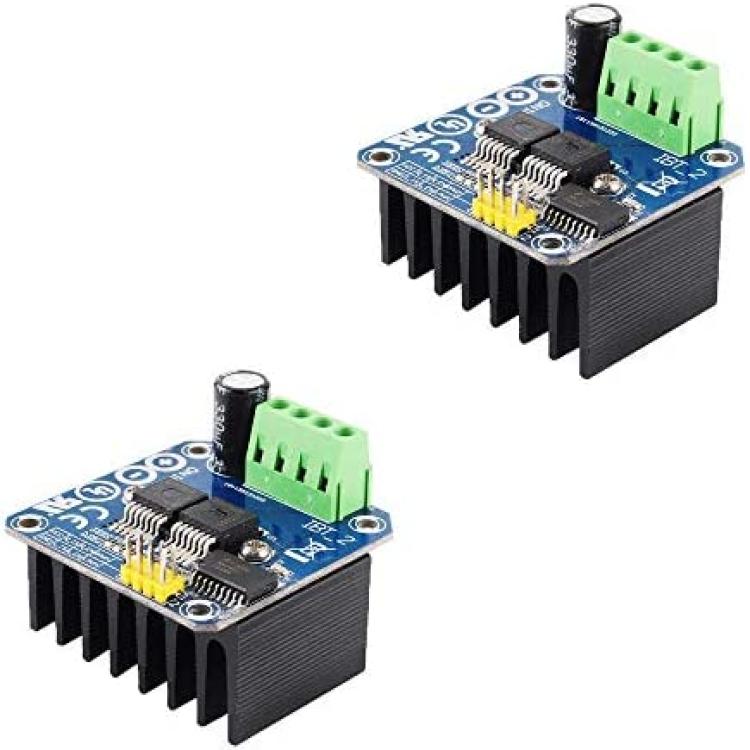

Package Includes: 2Pcs
