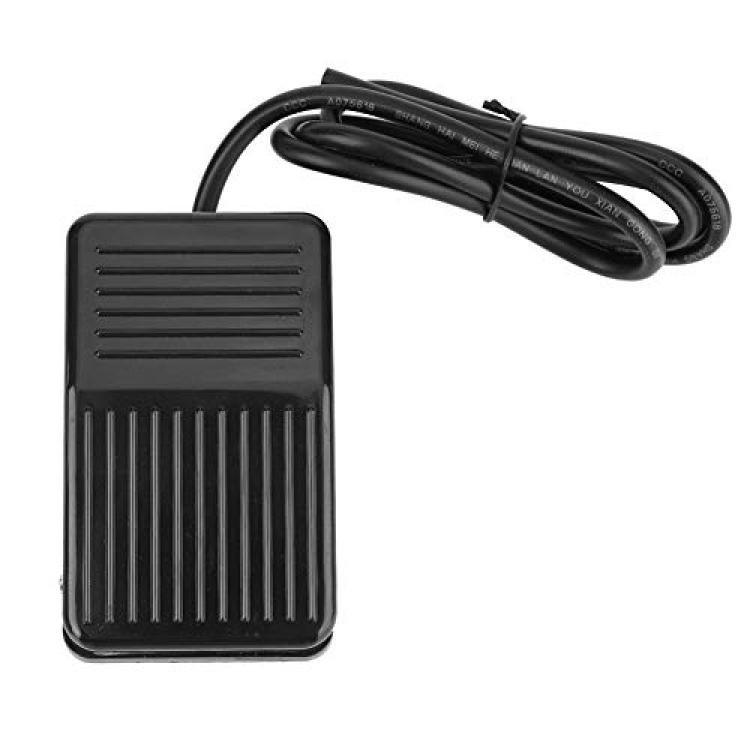

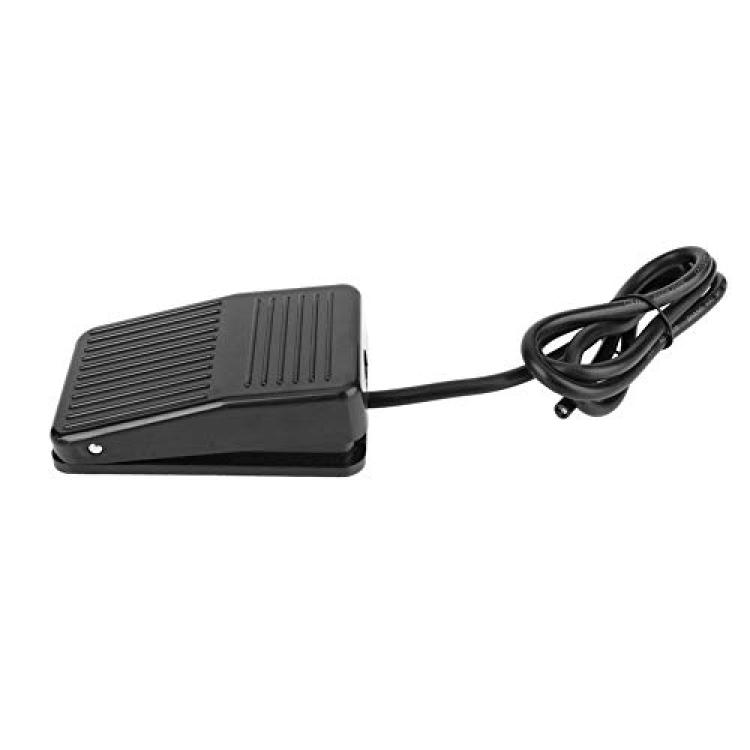

Foot Switch, 250V AC 10A Momentary Foot Pedal Controller Foot Operated On Off Switch Anti Slip Foot Pedal Switch for Table Drill Instrument Machine Tool(1M Cable)

Features:

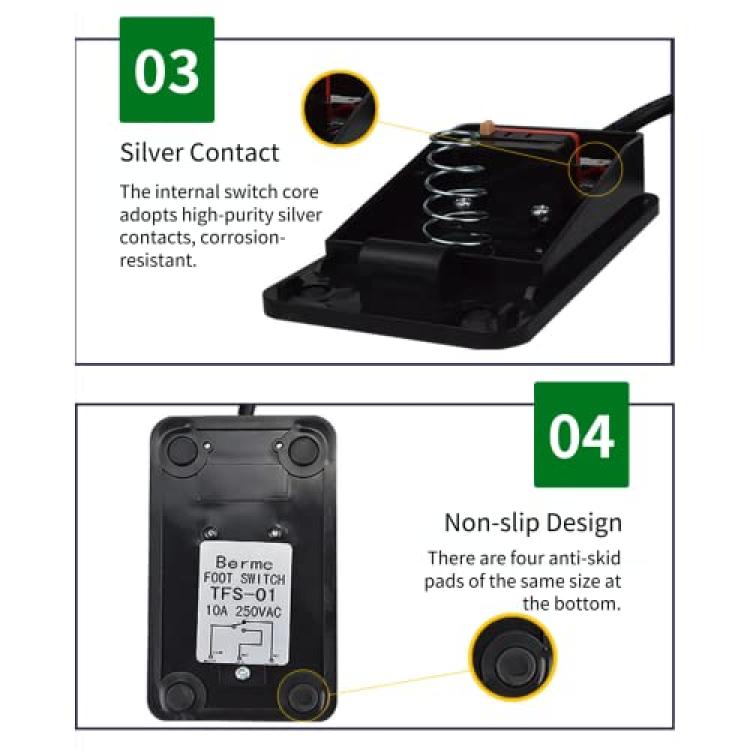

Used to frequently switch on and off on-load circuits. According to the equipped trip switch, it can be customized with contact self-locking function, the contact is locked by operating pedal, and the contact is unlocked by the second operating pedal to achieve the alternating or start/ stop operation mode of OFF-ON-OFF. The anti-slip design of the pedal makes the operation more effective, convenient and safe. Adopt double silicon rubber gasket, make waterproof grade can reach IP67, thus guarantee high reliability and safety, adopt limit switch action way to realize high reliability. The limiter adopts adjustable mechanical memory structure with reliable performance and high sensitivity. It is mainly used to control the reverse, direct and stop operation of the motor in the control loop. It can also be used for the direct control of the small motor in the main loop. Suitable for table drill, instrument machine tool, power machine, shearing machine, hydraulic press, medical device, etc.

Specification:
Model: TFS - 01
Color: black
Wiring length: 1m / 3.3ft, 2m / 6.6ft (Optional)
Working voltage: 250VAC
Rated voltage:250 (VAC)
Rated current:10 (A)

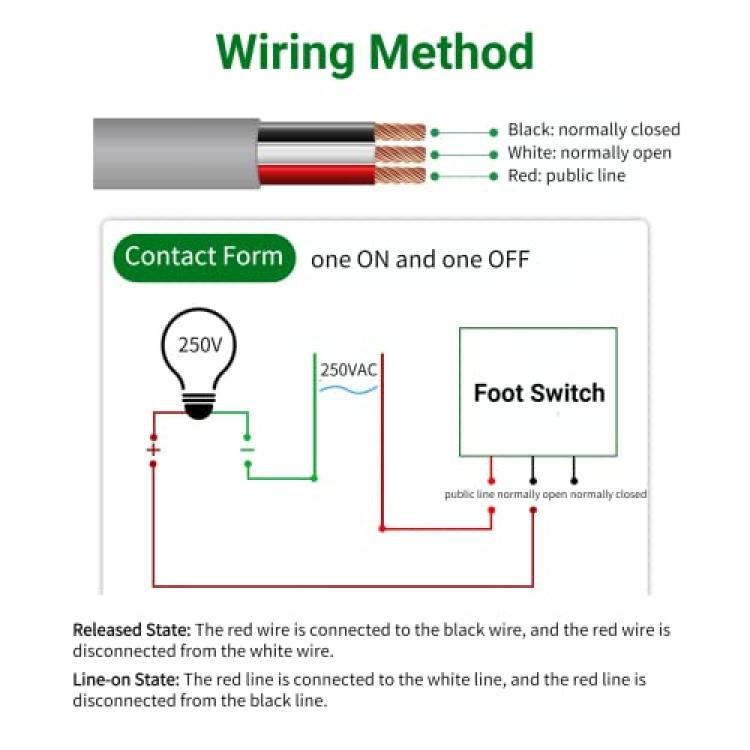

Contact form: one ON and one OFF

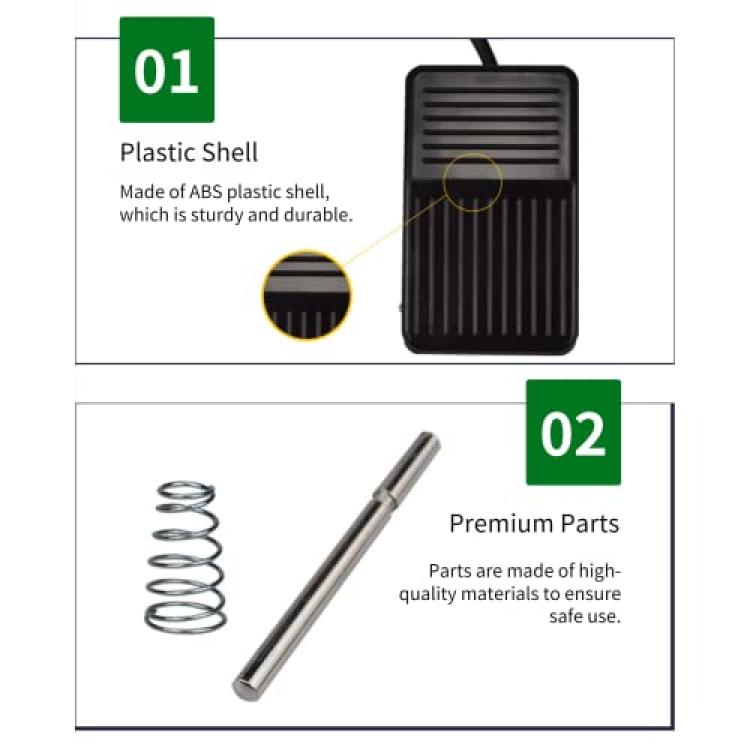

Shell material: plastic shell
Scope of application: control

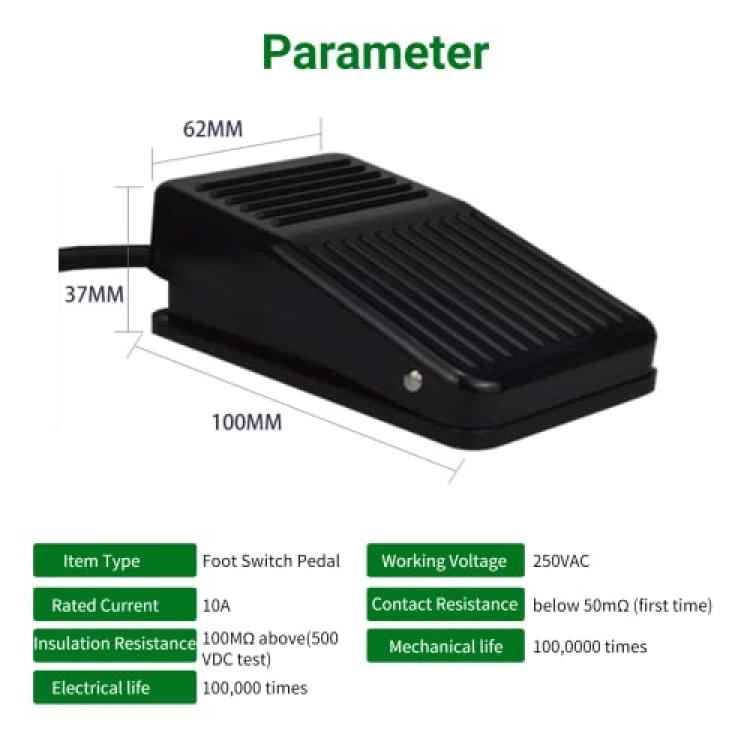

Foot switch pedal size: 100 * 60 * 33mm / 3.9 * 2.4 * 1.3in
Contact resistance: below 50m? (first time)
Insulation resistance: 100M? above, 500 VDC test
Medium withstand voltage: 2000V AC, 1 minute time
Mechanical life: 100,0000 times
Electrical life: 100,000 times
Environment temperature: -250? ~ + 700? (no condensation dew, no icing)
Environmental humidity: 45% ~ 85% RH

Package List:
1 x Foot Control Switch
