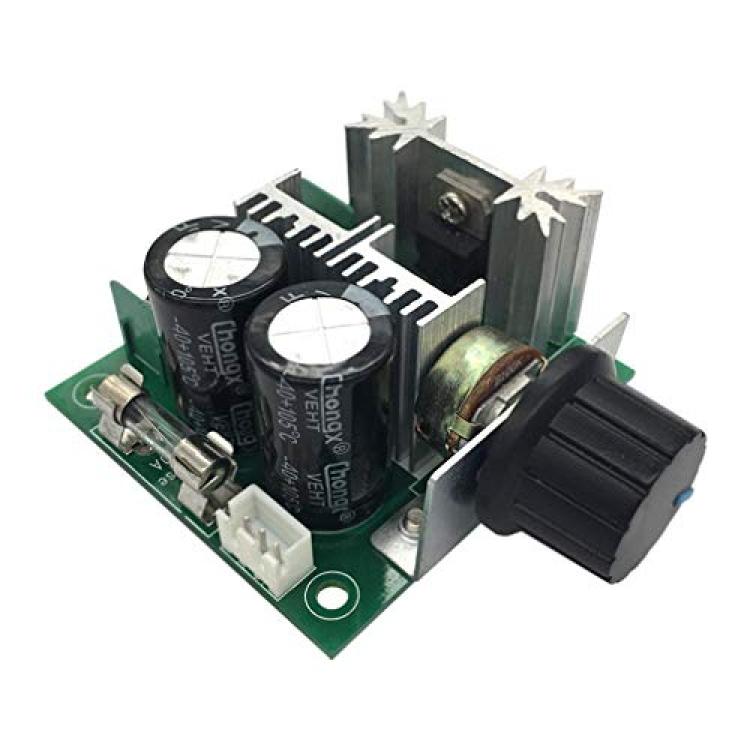

2 Pack 12V~40V 10A PWM DC Motor Speed Control Switch Controller Voltage Regulator Dimmer for Arduino
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 5.67 x 4.61 x 1.65 inches; 4.97 Ounces
*Date First Available : November 6, 2021
*Manufacturer : Azuocn
Description
Specification:
Input supply voltage: DC 12V-40V
The maximum output power: 400W
The maximum continuous output current :8A
The overload and short circuit protecting current is 10A
Static Current:0.02 A ( Standby )
PWM frequency: 13kHz
Duty Cycle adjustable: 10%-100%
The operation environment temperature:-20?-125?
Features:
Control the speed of a DC motor with this controller
High efficiency, high torque, low heat generating
With reverse polarity protection, high current protection

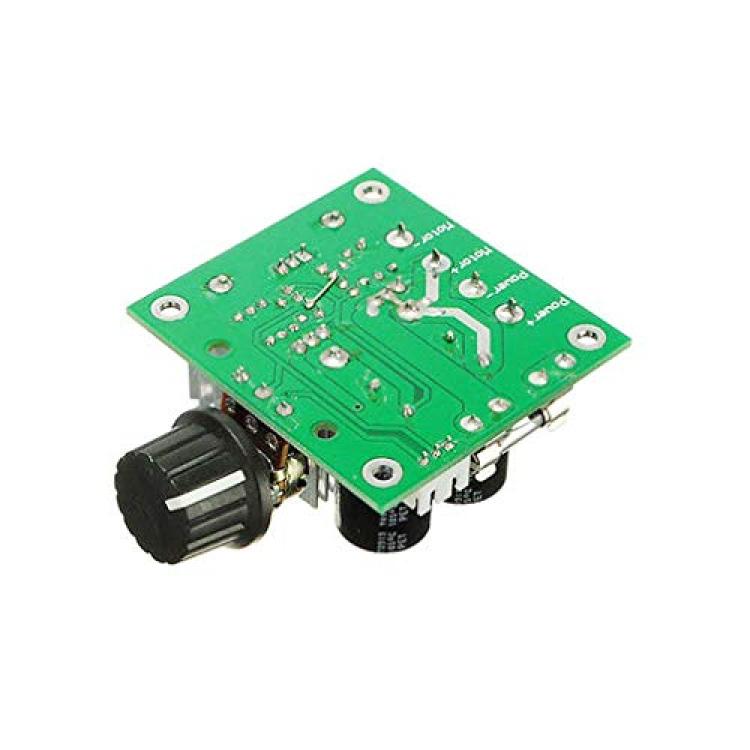

From left to right they are Motor-, Motor+, Power-, Power+
Package Included?

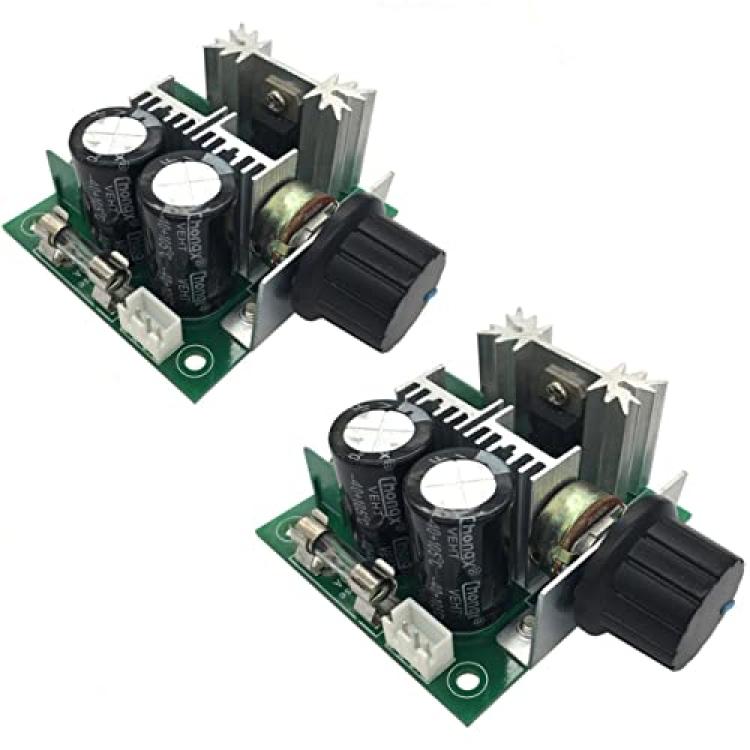

2*12V-40V 10A PWM DC Motor Speed Controlle
